Industrial Automation Products

FESTO • RKD265640

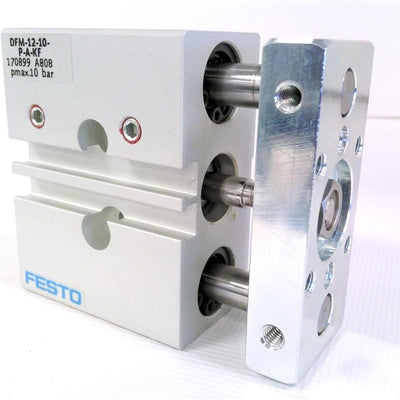

DFM-12-10-P-A-KF
GUIDED ACTUATOR
DOUBLE ACTING
10 MM STROKE
12 MM PISTON DIAMETER
2-10 BAR OPERATING PRESSURE
0.8 M/S MAX SPEED
M5 PNEUMATIC CONNECTION

FESTO • RKD135889

DFM-12-100-B-P-A-GF
GUIDED ACTUATOR
2-10BAR
YOKE DRIVE UNIT
DOUBLE ACTING
12MM PISTON
100MM STROKE
PLAIN BEARING GUIDE
M5 PNEUMATIC CONNECTION

FESTO • SSUK17994

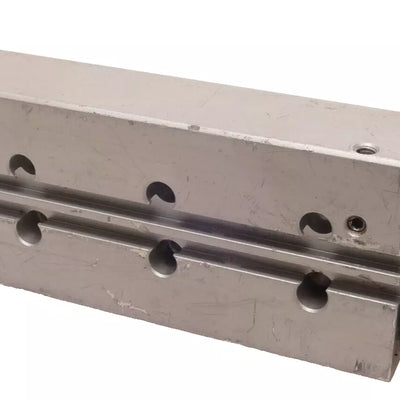

DFM-12-100-P-A-GF
GUIDED ACTUATOR
100 MM STROKE
12 MM PISTON DIAMETER
2 TO 10 BAR
0.8 M/S MAX SPEED
DOUBLE ACTING
COMPRESSED AIR
M5 CONNECTION
YOKE OPERATING MODE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
-20 TO +80 DEGREE C
170831

FESTO • RKD70200

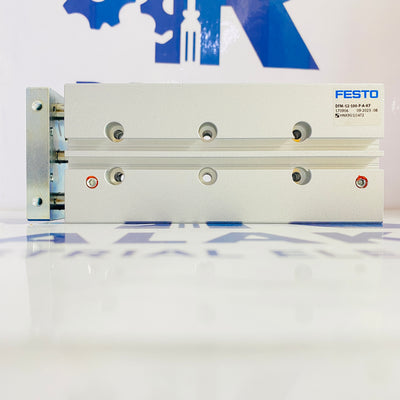

DFM-12-100-P-A-KF
GUIDED ACTUATOR
DFM SERIES
100 MM STROKE
12 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
170906

FESTO • RKD217007

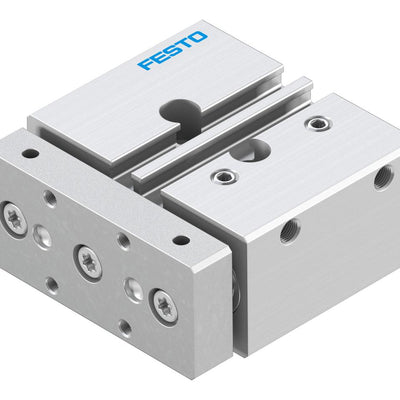

DFM-12-125-B-P-A-GF
PNEUMATIC CYLINDER
GUIDED DRIVE
DOUBLE-ACTING
12 MM PISTON DIAMETER
125 MM STROKE
FUNCTION-OPTIMISED
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES
FOR PROXIMITY SENSOR
PLAIN BEARING

FESTO • RKD265643

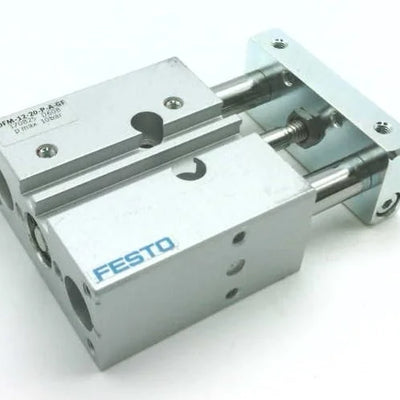

DFM-12-20-P-A-GF
GUIDED DRIVE CYLINDER
DFM SERIES
12 MM BORE
20 MM STROKE
DOUBLE ACTING
YOKE OPERATING MODE
M5 CONNECTION
COMPRESSED AIR
ELASTIC CUSHIONING RINGS/PLATES AT BOTH ENDS
-20 TO +80 DEGREE C
170825

FESTO • RKD135894

DFM-12-20-P-A-KF
DRIVE
GUIDED
DUAL ROD
FM SERIES
12MM BORE
20MM STROKE

FESTO • RKD70203

DFM-12-200-B-P-A-GF
GUIDED DRIVE
PISTON DIAMETER 12MM
STROKE 200MM
B SERIES
ELASTIC CUSHIONING RING/PLATES AT BOTH ENDS
POSITION SENSING VIA PROXIMITY SWITCH
PLAIN-BEARING GUIDE
P MAX 10BAR
M5 PNEUMATIC CONNECTION
529119

FESTO • RKD247772

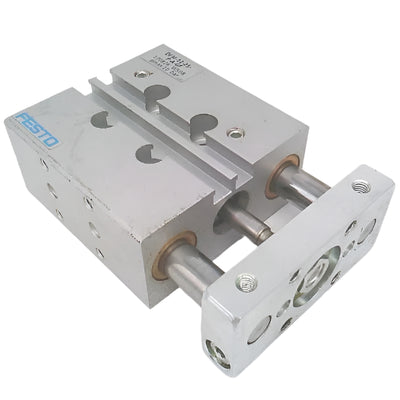

DFM-12-25-P-A-GF
GUIDED ACTUATOR
SERIES DFM
25 MM STROKE
12 MM PISTON DIAMETER
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
(170826)

FESTO • RKD217009

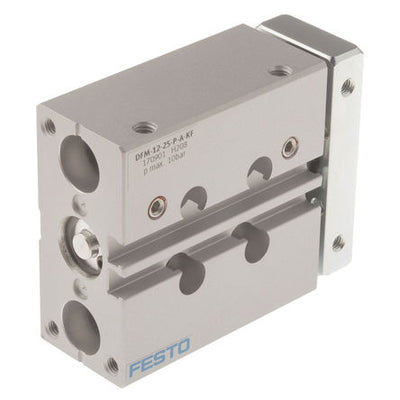

DFM-12-25-P-A-KF
GUIDED DRIVE
25 MM STROKE
DOUBLE-ACTING
2-10 BAR
-5C - 60C
WROUGHT ALUMINUM ALLOY HOUSING

FESTO • RKD280866

DFM-12-30-B-P-A-GF
GUIDED ACTUATOR
SERIES DFM
12 MM BORE
30 MM STROKE
FUNCTION-OPTIMIZED
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES
PLAIN BEARING
2-10 BAR
M5 CONNECTION
(529119)

FESTO • RKD249108

DFM-12-30-B-P-A-KF
PNEUMATIC SLIDE 12MM DUAL BORE 30MM STROKE

FESTO • RKD258513

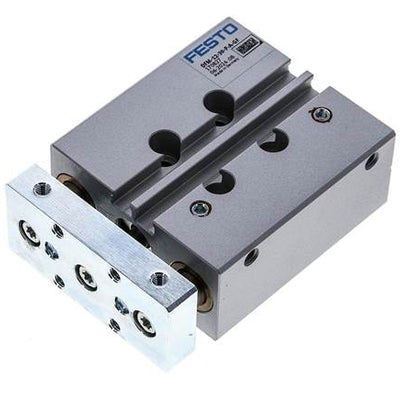

DFM-12-30-P-A-GF
PNEUMATIC GUIDED MINI-CYLINDER
DFM SERIES
DOUBLE-ACTING
12 MM PISTON
30MM STROKE
2-10 BAR OPERATING PRESSURE

FESTO • MDJDUK1345

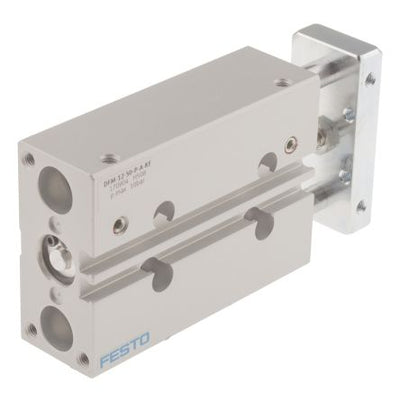

DFM-12-30-P-A-KF
GUIDED ACTUATOR
DFM SERIES
30 MM STROKE
12 MM BORE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING
(170902)

FESTO • RKD265646

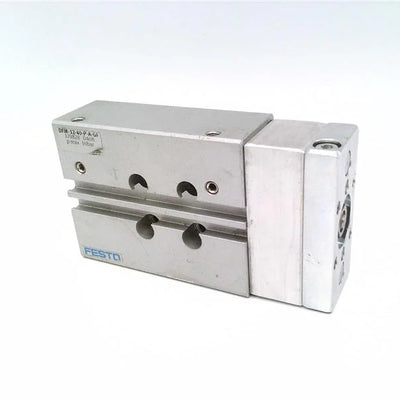

DFM-12-40-P-A-GF
GUIDED DRIVE
DOUBLE-ACTING
12 MM PISTON
40 MM STROKE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
PLAN-BEARING GUIDE

FESTO • RKD258516

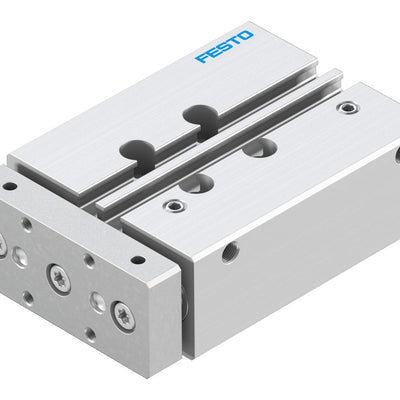

DFM-12-40-P-A-KF
GUIDED ACTUATOR
SLIDING GUIDE
DOUBLE-ACTING
STROKE 40 MM
PISTON DIAMETER 12 MM
2 TO 10 BAR
-5 TO +60 DEGREE C

FESTO • RKD258519

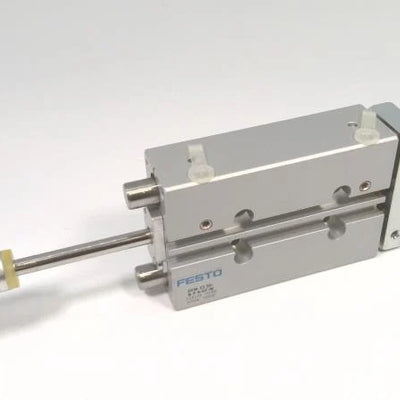

DFM-12-50-B-P-A-GF-AJ
DISCONTINUED BY MANUFACTURER
GUIDED DRIVE
12MM PISTON DIAMETER
50MM STROKE
10 BAR

FESTO • RKD135897

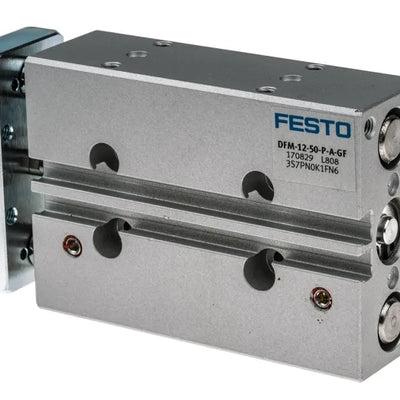

DFM-12-50-P-A-GF
GUIDED ACTUATOR
50MM STROKE
PISTON DIAMETER 12MM
SLIDING GUIDE

FESTO • RKD247781

DFM-12-50-P-A-KF
GUIDED ACTUATOR
DOUBLE-ACTING
12 MM PISTON DIAMETER
50 MM STROKE
2-10 BAR OPERATING PRESSURE
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES
(170904)

FESTO • RKD135900

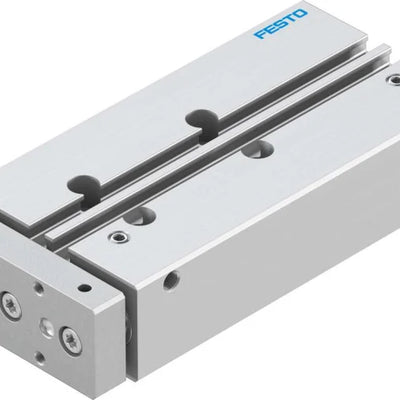

DFM-12-80-B-P-A-KF
DISCONTINUED BY MANUFACTURER
***CONFIGURABLE ITEM***
GUIDE CYLINDER DRIVE 12MM PISTON DIAMETER 80MM STK

FESTO • RKD217012

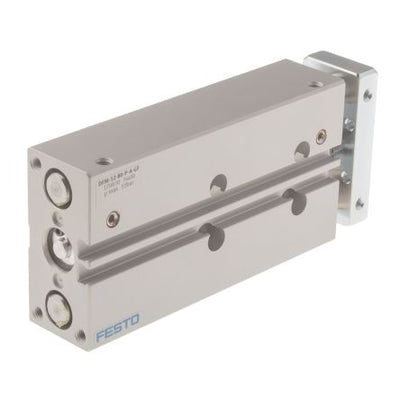

DFM-12-80-P-A-GF
GUIDED ACTUATOR
DFM SERIES
80 MM STROKE
12 MM BORE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
NBR SEALS
WROUGHT ALUMINUM ALLOY HOUSING
(170830)

FESTO • RKD265649

DFM-12-80-P-A-KF
GUIDED ACTUATOR
DFM SERIES
80 MM STROKE
12 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
NBR SEALS
170905

FESTO • RKD135903

DFM-16-10-B-P-A-KF
GUIDE CYLINDER DRIVE
16MM PISTON DIAMETER
10MM STK

FESTO • RKD70206

DFM-16-10-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
10 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8165512
