Industrial Automation Products

FESTO • RKD247784

DFM-16-10-P-A-GF
GUIDED ACTUATOR
DFM SERIES
DOUBLE ACTING
PISTON DIAMETER: 16MM
STROKE: 10 MM
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES
FOR PROXIMITY SENSOR
PLAIN BEARING
170832

FESTO • RKD265652

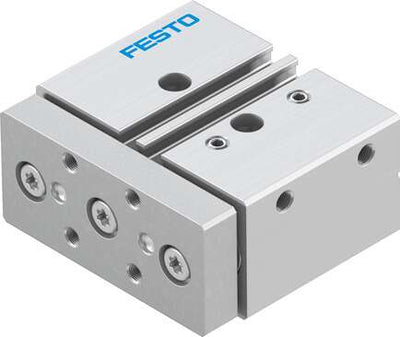

DFM-16-10-P-A-KF
GUIDED ACTUATOR
SERIES DFM
10 MM STROKE
16 MM BORE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
RECIRCULATING BALL BEARING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
(170907)

FESTO • RKD258522

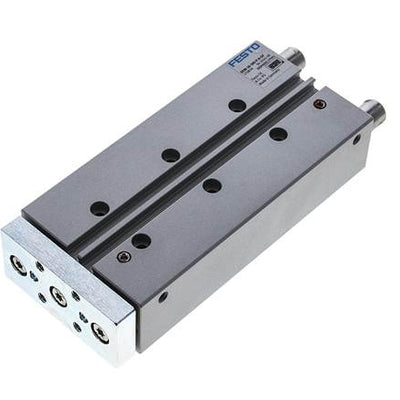

DFM-16-100-P-A-GF
GUIDED ACTUATOR
DFM SERIES
100 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
170839

FESTO • RKD258525

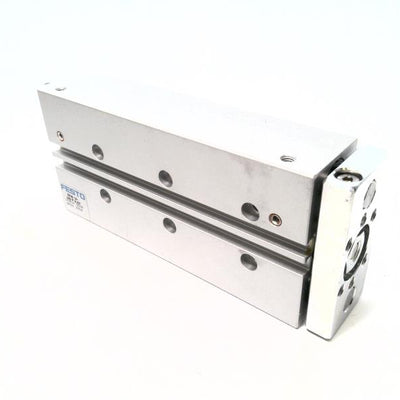

DFM-16-100-P-A-KF
GUIDED ACTUATOR
DFM SERIES
100 MM STROKE
16 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
170914

FESTO • RKD247787

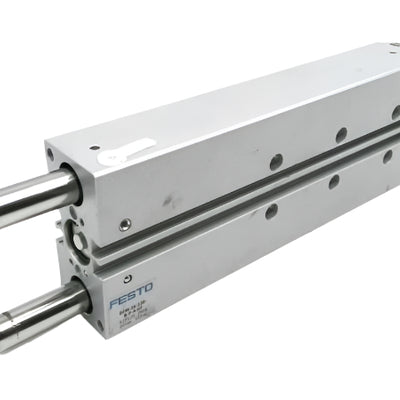

DFM-16-120-B-P-A-GF
DISCONTINUED BY MANUFACTURER
GUIDED DRIVE
DUAL ROD
10 BAR MAX

FESTO • RKD280869

DFM-16-125-B-P-A-GF
PNEUMATIC CYLINDER
GUIDED DRIVE
DOUBLE-ACTING
16MM BORE
125MM STROKE
FUNCTION-OPTIMISED
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES

FESTO • RKD247790

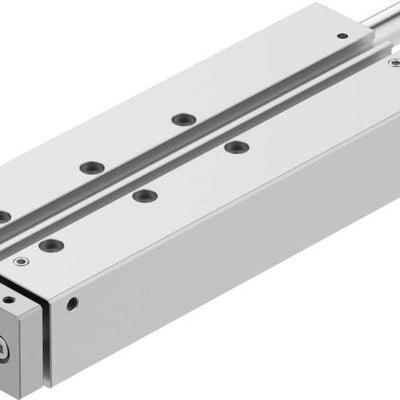

DFM-16-125-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
125 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8162435

FESTO • RKD70212

DFM-16-20-B-PPV-A-GF
GUIDED DRIVE
MAX 10 BAR

FESTO • PSGUS4968

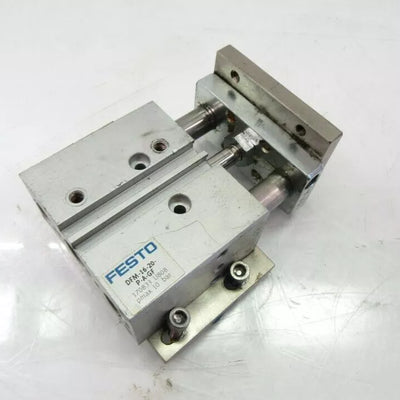

DFM-16-20-P-A-GF
GUIDED DRIVE
50 MM CENTER OF GRAVITY DISTANCE
20 MM STROKE
16 MM PISTON DIAMETER
YOKE OPERATING MODE
PLAIN-BERAING GUIDE
.8 M/S MAX SPEED
M5 PNEUMATIC CONNECTION

FESTO • RKD265658

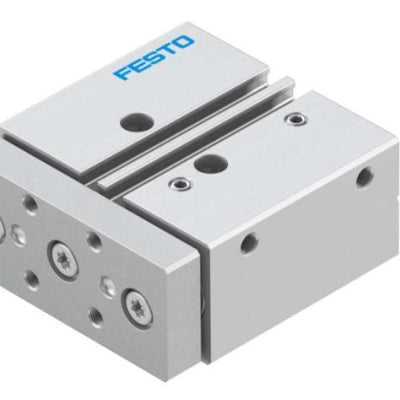

DFM-16-20-P-A-KF
GUIDED ACTUATOR
20 MM STROKE
16 MM PISTON DIAMETER
DOUBLE-ACTING
YOKE OPERATING
2 TO 10 BAR
-5 TO +60 DEGREES C
(170908)

FESTO • RKD249111

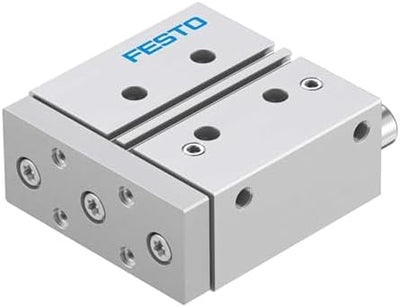

DFM-16-200-B-PPV-A-KF
PNEUMATIC CYLINDER 200MM FLAT

FESTO • RKD280872

DFM-16-25-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
25 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8162430

FESTO • RKD217015

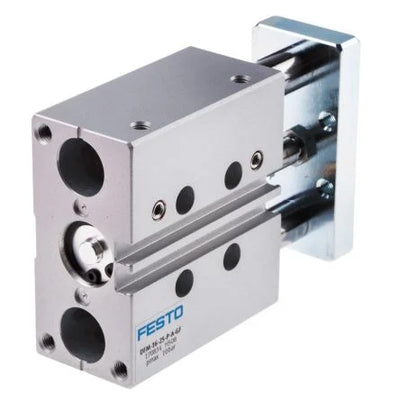

DFM-16-25-P-A-GF
GUIDED ACTUATOR
DFM SERIES
25 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
0.8 M/S MAX. SPEED
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
170834

FESTO • RKD258528

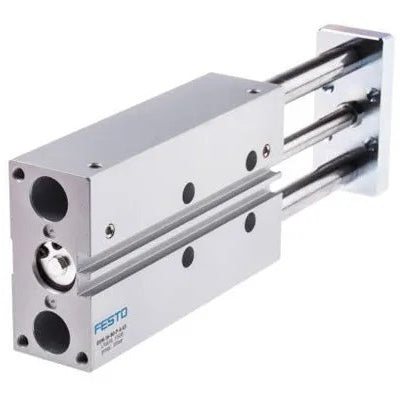

DFM-16-25-P-A-KF
ACTUATOR
DFM SERIES
DOUBLE ACTING
16 MM BORE
25 MM STROKE
10 BAR MAX OPERATING PRESSURE
M5 PORT SIZE
GUIDED TYPE

FESTO • RKD249114

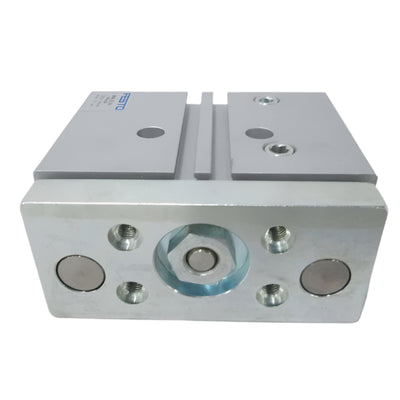

DFM-16-30-P-A-GF
GUIDED ACTUATOR
DFM SERIES
30 MM STROKE
16 MM PISTON DIAMETER
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
170835

FESTO • RKD70215

DFM-16-30-P-A-KF
PNEUMATIC GUIDED CYLINDER
30 MM STROKE
16 MM PISTON
2-10 BAR
DOUBLE ACTING
M5 CONNECTION
COMPRESSED AIR
ELASTIC CUSHIONING RINGS/PLATES AT BOTH ENDS
-5 TO +60 DEGREE C
170910

FESTO • RKD265661

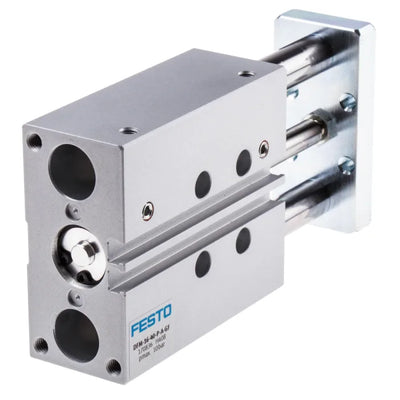

DFM-16-40-P-A-GF
GUIDED DRIVE
DUAL ROD
16 MM BORE
40 MM STROKE
10 BAR PMAX
0.8 M/S MAX SPEED
PLAIN-BEARING GUIDE
FLEXIBLE CUSHION RINGS/PLATES AT BOTH ENDS
WROUGHT ALUMINUM ALLOY MATERIAL
170836

FESTO • RKD135909

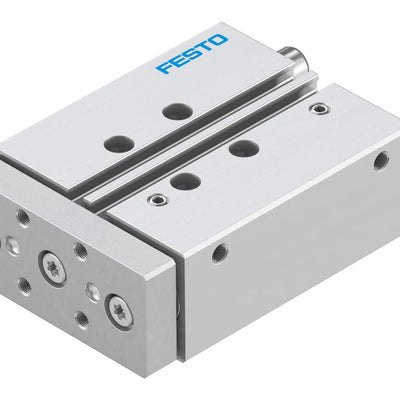

DFM-16-40-P-A-KF
GUIDED DRIVE
ACTUATOR
16 MM PISTON DIAMETER
40 MM SROKE
FLEXIBLE CUSHION ON BOTH SIDES
RECIRCULATING BALL BEARING GUIDE
(170911)

FESTO • RKD265664

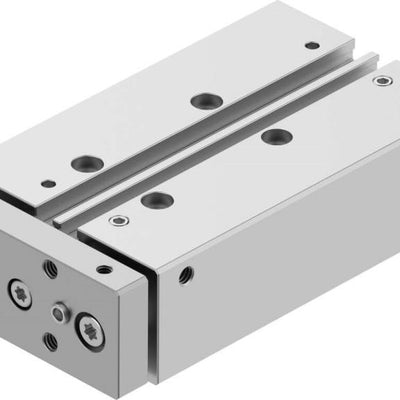

DFM-16-50-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
50 MM STROKE
16 MM PISTON DIAMETER
SLIDING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8162433

FESTO • RKD249116

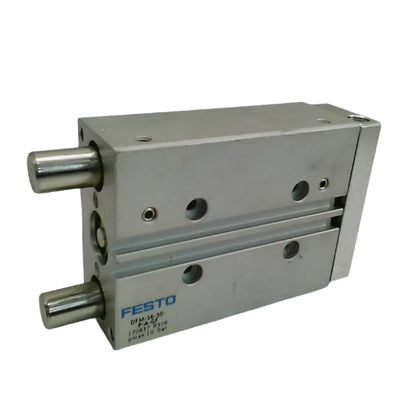

DFM-16-50-P-A-GF
GUIDED DRIVE
DUAL ROD
AIR CYLINDER
DFM SERIES
50 MM STROKE LENGTH
16MM
M5 CONNECTION METHOD
DOUBLE ACTING

FESTO • RKD135912

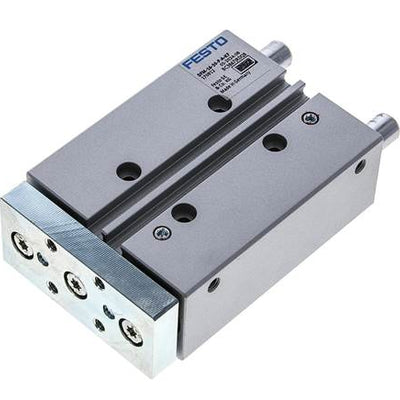

DFM-16-50-P-A-KF
PNEUMATIC GUIDED CYLINDER
DOUBLE-ACTING PNEUMATIC CYLINDER
PISTON DIAMETER 16
50 MM STROKE
ELASTIC CUSHIONING RINGS/PLATES ON BOTH SIDES
170912

FESTO • RKD135915

DFM-16-60-B-P-A-KF
GUIDED ACTUATOR
DFM-16 SERIES
16 MM PISTON DIAMETER
60 MM STROKE
2-10 BAR OPERATING PRESSURE
DOUBLE ACTING
YOKE

FESTO • RKD280875

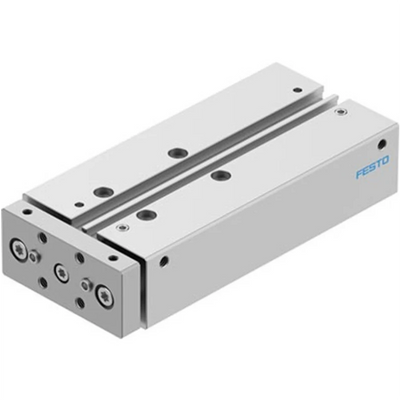

DFM-16-80-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
80 MM STROKE
16 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
2-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
M5 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
559463

FESTO • RKD258531

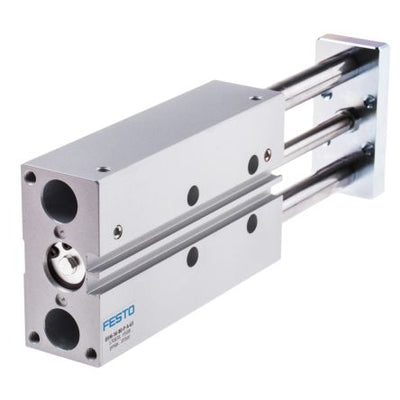

DFM-16-80-P-A-GF
GUIDED DRIVE CYLINDER
DFM SERIES
16 MM BORE
80 MM STROKE
DOUBLE ACTING
(170838)
