Industrial Automation Products

BECKHOFF • RKD1432489

ES4134
4-CHANNEL-ANALOG-OUTPUT-TERMINAL -10 V...+10 V
15 BITBUS TERMINAL WITH PLUGGABLE WIRING(THE PLUG IS CONTAINED IN THE PRICE)

BECKHOFF • RKD1398858

ES5002
2-CHANNEL SSI ENCODER INTERFACEBUS TERMINAL WITH PLUGGABLE WIRING(THE PLUG IS CONTAINED IN THE PRICE)

BECKHOFF • RKD1432492

ES5101
ETHERCAT TERMINAL
1 CHANNEL
INCREMENTAL ENCODER INTERFACE
0.5 AMP
5 VDC
(DIFF RS422 - TTL)
1/256 BIT MICROINCREMENTS RESOLUTION
-25 TO +60 DEGREES C
IP20

BECKHOFF • RKD2365337

ES5151
ETHERCAT TERMINAL
1 CHANNEL
INCREMENTAL ENCODER INTERFACE
24 VDC
100 MA + LOAD
100 KHZ
-25 TO +60 DEGREES C
IP20

BECKHOFF • RKD48769

ES6001
ETHERCAT TERMINAL
1-CHANNEL
COMMUNICATION INTERFACE
500 V
120 MA
RS232 INTERFACE
-25 TO +60 DEGREES C
IP20

BECKHOFF • RKD48795

ES7041
ETHERCAT TERMINAL
1-CHANNEL MOTION INTERFACE
STEPPER MOTOR
48
V
DC
5
A
WITH INCREMENTAL ENCODER

BECKHOFF • RKD1513368

ES7332
2-CHANNEL DC MOTOR OUTPUT STAGE 24 V DC
1 ABUS TERMINAL WITH PLUGGABLE WIRING(THE PLUG IS CONTAINED IN THE PRICE)

BECKHOFF • RKD48825

ES9100
POTENTIAL FEED TERMINAL
24 V DC
POWER LED
12 MM HOUSING WIDTH

BECKHOFF • RKD1398884

ES9185
POTENTIAL DISTRIBUTION TERMINAL WITH 4 CLAMPS PER POWER CONTACTBUS TERMINAL WITH PLUGGABLE WIRING(THE PLUG IS CONTAINED IN THE PRICE)

BECKHOFF • RKD1432495

ES9400
POWER SUPPLY TERMINAL
FOR E-BUS
24 VDC
2 AMP
BUS TERMINAL WITH PLUGGABLE WIRING
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD48857

ES9410
POWER SUPPLY TERMINAL
FOR E-BUS
24 VDC
2 AMP
WITH DIAGNOSTICS
BUS TERMINAL WITH PLUGGABLE WIRING
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD48890

ES9505
POWER SUPPLY UNIT TERMINAL 24 V DC
OUTPUT 5 V DC
0.5 ABUS TERMINAL WITH PLUGGABLE WIRING(THE PLUG IS CONTAINED IN THE PRICE)

BECKHOFF • RKD1513397

ET1100-0000-0001
ETHERCAT ASICS
BGA128
10 X 10 MM
PRICE FOR 10 PIECES
PACKAGING: LOOSE
ETHERCAT DEVELOPMENT PRODUCTS

BECKHOFF • RKD490249

ET1100-0000-0050
500 UNITS ETHERCAT ASIC ET1100 (PACKAGE: STRIP)FEATURES:- 8 FMMU'
S- 8 SYNC MANAGER- 8 KBYTE RAM- DISTRIBUTED CLOCKS- PROCESS DATA INTERFACES: - 32 BIT DIGITAL IO - SPI - 8/16 BIT µ
C (INTEL)- NO OF PORTS: 4- PACKAGE: BGA128

BECKHOFF • RKD2365360

ET1100-0000-0100
1000 UNITS ETHERCAT ASIC ET1100 (PACKAGE: STRIP)FEATURES:- 8 FMMU'
S- 8 SYNC MANAGER- 8 KBYTE RAM- DISTRIBUTED CLOCKS- PROCESS DATA INTERFACES: - 32 BIT DIGITAL IO - SPI - 8/16 BIT µ
C (INTEL)- NO OF PORTS: 4- PACKAGE: BGA128

BECKHOFF • RKD1432498

ET1100-0000-0250
2500 UNITS ETHERCAT ASIC ET1100
(PACKAGE: 1 REEL)
FEATURES:- 8 FMMU'
S
8 SYNC MANAGER
8 KBYTE RAM
DISTRIBUTED CLOCKS
PROCESS DATA INTERFACES:
32 BIT DIGITAL IO
SPI - 8/16 BIT C (INTEL)
NO OF PORTS: 4
PACKAGE: BGA128

BECKHOFF • RKD2365383

ET2000
INDUSTRIAL ETHERNET MULTI-CHANNEL PROBE
8 PORTS
4 CHANNELS
100 MBITS/S PROBE PORTS
1 GBIT/S UPLINK PORT
24 (18 - 30) VDC
500 MA
VIA: 3-PIN CONNECTION (+
-
PE)

BECKHOFF • RKD490272

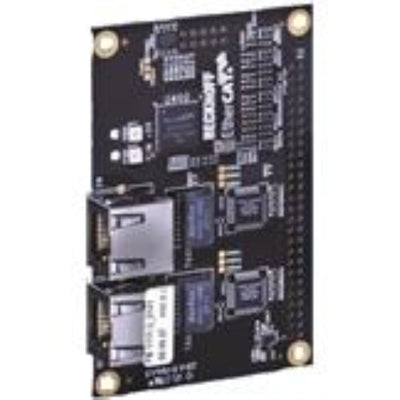

FB1111-0141
ETHERCAT PIGGYBACK CONTROLLER BOARD
WITH ET1100 AND SPI INTERFACE
CAN BE INTEGRATED AS ETHERCAT INTERFACE IN DEVICES
ETHERCAT DEVELOPMENT PRODUCTS

BECKHOFF • RKD2365406

FB1111-0142
ETHERCAT PIGGYBACK CONTROLLER BOARD WITH ET1100 AND DIGITAL I/O INTERFACE
CAN BE INTEGRATED AS ETHERCAT INTERFACE IN DEVICES
INCLUDED IN THE EL982X EVALUATION KIT.
ETHERCAT DEVELOPMENT PRODUCTS

BECKHOFF • RKD1398913

FC1100
ETHERCAT SLAVE CARD
1-CHANNEL
ETHERCAT IN AND OUT (2 X RJ45)
PCI BUS

BECKHOFF • RKD490296

FC1121
ETHERCAT CARD
1-CHANNEL
FIELDBUS CARD
8 KBYTES RAM
100 MBIT/S DATA TRANSFER RATES
2 X RJ45
ETHERCAT IN/OUT
2 LEDS PER CHANNEL
0 TO +55 DEGREES C

BECKHOFF • RKD624278

FC2001
LIGHTBUS MASTER CARD
1-CHANNEL
PCI BUS
2 X STANDARD FIBER-OPTIC CONNECTORS Z1000 / Z1010
3 LEDS PER CHANNEL
0 TO +55 DEGREES C

BECKHOFF • RKD1513420

FC2001-0000
LIGHTBUS MASTER CARD
1-CHANNEL
PCI BUS
2 X STANDARD FIBER-OPTIC CONNECTORS Z1000 / Z1010
3 LEDS PER CHANNEL
0 TO +55 DEGREES C

BECKHOFF • RKD1513443

FC2002
PC BOARD
INTERFACE CARD
LIGHTBUS PC
2-CHANNEL
PCI BUS
2.5 MBAUD
32 BIT OF PROCESS DATA IN 25 S
