Industrial Automation Products

FESTO • RKD247817

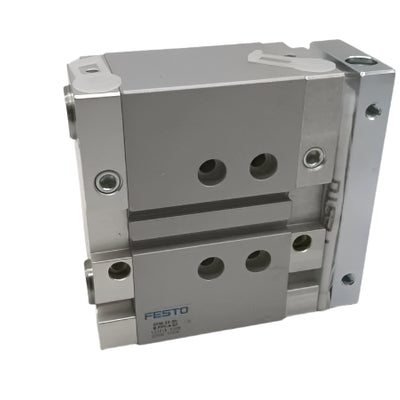

DFM-32-20-B-PPV-A-GF
DFM-B
GUIDED DRIVE

FESTO • RKD70244

DFM-32-20-B-PPV-A-KF
GUIDE DRIVE
STROKE: 20 MM
PISTON DIAMETER: 32 MM
OPERATING PRESSURE: 1.5...10 BAR
DOUBLE-ACTING
PNEUMATIC CONNECTION: G1/8
RECIRCULATING BALL BEARING GUIDE
8161432

FESTO • RKD249142

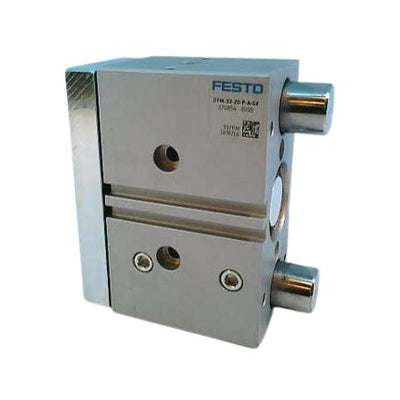

DFM-32-20-P-A-GF
PNEUMATIC CYLINDER
170854
DFM SERIES
GUIDED DRIVE
DOUBLE-ACTING
DUAL ROD
32 MM BORE SIZE
20 MM STROKE
G 1/8 PORT SIZE

FESTO • RKD249145

DFM-32-20-P-A-KF
CYLINDER
DFM SERIES
BALL GUIDE
DOUBLE ACTING
32 MM BORE
20 MM STROKE
G1/8 PNEUMATIC CONNECTOR

FESTO • RKD265702

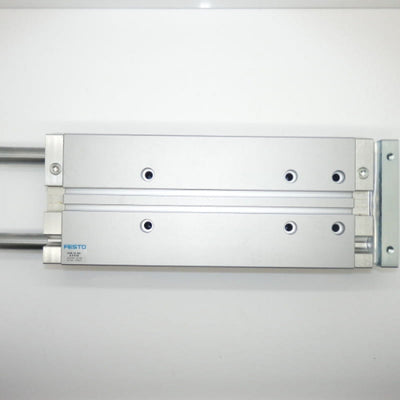

DFM-32-200-B-P-A-KF
GUIDED ACTUATOR
32 MM PISTON DIAMETER
200 MM STROKE
B SERIES
FLEXIBLE CUSHIONING RINGS / PADS ON BOTH SIDES
RECIRCULATING BALL BEARING GUIDE
POSITION SENSING FOR PROXIMITY SENSOR
532318

FESTO • RKD249136

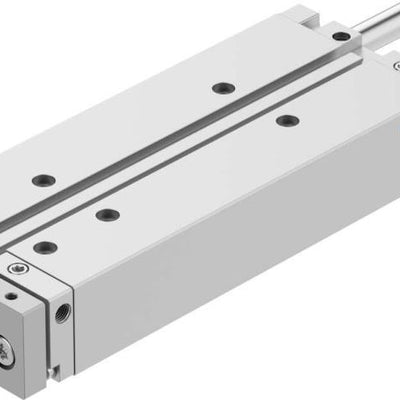

DFM-32-200-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
200 MM STROKE
32 MM PISTON DIAMETER
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
604969

FESTO • RKD258559

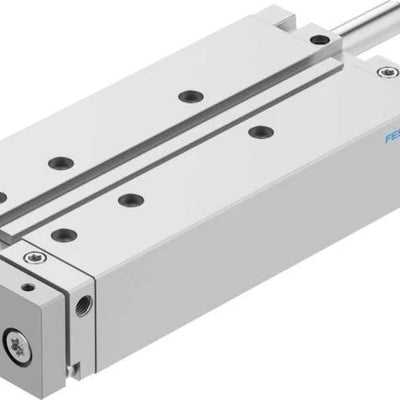

DFM-32-200-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
200 MM STROKE
32 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8161438

FESTO • RKD249139

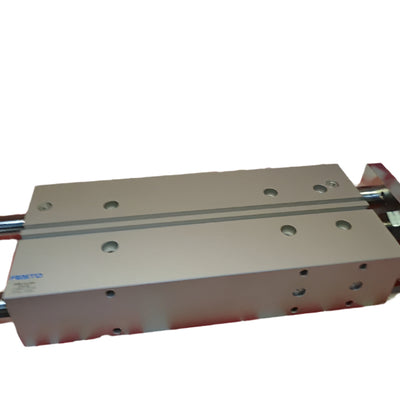

DFM-32-200-P-A-GF
GUIDED DRIVE
DOUBLE-ACTING PNEUMATIC CYLINDER
200 MM STROKE
32 MM PISTON DIAMETER

FESTO • RKD265705

DFM-32-200-P-A-KF
GUIDED ACTUATOR
PNEUMATIC
200 MM STROKE
32 MM PISTON DIAMETER

FESTO • RKD70247

DFM-32-25-B-P-A-GF
DISCONTINUED BY MANUFACTURER
GUIDED DRIVE CYLINDER
10 BAR MAX

FESTO • RKD70250

DFM-32-25-B-PPV-A-GF
GUIDED DRIVE
DFM SERIES
25 MM STROKE
32 MM PISTON DIAMETER
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
562063

FESTO • RKD280911

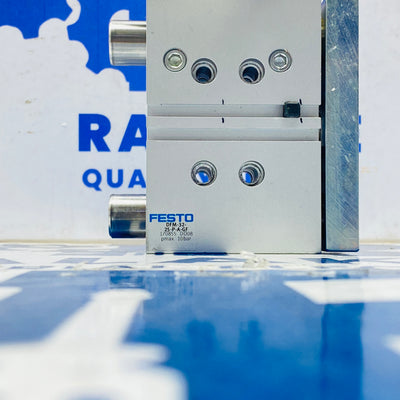

DFM-32-25-P-A-GF
GUIDED ACTUATOR
DFM SERIES
25 MM STROKE
32 MM BORE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING
(170855)

FESTO • RKD217063

DFM-32-25-P-A-KF
GUIDED DRIVE
DOUBLE-ACTING
PNEUMATIC CYLINDER

FESTO • RKD280914

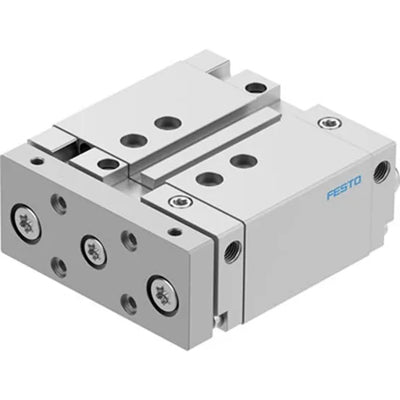

DFM-32-30-B-PPV-A-KF
GUIDED DRIVE
DFM SERIES
30 MM STROKE
32 MM PISTON DIAMETER
RECIRCULATING BALL BEARING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
8161435

FESTO • RKD70253

DFM-32-30-P-A-GF
GUIDED ACTUATOR
DUAL ROD
DOUBLE ACTING
32 MM BORE
30 MM STROKE
M5 PORT SIZE
2-10 BAR OPERATING PRESSURE
0.8 M/S MAXIMUM SPEED
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
(170856)

FESTO • RKD135941

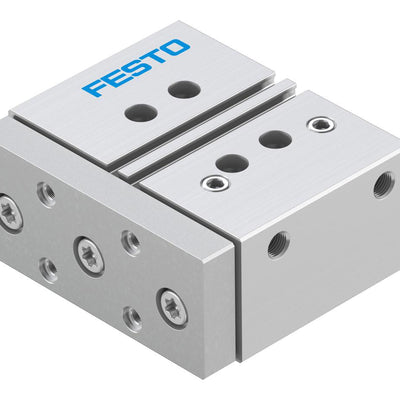

DFM-32-30-P-A-KF
GUIDED DRIVE
DOUBLE ACTING
32 MM PISTON DIAMETER
30 MM STROKE
50 MM DISTANCE FROM CENTRE OF GRAVITY OF LOAD TO YOKE PLATE XS
1.5-10 BAR OPERATING PRESSURE
0.8 M/S MAX SPEED
G1/8 CONNECTION
WROUGHT ALUMINIUM ALLOY
-5 TO +60 DEGREES C
(170931)

FESTO • RKD258562

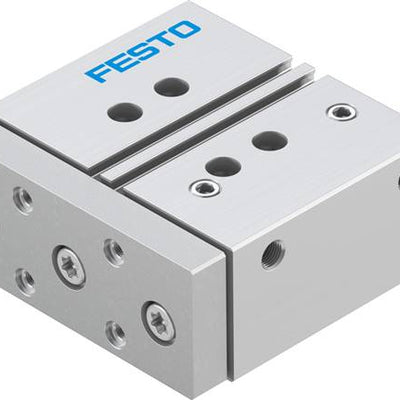

DFM-32-40-B-P-A-KF
PNEUMATIC BALL BEARING GUIDED DRIVE
32MM BORE
40MM STROKE
10 BAR

FESTO • RKD135944

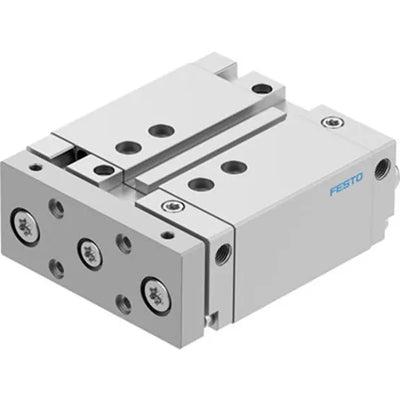

DFM-32-40-B-PPV-A-GF
GUIDED DRIVES DFM-B
WITH RECIRCULATING BALL BEARING GUIDE KF
DIAMETER 20MM
DIAMETER 32 MM
10 BAR MAX

FESTO • RKD265708

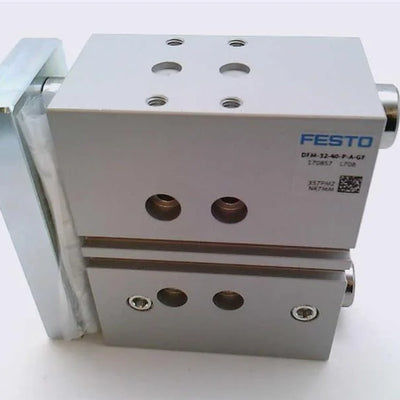

DFM-32-40-P-A-GF
GUIDED ACTUATOR
DFM SERIES
40 MM STROKE
32 MM PISTON DIAMETER
SLIDING GUIDE
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY HOUSING MATERIAL
NBR SEALS
170857

FESTO • RKD217066

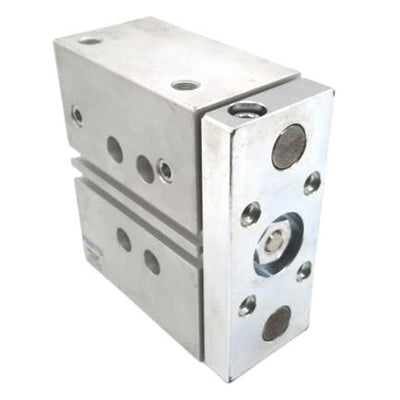

DFM-32-40-P-A-KF
GUIDED DRIVE CYLINDER
DFM SERIES
32 MM BORE
40 MM STROKE
DOUBLE ACTING
10 BAR MAX
RECIRCULATING BALL BEARING
(170932)

FESTO • RKD249148

DFM-32-50-A-KF
GUIDED ACTUATOR
50 MM DISTANCE OF CENTRE OF GRAVITY
50 MM STROKE
32 MM PISTON DIAMETER
YOKE OPERATING MODE
ELASTIC CUSHIONING RINGS
ANY MOUNTING POSITIONS
.15 MPA - 1 MPA
DOUBLE ACTING OPERATION MODE

FESTO • RKD70256

DFM-32-50-B-P-A-GF
GUIDED ACTUATOR
32 MM PISTON DIAMETER
50 MM STROKE
B SERIES
FLEXIBLE CUSHIONING RINGS / PADS ON BOTH SIDES
BEARING GUIDE
532318

FESTO • DTGEU11948

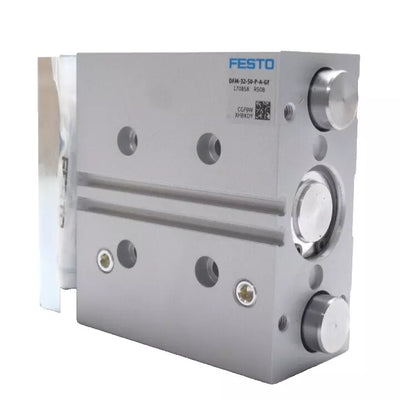

DFM-32-50-P-A-GF
GUIDED ACTUATOR
DFM SERIES
50 MM STROKE
32 MM PISTON DIAMETER
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
WROUGHT ALUMINUM ALLOY MATERIAL
NBR SEALS
170858

FESTO • RKD280917

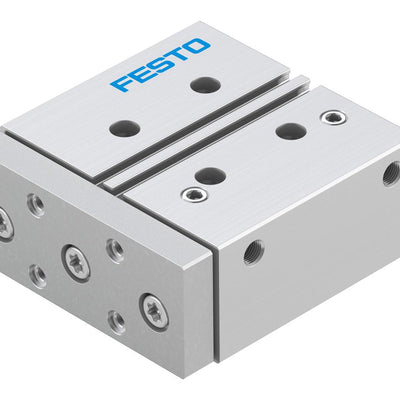

DFM-32-50-P-A-KF
PNEUMATIC ACTUATOR
SERIES DFM
50 MM STROKE
32 MM BORE
RECIRCULATING BALL BEARING GUIDE
ELASTIC CUSHIONING RINGS/PADS AT BOTH ENDS
1.5-10 BAR OPERATING PRESSURE
DOUBLE-ACTING
G1/8 PNEUMATIC CONNECTION
(170933)
