Industrial Automation Products

B&R • GMUK13405

8LSA35DB060S3003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6000 rpm stall torque: 2.300 Nm, motor with holding brake, shaft key single-cable solution, angled (swivel), centering diameter 80 mm j6 fit, self-cooling, type A construction, IP64 protection without oil seal, 560 VDC, holding torque of brake: 4.00 Nm DB 2.2 ind. 32-line multi-turn.

B&R • GMUK2315

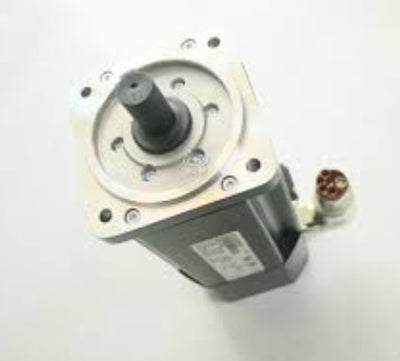

B&R
8LSA35E1030D3000
V4.0 DT (8LSA35.E1030D300-0)
Umstellung auf Samarium-Magnete Rev D0

B&R • TSUK0483

8LSA35E2030D0000
SERVO MOTOR
8LS SERIES
SYNCHRONOUS
3 PHASE
1.6 AMP
400 V
2.3 NM
3000 RPM
ENDAT SINGLE-TURN ENCODER
32 LINES
SWIVEL CONNECTOR
WITHOUT HOLDING BRAKE

B&R • TSUK1007

8LSA35EA030D0000
SERVO MOTOR
8LS SERIES
SYNCHRONOUS
THREE-PHASE
SELF-COOLING
SIZE 3
ENDAT SINGLE-TURN
3000 RPM
ANGLED SWIVEL CONNECTION

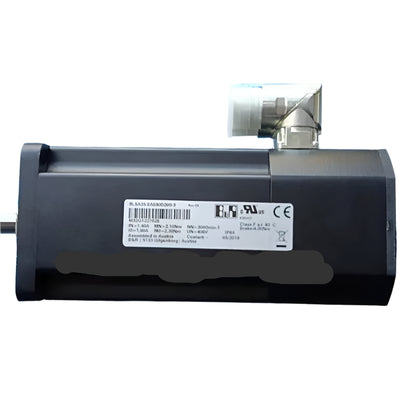

B&R • GMUK13407

8LSA35EA030D2003
SERVO MOTOR
8LS SERIES
SYNCHRONOUS
THREE-PHASE
SELF-COOLING
SIZE 3
ENDAT SINGLE-TURN
3000 RPM
ANGLED SWIVEL CONNECTION

B&R • GMUK13408

8LSA35EA060D0003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm, stall torque: 2.300 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, construction type A, IP64 protection, without oil seal 560 VDC, brake holding torque: 0.00 Nm, EA ind. 32-line single-turn V2

B&R • GMUK13409

8LSA35EA060D2003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm, stall torque: 2.300 Nm, motor with holding brake, smooth shaft angled connector (swivel), centering diameter 80 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 4.00 Nm, EA ind. 32-line single-turn. V2

B&R • GMUK13410

8LSA35EB030D0003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 3,000 rpm, stall torque: 2.300 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 80 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 0.00 Nm, EB ind. 32-line multi-turn

B&R • GMUK13411

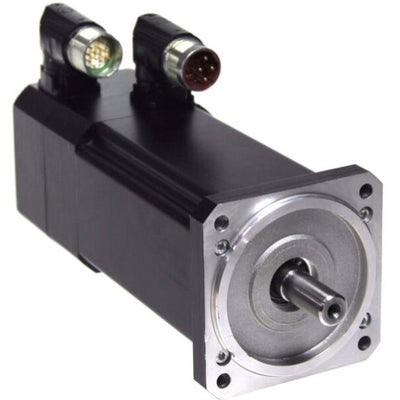

8LSA35EB030D2003
SERVO MOTOR
8LS SERIES
SYNCHRONOUS
THREE-PHASE
SELF-COOLING
SIZE 3
ENDAT MULTI-TURN
3000 RPM
4 POLE PAIRS
2.3 NM STALL TORQUE
WITH HOLDING BRAKE
560 VDC
4 NM BRAKE HOLDING TORQUE
ANGLED SWIVEL CONNECTION

B&R • GMUK13412

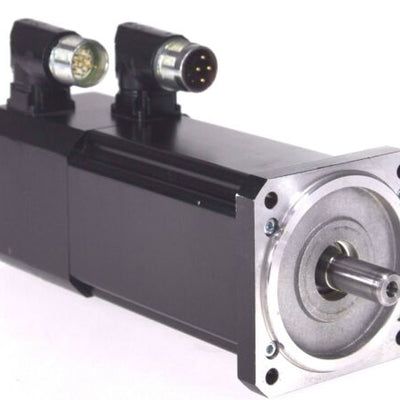

8LSA35EB060D0003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm, stall torque: 2.300 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 80 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 0.00 Nm, EB ind. 32-line multi-turn V2

B&R • GMUK13413

8LSA35EB060D2003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm, stall torque: 2.300 Nm, motor with holding brake, smooth shaft angled connector (swivel), centering diameter 80 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 4.00 Nm, EB ind. 32-line multi-turn V2

B&R • TSUK0456

8LSA35.R0030C100-0
Servo Motor

B&R • TSUK0453

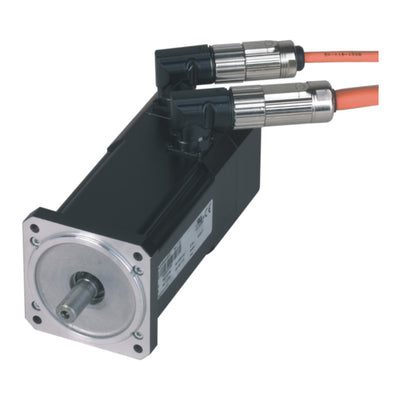

8LSA35.R2030C100-3
Servo Motor

B&R • TSUK0454

8LSA35R2030D1003
SERVO MOTOR
TYPE A
SYNCHRONOUS
3000 RPM
4 PAIR POLE
560 VDC
2.300 NM STALL TORQUE
80 MM
SELF-COOLING
2-PIN R2 RESOLVER
SHAFT KEY
ANGLED CONNECTOR / SWIVEL DIAMETER
WITHOUT BRAKE / OIL SEAL
IP64 PROTECTION

B&R •

8LSA35R2030D2003
SERVO MOTOR
8LS SERIES
SELF COOLING
MEDIUM RATED TORQUE
3.7 / 7.4 AMP
3 / 6 NM
6000 RPM
400 V

Specifications
Part # 8LSA44.EB060D000-0
Category Servo Products
Subcategory Servo Motor

B&R • GMUK13415

8LSA35R2030D3003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 3000 rpm stall torque: 2.300 Nm, motor with holding brake, shaft key, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 4.00 Nm, 2-pin R2 resolver

B&R •

8LSA35R2060D0003
SERVO MOTOR
8LS SERIES
SELF COOLING
MEDIUM RATED TORQUE
3.7 / 7.4 AMP
3 / 6 NM
6000 RPM
400 V

Specifications
Part # 8LSA44.EB060D000-0
Category Servo Products
Subcategory Servo Motor

B&R • GMUK13416

8LSA35R2060D1003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6000 rpm stall torque: 2.300 Nm, without brake, shaft key, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 0.00 Nm, 2-pin R2 resolver

B&R • GMUK13417

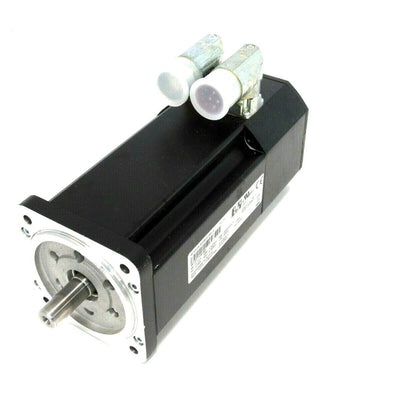

8LSA35R2060D2003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6,000 rpm stall torque: 2.300 Nm, motor with holding brake, smooth shaft, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 4.00 Nm, 2-pin R2 resolver

B&R • GMUK13418

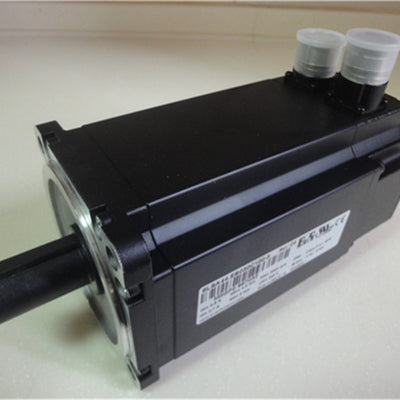

8LSA35R2060D3003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6000 rpm stall torque: 2.300 Nm, motor with holding brake, shaft key, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 4.00 Nm, 2-pin R2 resolver

B&R • TSUK0458

8LSA36.R0045D000-0
Servo Motor

B&R •

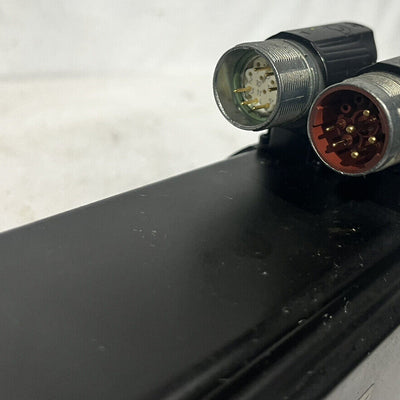

8LSA36R0045D2000

8LS synchronous motors have been specially developed for use in high-performance applications. The large selection in this product family makes it easy to reduce spare parts inventory, guarantee serviceability and keep space requirements to a minimum

B&R • TSUK0858

8LSA36R2045D3003
Servo Motor
4500 RPM

B&R • GMUK13419

8LSA35R2060D3003
Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 6000 rpm stall torque: 2.300 Nm, motor with holding brake, shaft key, angled connector (swivel), centering diameter 80 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 4.00 Nm, 2-pin R2 resolver
