Industrial Automation Products

B&R • GMUK13472

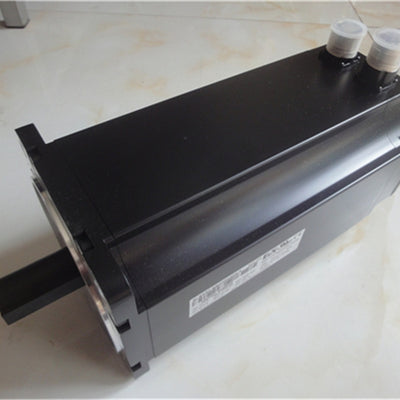

8LSA46DA060S3003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6000 rpm stall torque: 10.000 Nm, motor with holding brake, shaft key single-cable solution, angled (swivel), centering diameter 95 mm j6 fit, self-cooling, type A construction, IP64 protection without oil seal, 560 VDC, holding torque of brake: 8.00 Nm DA 2.2 ind. 32-line single-turn.

B&R • 17434

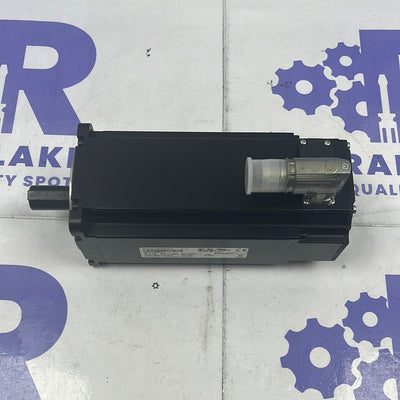

8LSA46DB030S0003
SYNCHRONOUS MOTOR
5 POLE PAIRS
3000 RPM
7.7 NM TORQUE
2419 WATTS
36.5 AMPS MAX
98.44 V/1000 RPM
SINGLE CABLE SOLUTION
CONNECTION SWIVEL/SCS
SMOOTH SHAFT
ENCODER DB 2.2 INDUCTIVE 32 LINE MULTI-TURN

B&R • GMUK13473

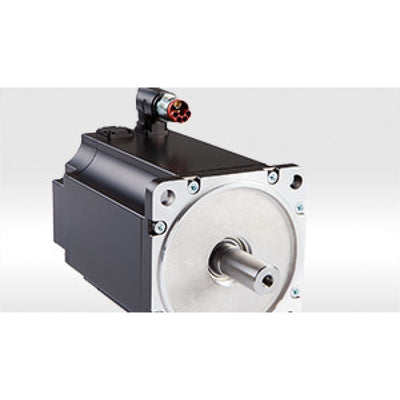

8LSA46DB030S1003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3000 rpm stall torque: 10.000 Nm, without brake, shaft key, single-cable solution angled (swivel), centering diameter 95 mm, j6 fit self-cooling, type A construction, IP64 protection, without oil seal, 560 VDC, holding torque of brake: 0.00 Nm, DB 2.2 ind. 32-line multi-turn.

B&R • 15291

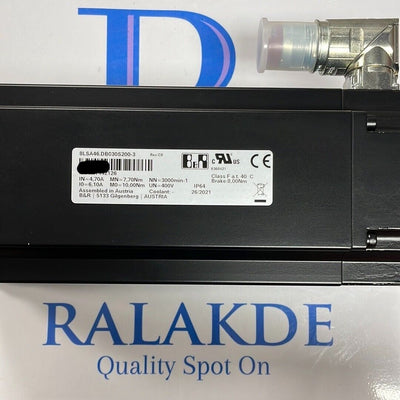

8LSA46DB030S2003
SYNCHRONOUS MOTOR
NUMBER OF POLE PAIRS: 5 PAIRS
NOMINAL SPEED: 3
000 RPM
S10 3000 7
7 00000 X XX 0 S0 XX S 560 DB
SINGLE-CABLE SOLUTION
SWIVEL
SCS
DB 2.2 INDUCTIVE 32-LINE MULTI-TURN
SMOOTH SHAFT

B&R • GMUK13474

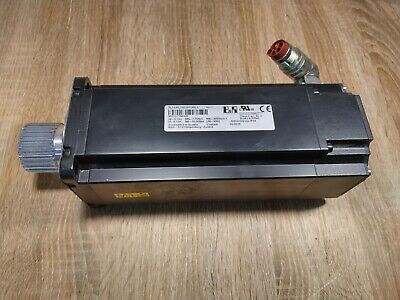

8LSA46DB030S3003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3000 rpm stall torque: 10.000 Nm, motor with holding brake, shaft key single-cable solution, angled (swivel), centering diameter 95 mm j6 fit, self-cooling, type A construction, IP64 protection without oil seal, 560 VDC, holding torque of brake: 8.00 Nm DB 2.2 ind. 32-line multi-turn.

B&R • GMUK13475

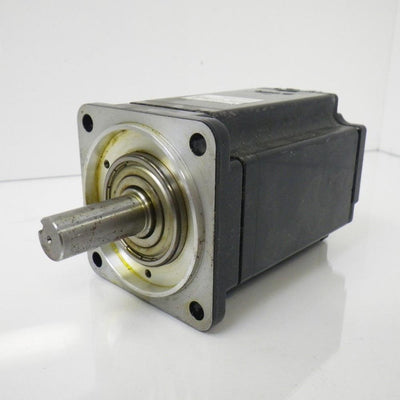

8LSA46DB060S0003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6,000 rpm, stall torque: 10.000 Nm, without brake, smooth shaft, angled connector (swivel) single-cable solution, centering diameter 95 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 0.00 Nm, DB ind. 32-line multi-turn V2

B&R • GMUK13477

8LSA46DB060S2003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6000 rpm, stall torque: 10.000 Nm, motor with holding brake, smooth shaft angled connector (swivel) single-cable solution, centering diameter 95 mm, j6 fit (self-cooling, construction type A), IP64 protection, without oil seal 560 VDC, brake holding torque: 8.00 Nm, DB ind. 32-line multi-turn V2

B&R • GMUK13478

8LSA46DB060S3003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6000 rpm stall torque: 10.000 Nm, motor with holding brake, shaft key single-cable solution, angled (swivel), centering diameter 95 mm j6 fit, self-cooling, type A construction, IP64 protection without oil seal, 560 VDC, holding torque of brake: 8.00 Nm DB 2.2 ind. 32-line multi-turn.

B&R • SSUK19529

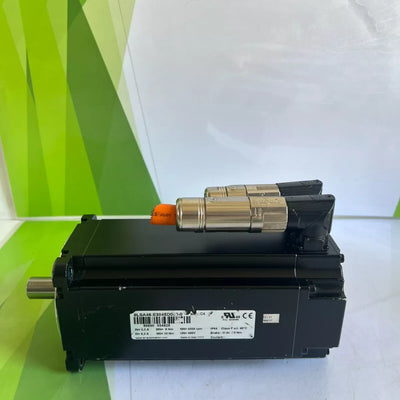

8LSA46.E3045D2000
AUTOMATION

B&R • GMUK13479

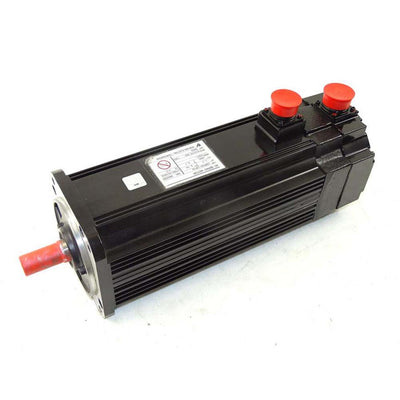

8LSA46R2030D0003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3,000 rpm stall torque: 10.000 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 0.00 Nm, 2-pin R2 resolver

B&R • GMUK13480

8LSA46R2030D1003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3000 rpm stall torque: 10.000 Nm, without brake, shaft key, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 0.00 Nm, 2-pin R2 resolver

B&R • GMUK13481

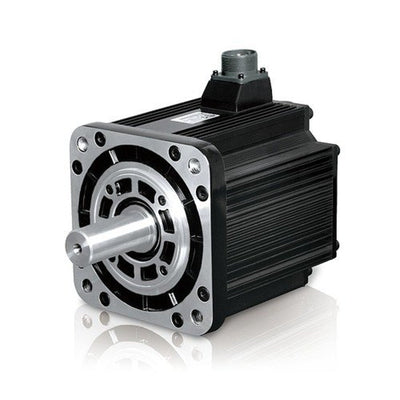

8LSA46R2030D2003
SERVO MOTOR
8LS SERIES
SYNCHRONOUS
THREE-PHASE
SELF-COOLING
SIZE 4
RESOLVER
3000 RPM
ANGLED SWIVEL CONNECTION

B&R •

8LSA46R2030D3002
SERVO MOTOR
8LS SERIES
SELF COOLING
MEDIUM RATED TORQUE

Specifications

Category Servo Products
Subcategory Servo Motor

B&R • GMUK13482

8LSA46R2030D3003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 3000 rpm stall torque: 10.000 Nm, motor with holding brake, shaft key, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 8.00 Nm, 2-pin R2 resolver

B&R •

8LSA46.R2030D600-3 B&R AUTOMATION SERVOMOTOR 400V 8LSA46.R2030D600-3 8LSA46.R2030D600-3

B&R • KKG10

8LSA46.R2045D000-3

B&R • KKG11

8LSA46.R2045D200-3

B&R • GMUK13483

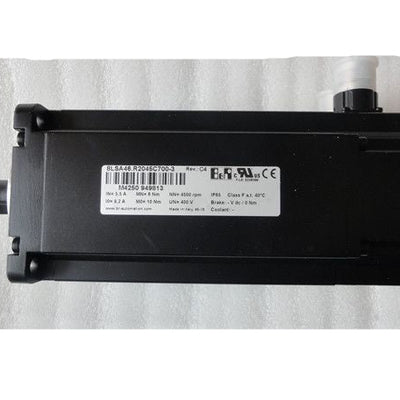

8LSA46R2060D0003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6,000 rpm stall torque: 10.000 Nm, without brake, smooth shaft, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 0.00 Nm, 2-pin R2 resolver

B&R • GMUK13484

8LSA46R2060D1003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6000 rpm stall torque: 10.000 Nm, without brake, shaft key, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 0.00 Nm, 2-pin R2 resolver

B&R • GMUK13485

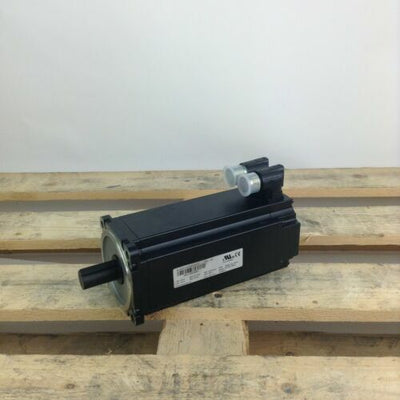

8LSA46R2060D2003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6,000 rpm stall torque: 10.000 Nm, motor with holding brake, smooth shaft, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 8.00 Nm, 2-pin R2 resolver

B&R • GMUK13486

8LSA46R2060D3003
Synchronous motor, number of pole pairs: 5 pairs, nominal speed: 6000 rpm stall torque: 10.000 Nm, motor with holding brake, shaft key, angled connector (swivel), centering diameter 95 mm, j6 fit self-cooling, type A, IP64 protection, without oil seal 560 VDC, holding torque of brake: 8.00 Nm, 2-pin R2 resolver

B&R •

8LSA5DB045S2003
SERVO MOTOR
8LS SERIES
SELF COOLING
MEDIUM RATED TORQUE

Specifications

Category Servo Products
Subcategory Servo Motor

B&R • SSUK19528

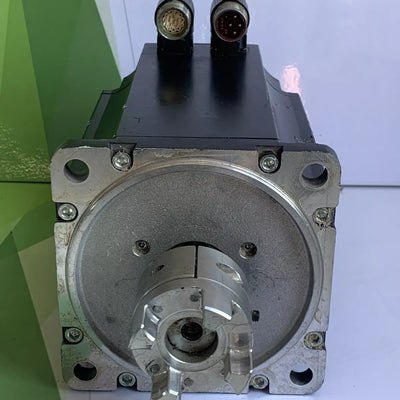

8LSA54E3022D2000
AUTOMATION

B&R • TSUK0746

8LSA54.E3030D300-3
Self-cooling
Connector
Flange-mounted
Motor
