Industrial Automation Products

B&R • GMUK10529

X20AP3122
Calculates RMS values from currents and voltages
Calculates active, reactive and apparent power
Phasing detection
Measures individual phases and calculates cumulative values
Optional measurement of current through the neutral conductor
Calculates frequency and harmonics with high precision
NetTime timestamp: Moment when measured value groups are read

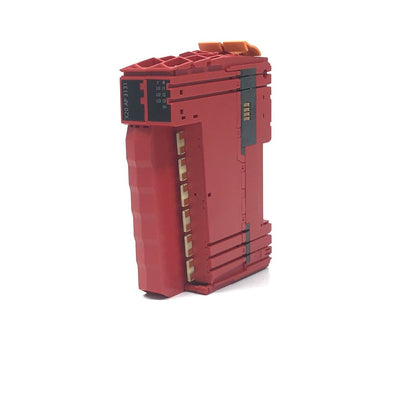

B&R • 14295

X20AP3131
I/O MODULE
3 PHASE
5 AMP
655 V AC
50/60 HZ

B&R • SSUK1304

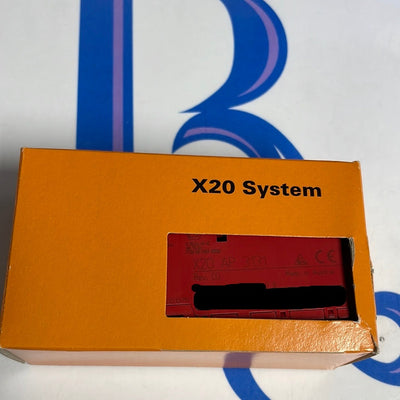

X20AP3131
INPUT SLICE MODULE
ANALOG ENERGY METER
X20 SERIES
3X ANALOG INPUTS (277 VAC PHASE-TO NEUTRAL / 480 VAC PHASE-TO-PHASE / 45-65 HZ)
4X ANALOG INPUTS (5 AMP)

B&R • GMUK10530

X20AP3132
Calculates RMS values from currents and voltages
Calculates active, reactive and apparent power
Phasing detection
Measures individual phases and calculates cumulative values
Optional measurement of current through the neutral conductor
Calculates frequency and harmonics with high precision
NetTime timestamp: Moment when measured value groups are read

B&R • GMUK10531

X20AP3161
Calculates RMS values from currents and voltages
Calculates active, reactive and apparent power
Phasing detection
Measures individual phases and calculates cumulative values
Optional measurement of current through the neutral conductor
Calculates frequency and harmonics with high precision
NetTime timestamp: Moment when measured value groups are read

B&R • GMUK10532

X20AP3171
Calculates RMS values from currents and voltages
Calculates active, reactive and apparent power
Phasing detection
Measures individual phases and calculates cumulative values
Optional measurement of current through the neutral conductor
Calculates frequency and harmonics with high precision
NetTime timestamp: Moment when measured value groups are read

B&R • 12763

B&R • SHIS0650

B&R • GMUK10536

X20AT4232
4 inputs for resistance temperature measurement
For NTC resistance type 10 kΩ
Resistance measurement 0 to 200 kΩ
Configurable measurement type per channel
2-wire measurement
Configurable filter time

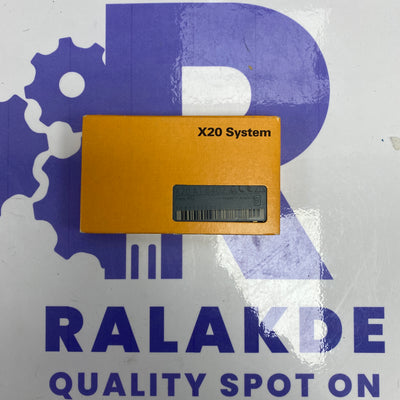

B&R • GMUK10537

X20AT6402
INPUT MODULE
FOR THEMOCOUPLES
6 INPUT
16 BIT
0.1-0.91 W
LED INDICATORS
0 TO +55 DEGREES C
IP20

X20 AT 6402

X20 AT6402

B&R • GMUK10538

X20ATA312
2 inputs for resistance temperature measurement
PT100 sensor
Direct resistance measurement as well
4-wire measurement
Filter time can be configured
NetTime timestamp: Moment of measurement

B&R • GMUK10539

X20ATA492
INPUT MODULE
FOR THERMOCOUPLES
2 THERMOCOUPLE INPUT
16 BIT
IP20
12UV

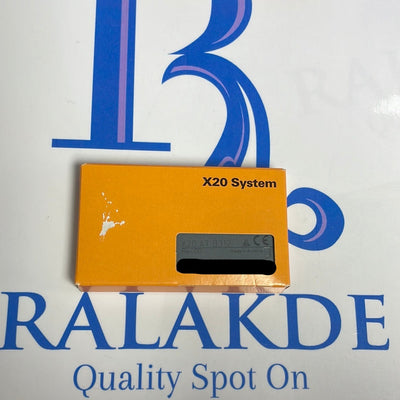

B&R • 14689 bx639 s48

X20ATB312
INPUT MODULE
4 THERMOCOUPLE INPUTS
PT100 SENSOR
4 WIRE

B&R • GMUK10540

X20ATC402
I/O MODULE
6 THERMOCOUPLE INPUTS
BUS - 0.01 W
INTERNAL I/O - 0.85 W
16 BIT DIGITAL CONVERTOR RESOLUTION

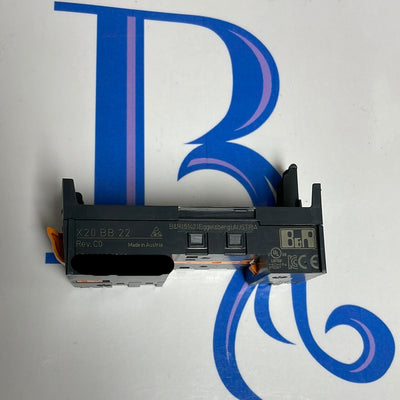

B&R • 15543/BX0065

X20BB22
BASE MODULE
FOR LL X20 COMPACT CPUS
RS232 CONNECTION
0.32W
24VDC
10A
IP20

B&R • 14784

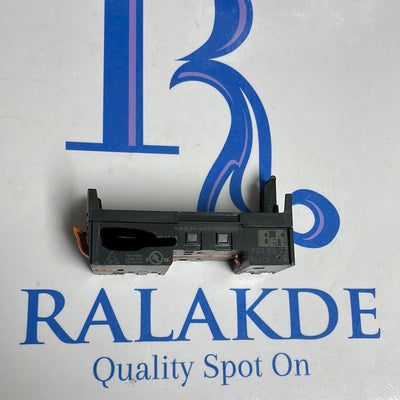

X20BB27
BASE
FOR ALL X20
COMPACT CPUS
RS232 CONNECTION
CAN BUS CONNECTION

B&R • 14038 BX0712

THE BASE FOR ALL X20 COMPACT-S  CPUs
RS232 CONNECTION
THE BUS MODULE IS THE BASE FOR ALL X20 COMPACT-S CPUS

B&R • GMUK10340

X20BB53
The base for all X20 Compact-S controllers
RS485 connection
Integrated terminating resistor

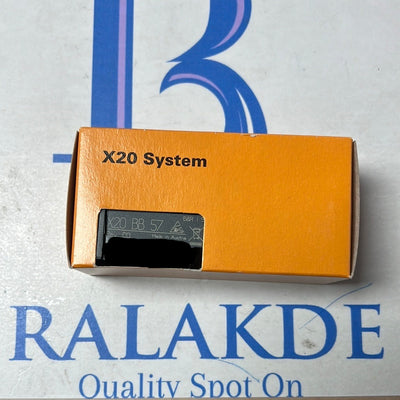

B&R • 14859

X20 BB 57
CPU BASE
X20 COMPACT-S
BACKPLANE
CAN
BUS CONNECTION
RS232 CONNECTION
0.55 W BUS
24 VDC NOMINAL

B&R • GMUK10342

X20BB62
Base for X20 Compact-S controllers
1 slot for X20 interface modules
RS232 connection

B&R • GMUK10343

X20BB63
Base for X20 Compact-S controllers
1 slot for X20 interface modules
RS485 connection
Integrated terminating resistor

B&R •

 X20 Compact-S CPUs
1 slot for X20 interface modules
RS232 connection
CAN bus connection
Integrated terminating resistor for CAN bus

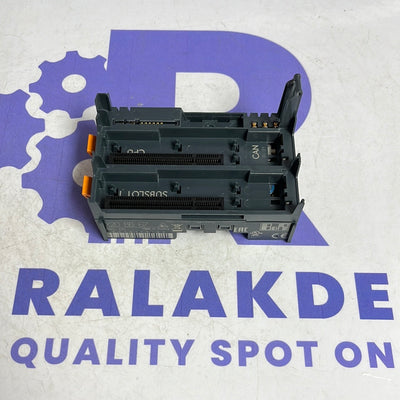

X20BB67

B&R • GMUK10344

X20BB72
Base for X20 Compact-S controllers
2 slots for X20 interface modules
RS232 connection

B&R • 17799 BX0662

Base for X20 Compact-S CPUs
2 slots for X20 interface modules
RS232 connection
CAN bus connection
Integrated terminating resistor for CAN bus
