Industrial Automation Products

B&R • GMUK10510

X20CM098502
ANALOG INPUT MODULE
15.2 HZ
1.05 W BUS
24 VDC

B&R • 15980

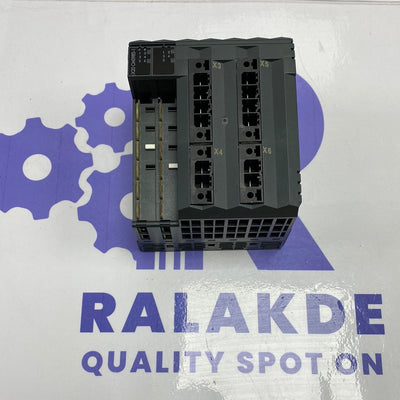

X20CM0985-1

X20 CM 0985

X20 CM 0985-1
Energy measurement for 120 to 480 VAC
Simultaneous measurement of 2 AC mains networks plus 2 additional voltages
For multifunctional measurement tasks
The intelligent mains synchronization unit
The module has a compact size and combines a power measurement module that has special features with a synchronization unit that is able to meet all demands

B&R • GMUK10547

X20CM1941
I/O MODULE
1 RESOLVER INPUT
1 ABR OUTPUT
14-BIT RESOLUTION FOR THE ANGULAR POSITION

B&R • NKUS4913

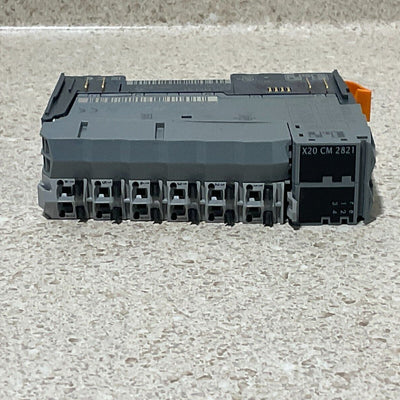

X20CM2821
INPUT MODULE
COUNTER FUNCTIONS
24 VDC DIGITAL INPUT
0-10 VDC ANALOG INPUT

B&R • GMUK10511

X20CM4323
4 digital outputs
Control of PWM output signals based exactly on NetTime
4x oversampling output functions
Integrated output protection
24 VDC and GND for actuator power supply

B&R • GMUK10542

X20CM4800X
4-channel vibration measurement module
IEPE power supply
Sampling rate of 200 to 50000 samples/second
Separate Flatstream for each channel

B&R • 14294

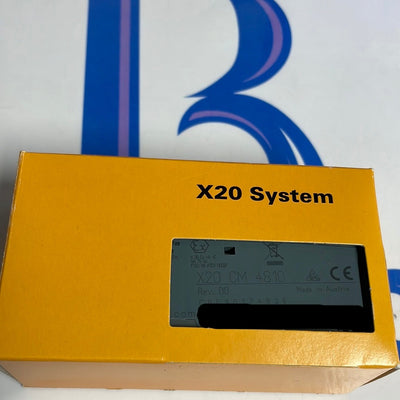

X20CM4810
VIBRATION MEASUREMENT AND ANALYSIS MODULE
4-CHANNEL
24-BIT RESOLUTION AT 51.562 KHZ
IEPE SUPPLY
DATA BUFFER UPLOAD

B&R • 14678

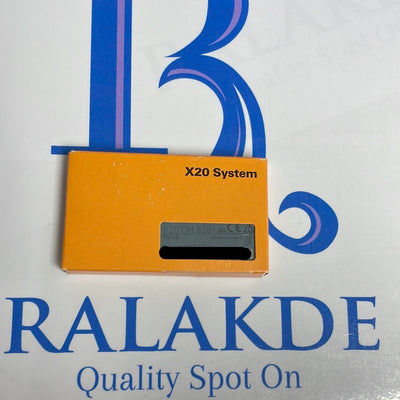

X20CM8281
I/O MODULE
4 DIGITAL INPUTS
2 DIGITAL OUTPUTS
1 ANALOG INPUT
1 ANALOG OUTPUT
SPECIAL FUNCTIONS
24 VDC
0.01 W BUS
1.75 W INTERNAL I/O

B&R • SREU5502

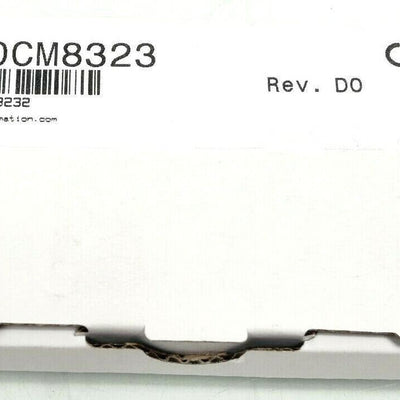

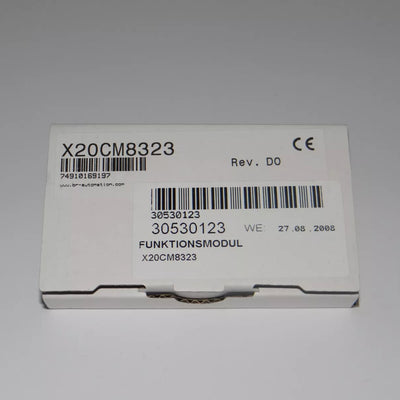

X20CM8323
PWM MODULE
PULSE WIDTH MODULATION
8 DIGITAL OUTPUTS
0.6 AMP CONTINUOUS
2 AMP PEAK
SWITCHING TIME DETECTION
24 VDC

B&R • gg00187

B&R X20CM8323

B&R • GMUK10624

X20cMM2436
2x outputs (H bridge) with PWM control and 24 to 39 VDC ±25% supply
3 A nominal current (3.5 A max current)
15 Hz to 50 kHz frequency, 16-bit
Frequency mode with 10 to 6553.5 Hz or 1 to 655.35 Hz resolution.
PWM resolution, 15-bit + sign, minimum 10 ns
Configurable dither
2x 2 inputs 24V, can be configured as AB
Sink connection
1-wire connections

B&R • 16373

Measurement and evaluation of the ambient conditions in the control cabinet
Recording ambient conditions
Recording operating hours and power-on cycles
Saving user data directly on the module
Supports blackout mode
The module is designed for measuring ambient conditions in the control cabinet as well as recording operating hours and power-on cycles. In addition, the module offers the option of storing user data directly on the module and supports blackout mode

B&R • GMUK10543

X20CMR011
Measurement and evaluation of the ambient conditions in the control cabinet
Recording ambient conditions
Recording operating hours and power-on cycles
Saving user data directly on the module
Supports blackout mode
2 inputs for PT1000 temperature sensors
2 digital inputs 24 VDC
1 digital output 24 VDC

B&R • GMUK10544

X20CMR100
Measurement and evaluation of the ambient conditions in the control cabinet
Recording ambient conditions
Recording operating hours and power-on cycles
Technology Guarding directly on the module
Supports blackout mode

B&R • GMUK10545

X20CMR111
Measurement and evaluation of the ambient conditions in the control cabinet
Recording ambient conditions
Recording operating hours and power-on cycles
Saving user data directly on the module
Technology Guarding directly on the module
Supports blackout mode
2 inputs for PT1000 temperature sensors
2 digital inputs 24 VDC
1 digital output 24 VDC

B&R • 15271

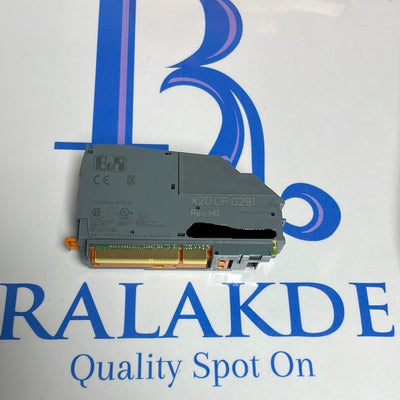

X20CP0291
COMPACT CPU MODULE
EMBEDDED UP16
W/ ADDITIONAL I/O PROCESSOR
100 KB USER SRAM
1 MB USER FLASH PROM
ONBOARD ETHERNET
ONLY 37.5 MM WIDE
BATTERY-FREE

B&R • 15629

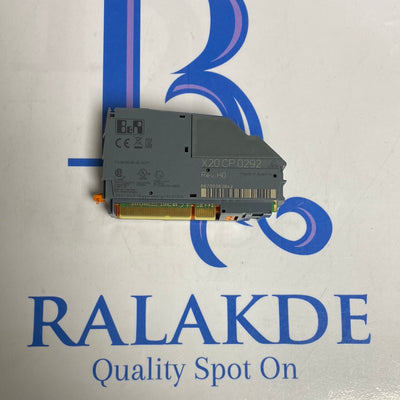

X20CP0292
CPU
EMBEDDED UP25
WITH ADDITIONAL PROCESSOR
750 KB USER SRAM
3 MB USER FLASH PROM
ONBOARD ETHERNET
ONLY 37.5 MM WIDE
BATTERY-FREE

B&R • 15300

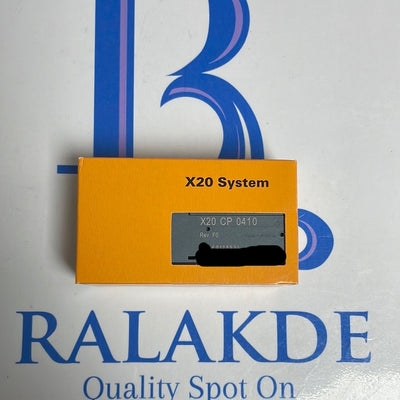

X20CP0410

ARM Cortex-A9 processor with 166 MHz (compatible) and integrated I/O processor
Onboard Ethernet
2x onboard USB
128 MB DDR3 SDRAM
256 MB onboard flash drive
Fanless
No battery
Extremely compact
The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free

B&R • GMUK10339

X20CP0420
ARM Cortex-A9 processor with 166 MHz-compatible and integrated I/O processor
Onboard Ethernet
Integrated switch for efficient wiring
2x onboard USB
128 MB DDR3 SDRAM
256 MB onboard flash drive
Fanless
No battery
Extremely compact

B&R • 15233

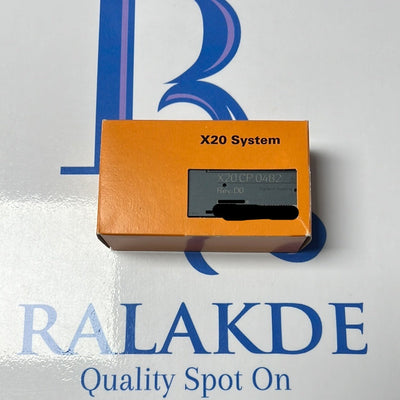

X20CP0482
ARM Cortex-A9 processor with 300 MHz and integrated I/O processor
POWERLINK with onboard poll response chaining
Onboard Ethernet
2x onboard USB
128 MB DDR3 SDRAM
1 GB onboard flash drive
Fanless
No battery
Extremely compact

B&R • 12750

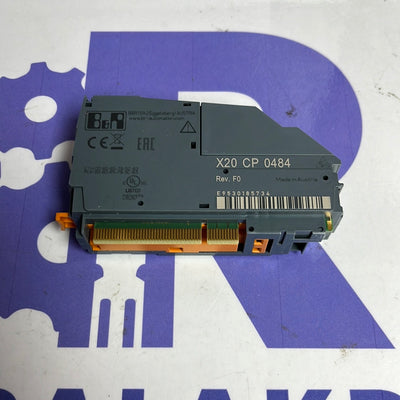

x20 cp 0484-1

x20cp0484-1

ARM Cortex-A9
processor with 667 MHz a
Onboard Ethernet
2x onboard USB
256 MB DDR3 SDRAM
2 GB onboard flash drive

B&R • SHGE2508

B&R • 17561

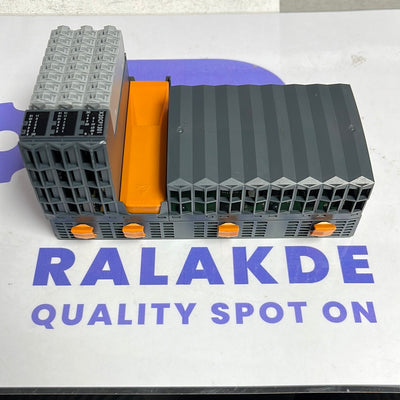

X20CP1301
CPU UNIT
INTEL X86
200 MHZ
COMPATIBLE WITH INTEGRATED
I/O PROCESSOR
ONBOARD ETHERNET AND USB
1 SLOT FOR MODULAR INTERFACE EXPANSION
30 DIGITAL IN/OUTPUTS
2 ANALOG INPUTS
1 GB ONBOARD FLASH DRIVE

B&R • 15686 BX0689

Intel x86 200 MHz compatible with integrated I/O processor
Ethernet, POWERLINK with poll-response chaining, and onboard USB
1 slot for modular interface expansion
30 digital inputs/outputs and 2 analog inputs integrated into the device
1 GB onboard flash drive
128 MB DDR3 SDRAM
Fanless
No battery
Backed-up real-time clock
