Industrial Automation Products

B&R • 14078

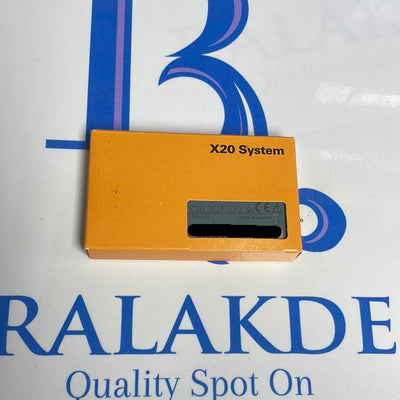

X20DOF322
DIGITAL OUTPUT MODULE
16 DIGITAL OUTPUTS
SOURCE CONNECTION
1-WIRE CONNECTIONS
INTEGRATED OUTPUT PROTECTION

B&R • 15238/BX0065

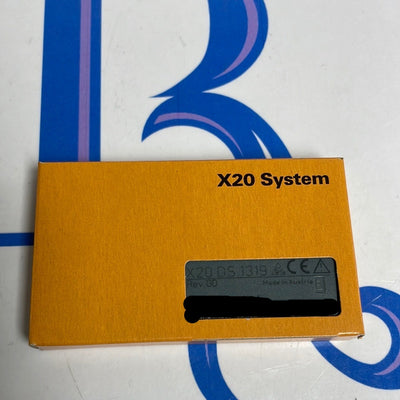

X20DS1319
I/O MODULE
4 DIGITAL INPUT CHANNELS
24 VDC
1.3MA
100 KHZ INPUT FREQUENCY

B&R • MKUK0089

HIPERFACE encoder interface
Encoder input monitoring
11 VDC and GND for encoder supply
NetTime timestamp: Position time

B&R • GMUK10553

X20DS1928
EnDat 2.1 and EnDat 2.2 encoder interface
Encoder input monitoring
5 VDC and GND for encoder supply
NetTime timestamp: Position time

B&R • 17731

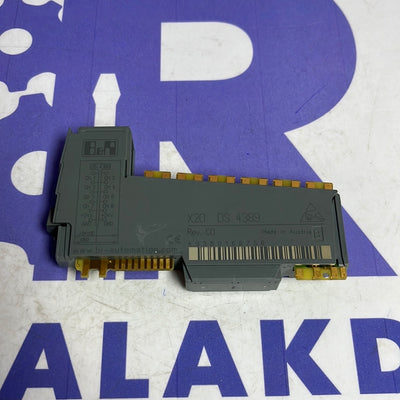

X20DS4389
I/O MODULE
4 DIGITAL INPUT CHANNELS
4 DIGITAL CHANNELS CONFIGURABLE AS INPUTS OR OUTPUTS
4 EDGE DETECTION UNITS WITH TIMESTAMP FUNCTION
24 VDC

B&R • 15781

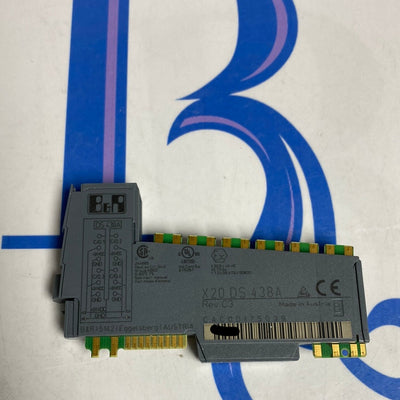

X20DS438A
I/O MODULE
24 VDC
4 DIGITAL CHANNEL
20 M / 3 PIN SENSOR CABLE

B&R • GMUK10347

X20EM0611
Intel Atom 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10349

X20EM0612
Intel Atom 0.8 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
768 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10350

X20EM0613
Intel Atom 1.3 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
Fanless
No battery

B&R • GMUK10351

X20EM1611
Intel Atom 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10352

X20EM1612
Intel Atom 0.8 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
768 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10353

X20EM1613
Intel Atom 1.3 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
Fanless
No battery

B&R • GMUK10615

X20ET8819
NetTime time stamp has a resolution of 20 ns
Recording and analysis of CRC and frame errors
Triggers can also be activated using external digital signals
Analysis of both half-duplex and full-duplex networks
Able to record two networks simultaneously

B&R • GMUK10484

X20HB1881
Hub expansion module
1x hub 100 BASE-FX
Fiber optic multimode cable
Range up to 2 km
Hot-swap-capable

B&R • GMUK10485

X20HB1882
Hub expansion module
1-port hub, 100BASE-FX
Single-mode glass fibre cables
Range up to 50 km
Hot-swappable

B&R • 17610 BX0711

Hub expansion module
2x Hub 100 BASE-FX

B&R • NKUK1011

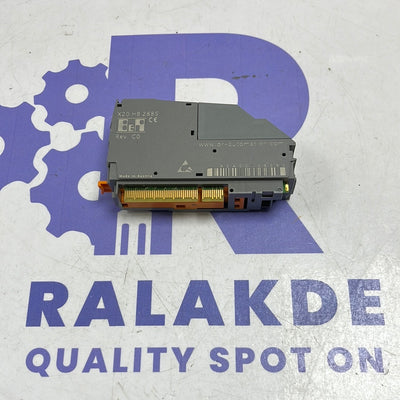

X20HB2885
EXPANSION MODULE
ACTIVE HUB
2 X FAST ETHERNET HUB FOR REDUNDANT WIRING
1.17 W CONSUMPTION
STATUS INDICATORS

B&R • GMUK10486

X20HB2886
Active hub expansion module
2x 100 BASE-FX hub for redundant wiring
Hot-swap-capable

B&R • 12755

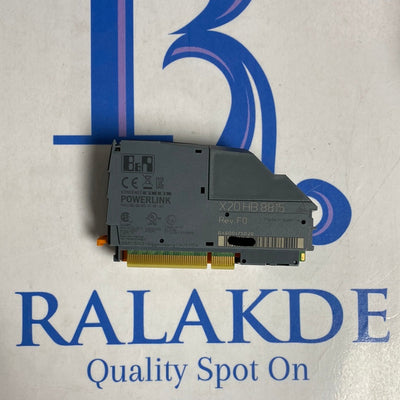

X20 HB8815

X20 HB 8815

POWERLINK
Up to 2 slots for hub expansion modules
3x / 5x POWERLINK hub
"ETH" port: Interface for TCP/IP network
"PLK" port: Interface for POWERLINK network

B&R • 16710 BX0770

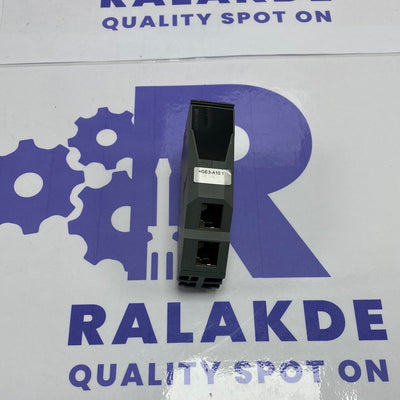

X20HB8880
FAST ETHERNET HUB
HUB EXPANSION MODULE
2X HUB 100 BASE-FX
100 MBITS
1-2 SLOTS

B&R • GMUK10487

X20HB8884
Connecting POWERLINK devices to the POWERLINK cable redundancy system
Integrated compact link selector function

B&R • GMUK10477

X20IF0000
Cover for unused interface module slots
IF dummy modules required if the X20 system is subjected to increased vibration fatigue
Module with no electrical function

B&R • 14850

The RS232 interface can be configured as an online interface
The interface module can be used to expand the X20 CPU for specific
applications. It is equipped with an RS232 interface.

B&R • 14867/BX0065

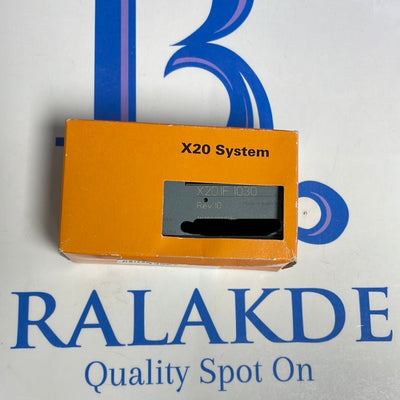

X20IF1030
INTERFAC MODULE
COMMUNICATION MODULE
IF INTFMOD
1 RS422/RS485
0.35 W
9-PIN MALE DSUB CONNECTOR
