Industrial Automation Products

B&R • 15832

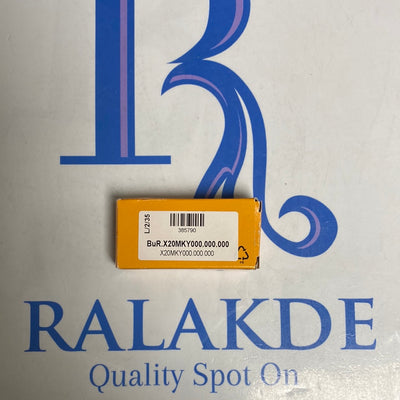

X20MKY00000000

B&R • 14074

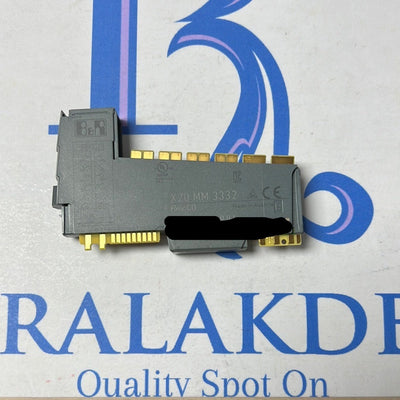

X20MM3332
DIGITAL MOTOR MODULE X20
24VDC
3 DIGITAL OUTPUTS
FULL BRIDGE (H BRIDGE)
3A CONTINUOUS CURRENT
5A PEAK CURRENT

B&R • 14075

4 half-bridge outputs
High component density
3 A continuous current
5 A peak current
Readable current

B&R • 14691

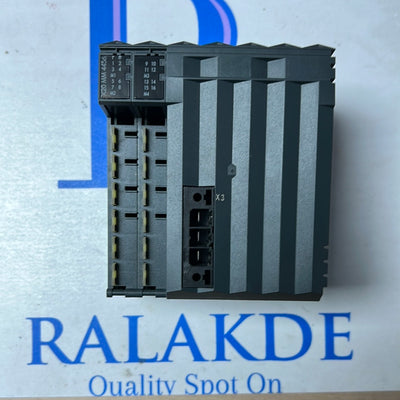

X20MM4456R
PWM MOTOR BRIDGE MODULE
4-CHANNELS
4 ABR INCREMENTAL ENCODERS
24-48 V DC
6 AMP NOMINAL CURRENT (10 A MAX)
15 HZ TO 50 KHZ
1-WIRE CONNECTION

B&R • 14311

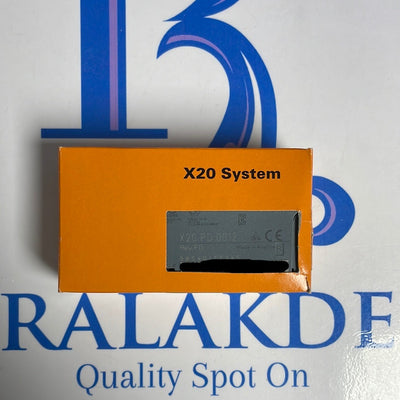

X20PD0012
I/O MODULE
POTENTIAL DISTRIBUTOR
12X
24 V DC
1 WATT
10 AMP

B&R • 14849

Integrated exchangeable microfuse
Monitoring of the fuse
Potential for routing as needed
Distribution of the load and electronics supply
Isolation from the internal I/O supply

B&R • GMUK10546

X20PD0053
Free shunting potentials
Monitoring the outputs

B&R • 14845

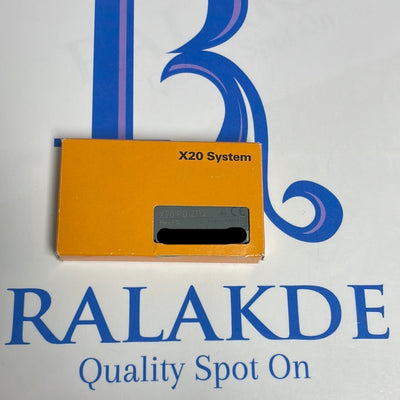

X20PD2113
I/O MODULE
24 V DC
1.15 WATT
6 AMP

B&R •

X20 PS 1966

B&R

B&R • GMUK10616

X20PS2110
POWER SUPPLY MODULE
X20 SERIES
24 VDC
FOR INTERNAL I/O SUPPLY
FUSE FOR I/O POWER SUPPLY INTEGRATED IN MODULE
-25 TO +60 DEGREE C

B&R • 14076

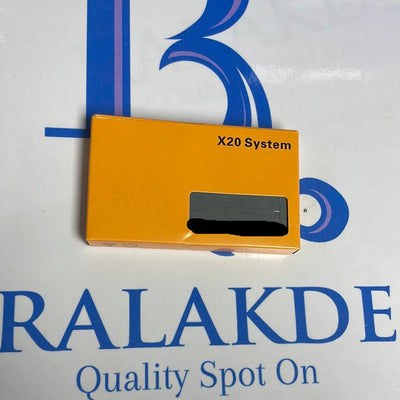

X20PS3300
POWER SUPPLY MODULE
FOR INTERNAL I/O SUPPLY
X2X LINK SUPPLY
24 VDC
0.7 AMP
7 W

B&R • 15301

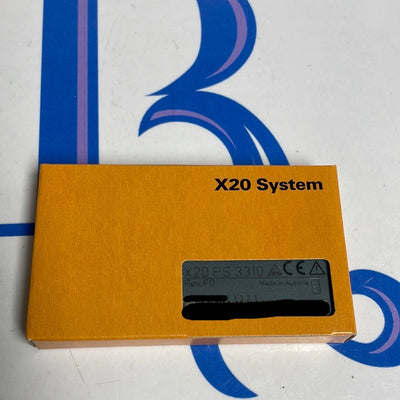

X20PS3310
POWER SUPPLY
24 V DC
1.42 W
0.7 AMP
INTEGRATED FUSE
OUTPUT - 7 W
INPUT CURRENT - 6 AMP

B&R • 17609/BX0568/16712 BX0769

Supply for X20 stand-alone devices
No electrical isolation between the I/O supply and
the device power supply

B&R • 16707

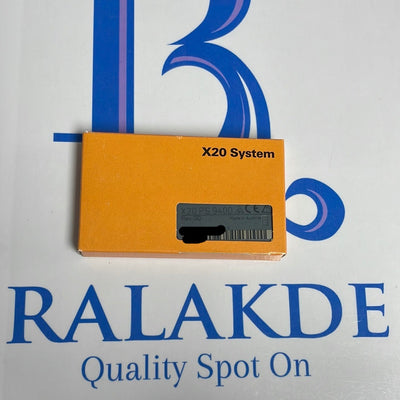

X20 PS 9400
PLC POWER SUPPLY
24 VDC
1 X RS232 SERVICE INTERFACE
0.7 AMP MAX
X20 BUS CONTROLLER

B&R • 15272

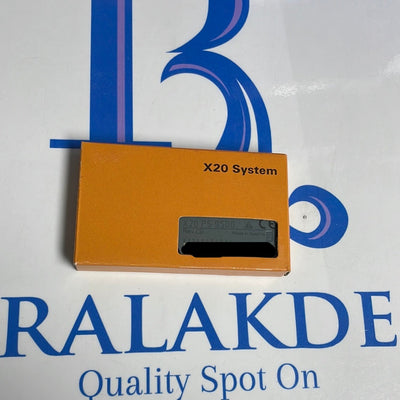

X20PS9500
POWER SUPPLY MODULE
FOR COMPACT AND FIELDBUS CPUS AND INTERNAL I/O SUPPLY
X2X LINK SUPPLY
SUPPLY NOT ELECTRICALLY ISOLATED

B&R • 15261

X20PS9600
SUPPLY FOR COMPACT-S CPU
X2X LINK AND INTERNAL I/O POWER SUPPLY
ELECTRICAL ISOLATION OF SUPPLY AND CPU/X2X LINK POWER SUPPLY. THE POWER SUPPLY MODULE IS USED TOGETHER WITH AN X20 COMPACT-S CPU.

B&R • 15628

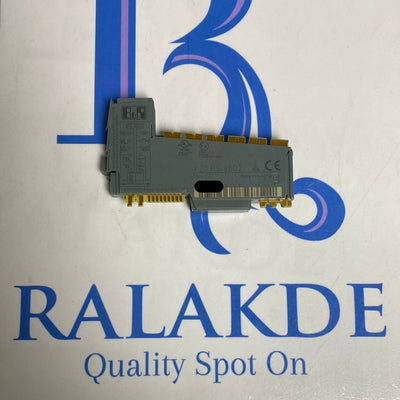

X20 PS 9602
Supply for Compact-S CPU, X2X Link, and internal I/O power supply
Cost-effective power supply module for small X20 systems
No galvanic isolation of supply and CPU / X2X Link power supply
Expansion or redundancy of CPU / X2X Link power supply not possible through parallel operation of multiple power supply modules
RS232 is configurable as an online interface
CAN bus

B&R • 15236 bx354 s17

reACTION technology module
4 high-speed digital inputs
4 high-speed digital channels, configurable as inputs or outputs
1 ABR incremental encoder input 24 V
Pulse width modulation
24 VDC and GND for encoder supply
Supports blackout mode

B&R • GMUK10506

X20RT8201
reACTION technology module
4 high-speed digital inputs
4 high-speed digital channels, configurable as inputs or outputs
2 high-speed analog inputs ±10 V
1 ABR incremental encoder input 24 V
Pulse width modulation
24 VDC and GND for encoder supply
Supports blackout mode

B&R • GMUK10507

X20RT8202
reACTION technology module
4 high-speed digital inputs
4 high-speed digital channels, configurable as inputs or outputs
2 high-speed analog outputs ±10 V
1 ABR incremental encoder input 24 V
Pulse width modulation
24 VDC and GND for encoder supply
Supports blackout mode

B&R • GMUK10508

X20RT8381
Description:
reACTION Technology module
4 high-speed digital inputs
4 high-speed digital channels, configurable as inputs or outputs
2 high-speed analog inputs ±10 V
1 high-speed analog output ±10 V
1 ABR incremental encoder input 24 V
Pulse width modulation
Support of data type "REAL" for arithmetic operations
Supports blackout mode

B&R • GMUK10509

X20RT8401
reACTION technology module
4 high-speed digital inputs
4 high-speed digital channels, configurable as inputs or outputs
1 high-speed analog input ±10 V
1 high-speed analog output ±10 V
1 ABR incremental encoder input 24 V
Pulse width modulation
24 VDC and GND for encoder supply
Supports blackout mode

B&R • MKUK0093

4 safe digital outputs with 0.5 A
Source circuit
Output type A
Current monitoring
Open circuit detection
Integrated output protection

B&R • 16428

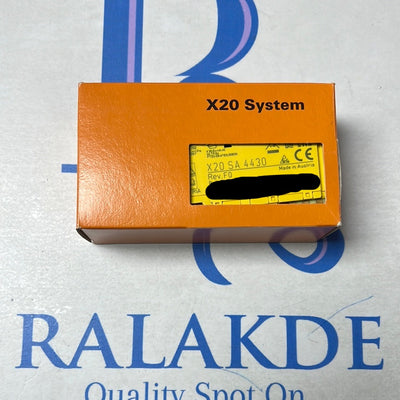

X20SA4430

2 safe analogue input pairs for current measurement 0.5 to 25 mA
24-bit digital converter resolution
Channels individually galvanically isolated
Sensor power supplies galvanically isolated
Input filter configurable
