Industrial Automation Products

B&R • 15259 BX0772

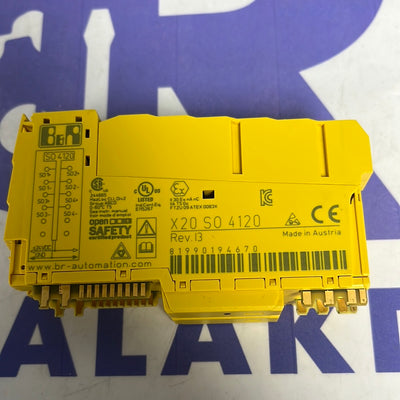

X20S04120

X20 SO 1020

X20S04120

X20 S0 4120
OUTPUT MODULE DIGITAL

B&R • 14994 BX450 S24

6 safe relay outputs
Output type "Relay"
Relay module for 230 VAC / 24 VDC
Switching current 6 A
Normally open contact
Single-channel isolated output

B&R • GMUK11233

X20SRT402
reACTION Technology module
4 high-speed safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
2 high-speed safe digital outputs, output type B with 0.2 A, source circuit
Safe reACTION task cycle times starting at 150 µs
Integrated output protection

B&R • GMUK11234

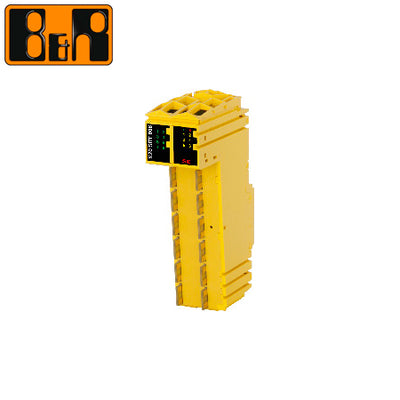

X20SRT806
 X20 safe digital mixed module, reACTION Technology for safety, 150 µs safety cycle time, 8 safe type A digital inputs, configurable input filter, 4 pulse outputs, 24 VDC, 6 safe type B2 digital outputs, 24 VDC, 0.2 A, OSSD <10 µs

B&R • GMUK11235

X20SRT842
reACTION Technology module
8 high-speed safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
4 safe digital outputs, output type A with 3 A, source circuit
2 high-speed safe digital outputs, output type B with 50 mA, source circuit
Safe reACTION task cycle times starting at 150 µs
Integrated output protection

B&R • 16330/BX0704

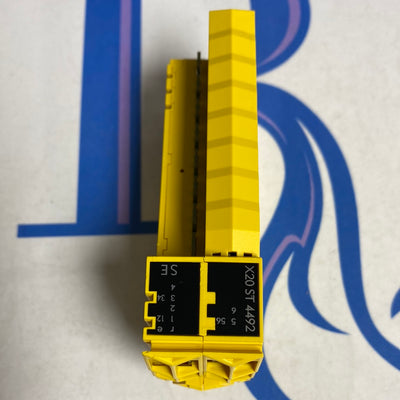

X20 ST 4492

X20ST4492

2 safe analog input pairs for thermocouples
For sensor types J, K, N, S, R, C, T, raw value measurement
1 safe analog input pair for resistance temperature measurement
For PT100 and PT1000
Configurable sensor type per channel
24-bit digital converter resolution
Galvanically isolated analog channel pairs
Input filter configurable
Integrated terminal temperature compensation
2x PT1000 sensor integrated in the terminal (X20TB5E)
2x external PT1000 sensor can be connected (X20TB5F)

B&R • GMUK10473

X20TB06
Tool-free wiring with push-in technology
Simple wire release using lever
Ability to label each terminal
Plain text labeling also possible
Test access for standard probes
Can be customer-coded

B&R • GMUK10474

X20TB1E
Integrated terminal temperature compensation
Tool-free wiring with push-in technology
Simple wire release using a screwdriver
Ability to label each terminal
Plain text labeling is also possible
Test access for standard probes
Can be customer-coded

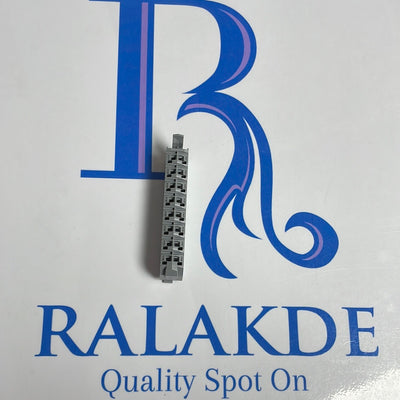

B&R • 12708

X20TB1F
TERMINAL BLOCK
16 PIN
24 VDC
KEYED
GRAY
X20 MODULES

B&R • GMUK10475

X20TBS1
Terminal block set for X20 I/O module: 2x 16-pin terminal block

B&R • GMUK10476

X20TBS2
Terminal block set for X20 I/O module: 8x 4-pin terminal block

B&R • SHGE4114

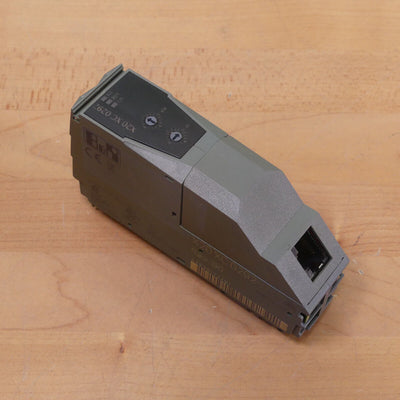

X20XC0292
CPU MODULE
COMPACT
FIELDBUS

B&R • GMUK10478

X20ZF0002
Placeholder for later system expansion
Use as terminal carrier
Module without electrical function
240 V encoding

B&R • GMUK10479

X20ZF000F
Placeholder for later system expansion
Used as a terminal holder
Module with no electrical function

B&R • 15916/BX0858

4 analog inputs ±10 V
16-bit digital converter resolution
Open/Short circuit detection
Configurable digital input filters
Very short cycle times
Optimal shield grounding on all channels
The module is equipped with 4 inputs with 16-bit digital converter resolution.
The range of the input signal is ±10 V.

B&R • 14702

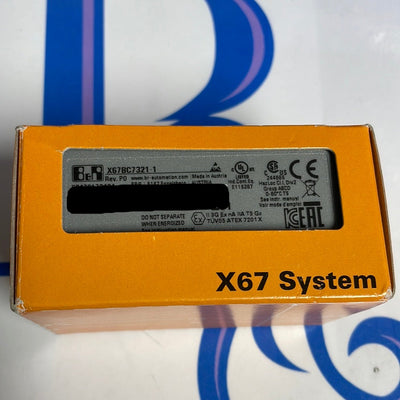

X67BC73211
BUS CONTROLLER
FIELDBUSS: CAN BUS
8 DIGITAL CHANNELS
500 VEFF
24 VDC
12 W
8X M8 / 3-PIN INPUTS/OUTPUTS CONNECTORS
M8 / 4-PIN I/O POWER SUPPLY CONNECTOR
IP67

X67BC732

B&R • 16339

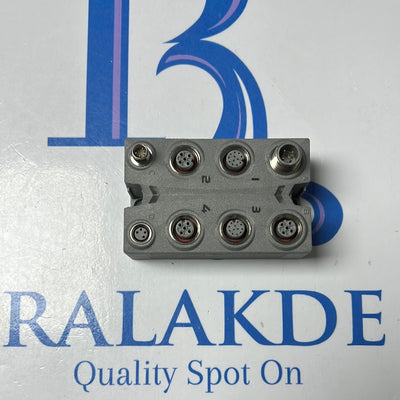

X67DC1198
I/O MODULE
2 INCREMENTAL / SSI ENCODER INPUTS (5 V)
2 DIGITAL INPUT/OUTPUT CHANNELS (24 V)
4 AB COUNTERS
PULSE WIDTH MODULATION
INTEGRATED POWER SUPPLY

B&R • GMUK10812

X67AC0A001
X67 male M12 connector, 5-pin, A-coded, cage clamp connection

B&R • GMUK9505

X67AC0C011
X67 male M12 connector, 5-pin, A-coded, shielded, cage clamp connection

B&R • GMUK10804

X67AC0C211
X67 female connector, M12, 5-pin, A-coded, shielded, cage clamp connection

B&R • GMUK10813

X67AC0D00
X67 male M8 connector, 3-pin, piercing connection

B&R • 16467 BX0772

X67 M8 threaded caps, 50 pcs.

B&R • GMUK9506

X67AC0M12
PROTECTION CAPS
M12
THREADED CAPS
50 PIECES

B&R • GMUK10810

X67AC0P00
X67 male M8 connector, 4-pin, piercing connection
