Industrial Automation Products

B&R • 15523

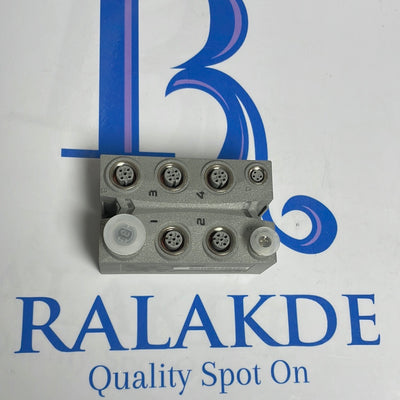

X67 AT 1322

X67 AT 1322
INPUT MODULE
4 ANALOG INPUT
FOR RESISTANCE TEMPERATURE MEASUREMENT
2 AND 4 WIRE MEASUREMENT
24 VDC X 2X LINK
FOR I/O SYSTEM
DIRECT RESISTANCE MEASUREMENT

B&R • GMUK10644

X67AT1402
I/O MODULE
4X M12 THERMOCOUPLE SENSOR INPUTS
TC TYPE J / K / N / R / S
16-BIT DIGITAL CONVERTER
ADDITIONAL DIRECT RAW VALUE MEASUREMENT
TERMINAL TEMPERATURE COMPENSATION
4-PIN M8 POWER SUPPLY CONNECTOR
LED STATUS INDICATORS
24 VDC NOMINAL
IP67

B&R • GMUK10633

X67BC432110
Fieldbus: CANopen
8 digital channels, configurable as inputs or outputs
Auto-configuration of I/O modules
Convenient I/O configuration with Automation Studio V4.3 and later
Constant response times even with large amounts of data (max. 32 Rx and 32 Tx PDOs)
Configurable I/O cycle (0.5 to 4 ms)
Possible to configure the transfer rate or have it detected automatically
Heartbeat consumer and producer, emergency producer
2x SDO server, NMT slave
Simple bootup (autostart)

B&R • NRUS3832

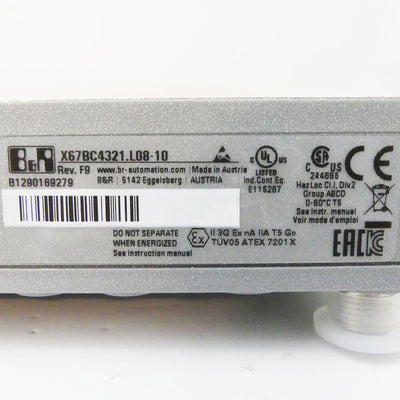

X67BC4321.L08-10
Bus Controller

B&R • GMUK10634

X67BC4321L1210
Fieldbus: CANopen
16 digital channels, configurable as inputs or outputs
Auto-configuration of I/O modules
Easy I/O configuration using Automation Studio V4.3 or later
Constant response times even with large amounts of data (max. 32 Rx and 32 Tx PDOs)
Configurable I/O cycle (0.5 to 4 ms)
Possible to configure the transfer rate or have it detected automatically
Heartbeat consumer and producer, emergency producer
2x SDO server, NMT slave
Simple bootup (autosta

B&R • 15824 bx389 S18

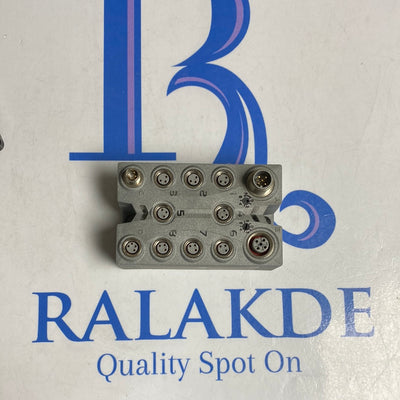

X67BC5321
PROFIBUS DP MODULE
I/O BUS CONTROLLER
DEVICENET
0.5 AMP
24 V DC
500 V

B&R • 23410

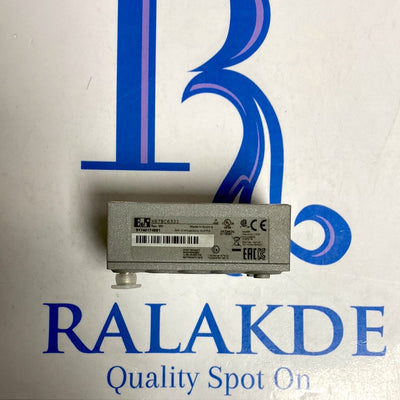

X67BC6321
PROFIBUS DP MODULE
I/O BUS CONTROLLER
DEVICENET
0.5 AMP
24 V DC
500 V

B&R • 14891

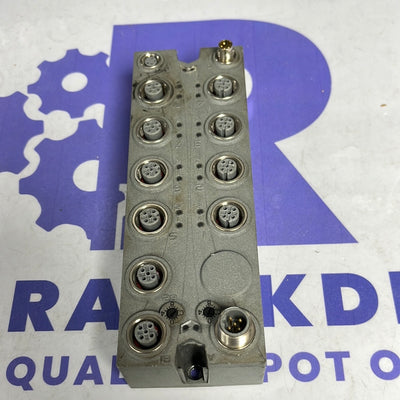

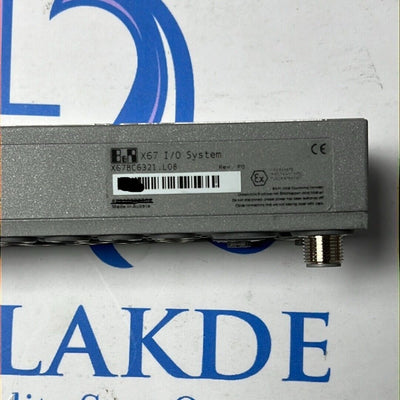

X67BC6321L08
BUS CONTROLLER
PROFIBUS DP V0
16 DIGITAL CHANNELS
500 V
24 VDC
0.5 A SUMMATION CURRENT
M8 CONNECTION TYPE

B&R • 15763

Fieldbus: PROFIBUS DP
Integrated Y-connector for fieldbus connection
16 digital channels, configurable as inputs or outputs
M12 connections
Simple I/O configuration via the fieldbus
Integrated connection to local expansions via X2X Link for 63 additional modules
Configurable I/O cycle (0.2 to 1 ms)

B&R • GMUK10635

X67BC81RTL12
BUS CONTROLLER MODULE
24 VDC
9 CHANNEL DIGITAL I/O

B&R • GMUK10636

X67BC83211
BUS CONTROLLER
0.5 AMP
24 VDC
8 DIGITAL CHANNELS
CONFIGURABLE AS INPUTS OR OUTPUTS
I/O CONFIGURATION AND FIRMWARE UPDATE VIA THE FIELDBUS
CONFIGURABLE I/O CYCLE (STARTING AT 200 MS)

B&R • 15522

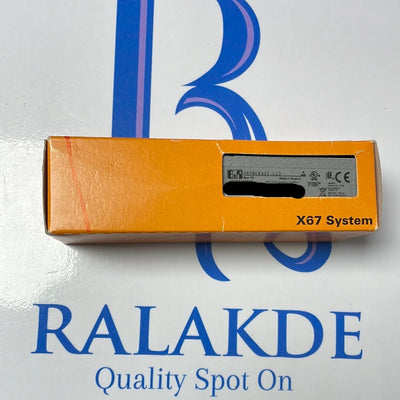

X67BC8321L12
BUS CONTROLLER MODULE
16 DIGITAL CHANNEL
SINGLE CHANNEL DIAGNOSTIC OUTPUTS
M12 CONNECTOR
4 PIN
12 WATT
24 VDC

B&R • GMUK10637

X67BC8780L12
POWERLINK
8 CAN interfaces
M12 connections
Integrated hub for efficient cabling

B&R • 15721 BX194 S2

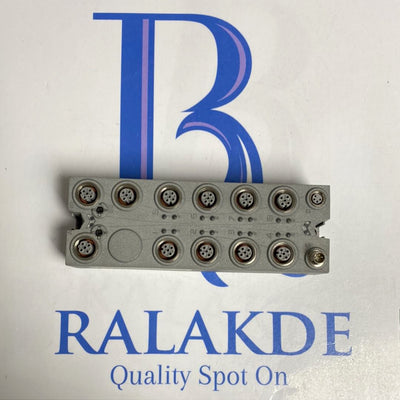

X67BCD321L12
BUS CONTROLLER
ETHERNET/IP
INTEGRATED 3-PORT SWITCH
1 INTERNAL PORT FOR EFFICIENT CABLING
16 DIGITAL CHANNEL
AUTO-CONFIGURATION OF I/O MODULE
M12 CONNECTION TYPE

B&R • 20404

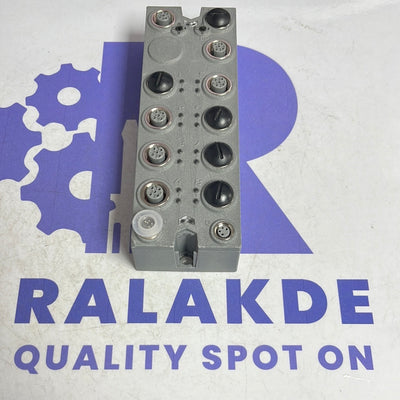

X67BCE321L12
DIGITAL MIXED MODULE
PROFINET IO
1 MS MINIMUM CYCLE TIME
CLASS B
100 MBIT/S FULL-DUPLEX MODE
1440 BYTES
16 DIGITAL CHANNELS

B&R • GMUK10638

X67BCG321L12
Fieldbus: EtherCAT
16 digital channels, configurable as inputs or outputs
Auto-configuration of I/O modules
I/O configuration and firmware update via the fieldbus (FoE)
Integrated connection to local expansion via X2X Link for 250 additional modules
Full support of the modular slice concept via CoE (CANopen over EtherCAT)
Configurable I/O cycle (0.2 to 4 ms)
Synchronization between the fieldbus and X2X Link

B&R • 15673

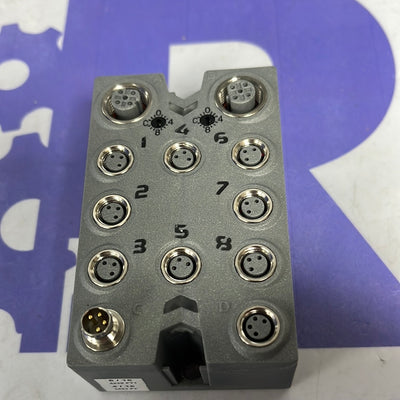

Fieldbus: Modbus/TCP, Modbus/UDP
I/O configuration via the fieldbus
DHCP-capable
Response time: <1 ms
8 digital channels, configurable as inputs or outputs
Integrated connection to local expansions via X2X Link for 250 additional modules
Configurable I/O cycle (0.5 to 4 ms)

B&R • GMUK10639

X67BCJ321L12
Fieldbus: Modbus/TCP, Modbus/UDP
Integrated 2-port switch for efficient cabling
I/O configuration via the fieldbus
DHCP-capable
Response time: <1 to  8 ms (depends on the load on the integrated switch)
Check validity of command sequences before execution
16 digital channels, configurable as inputs or outputs
M12 connection type
Integrated connection to local expansions via X2X Link for 250 additional modules
Configurable I/O cycle (0.5 to 4 ms)

B&R • GMUK10780

X67CA0A410020
M12 sensor cable, 2 m

B&R • GMUK10781

X67CA0A410050
M12 sensor cable, 5 m

B&R • GMUK10782

X67CA0A410100
M12 sensor cable, 10 m

B&R • GMUK10783

X67CA0A410150
M12 sensor cable, 15 m

B&R • GMUK10784

X67CA0A410200
M12 sensor cable, 20 m

B&R • GMUK10785

X67CA0A510020
SENSOR CABLE
M12
ANGLED
2 METER
