Industrial Automation Products

BALLUFF • RKD2090059

BSP B010-EV002-A00A0B-S4
(BSP000W) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=10 BAR
ANALOG OUTPUT 01=ANALOG
VOLTAGE
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD335197

BSP B010-EV002-A02A0B-S4
PRESSURE SENSOR
18-36 VDC OPERATING VOLTAGE
0-10 BAR PRESSURE RANGE
4-20 MA OUTPUT
PNP SWITCHING OUTPUT
1/4"
(DIN 3852) PROCESS CONNECTION
IP67 ENCLOSURE

BALLUFF • RKD1309033

BSP B010-EV002-D00A0B-S4
DISCONTINUED BY MANUFACTURER
PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=10 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"

PART# BSP B010-EV009-P00S2B-S4 REPLACES THIS ITEM

BALLUFF • RKD2090085

BSP B010-EV003-D00A0B-S4
PRESSURE SENSOR
BSP0023
18/36 VDC
0/10 BAR
CONNECTOR: M12X1-MALE
4-PIN
-40/125 DEG C
2X PNP NO/NC
STAINLESS STEEL
IP67

BALLUFF • RKD1309057

BSP B010-EV009-P00S2B-S4
PRESSURE SENSOR
BSP00Y4
WITH DISPLAY
IO-LINK 1.1 INTERFACE
18-30 VDC
0-10 BAR MEASURING RANGE
20 BAR OVERLOAD PRESSURE
30 BAR BURST PRESSURE

BALLUFF • RKD762678

BSP B010-FV004-A04A1A-S4
(BSP00K0) PRESSURE SENSOR
14-30 VDC
0-10 BAR
1/4 IN NPT
1.4301 STAINLESS STEEL
20 BAR OVERLOAD
35 BURST

BALLUFF • RKD3675294

BSP B010-HV004-A06A1A-S4
PRESSURE SENSOR
0-10 BAR RANGE
20 BAR OVERLOAD
35 BAR BURST PRESSURE
8-32 VDC
20 MA
M12 MALE 4 PIN CONNECTOR
G1/2 INCH THREAD
-40 TO +125 DEGREE C
IP67
BSP00J6

BALLUFF • RKD762681

BSP B020-EV002-D00A0B-S4
(BSP000K) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=20 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD2522234

BSP B050-EV002-D00A0B-S4
(BSP000L) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=50 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD3675324

BSP B100-EV002-A00S1B-S4
(BSP008W) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=100 BAR
ANALOG OUTPUT 01=ANALOG
VOLTAGE
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD98067

BSP B100-EV009-P00S2B-S4-003
PRESSURE SENSORS
WITH DISPLAY
0-100 BAR MEASURING
200 BAR OVERLOAD
18-30 VDC
ANALOG
VOLTAGE/ANALOG
CURRENT SELECTABLE 420 MA/010 V
M12X1 MALE 4 PIN CONNECTOR
G 1/4"
DIN 3852
IP67
BSP00Y9

BALLUFF • RKD2090110

BSP B100-FV004-A06A1A-S4
(BSP00HH) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=100 BAR
ANALOG OUTPUT 01=ANALOG
CURRENT
HOUSING MATERIAL PRIMARY=STAINLESS STEEL (1.4301)
PROCESS CONNECTION=NPT 1/4"

BALLUFF • RKD2090135

BSP B100-GV002-D00A0B-S4
(BSP005E) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=100 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=NPT 1/4"

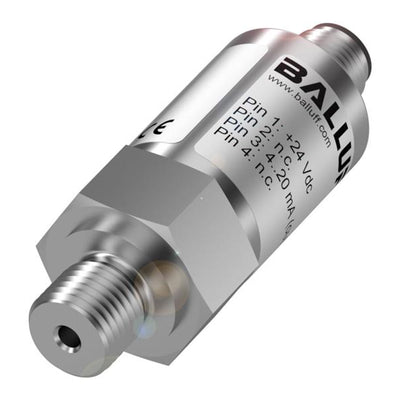

BALLUFF • RKD335225

BSP B250-DV004-A06A1A-S4
(BSP00H5) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=250 BAR
ANALOG OUTPUT 01=ANALOG
CURRENT
HOUSING MATERIAL PRIMARY=STAINLESS STEEL (1.4301)
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD3675354

BSP B250-EV002-A02A0B-S4
(BSP001A) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=250 BAR
ANALOG OUTPUT 01=ANALOG
CURRENT
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD3269564

BSP B250-EV002-A03A0B-S4
(BSP0020) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=250 BAR
ANALOG OUTPUT 01=ANALOG
CURRENT
SWITCHING OUTPUT 01=NPN
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD2522257

BSP B250-EV002-D00A0B-S4
(BSP000N) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=250 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD98090

BSP B250-EV002-D00S1B-S4
DISCONTINUED BY MANUFACTURER
(BSP008H) PRESSURE SENSOR
MEASURING RANGE MIN. PRESSURE=0
MAX. PRESSURE=250 BAR
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)
REPLACED BY BSP B250-EV009-P00S2B-S4

BALLUFF • RKD1309084

BSP B250-EV003-D00A0B-S4
PRESSURE SENSOR
PNP
250 BAR
STAINLESS STEEL (1.4301)
1/4"
(DIN 3852)
BSP0027

BALLUFF • RKD3675379

BSP B250-EV009-P00S2B-S4
PRESSURE SENSORS WITH DISPLAY
ANALOG
VOLTAGE/ANALOG
CURRENT SELECTABLE 420 MA/010 V
REPLACES BSP B250-EV002-D00S1B-S4

BALLUFF • RKD335252

BSP B250-GV002-D00A0B-S4
PRESSURE SENSOR
PRESSURE RANGE 0-250 BAR
SWITCHING OUTPUT 01 PNP
1/4-INCH NPT CONNECTION
BSP005F

BALLUFF • RKD2090158

BSP B400-DV004-A06A1A-S4
(BSP00F3) PRESSURE SENSOR
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=400 BAR
ANALOG OUTPUT 01=ANALOG
CURRENT
HOUSING MATERIAL PRIMARY=STAINLESS STEEL (1.4301)
PROCESS CONNECTION=G 1/4"
(DIN 3852)

BALLUFF • RKD3269838

BSP B400-EV002-A00A0B-S4
PRESSURE SENSOR
BSP0012
MEASURING RANGE MIN.
PRESSURE=0
MEASURING RANGE MAX.
PRESSURE=400 BAR
ANALOG OUTPUT 01=ANALOG
VOLTAGE
SWITCHING OUTPUT 01=PNP
HOUSING MATERIAL PRIMARY=PA
PROCESS CONNECTION=G 1/4"
(DIN 3852)

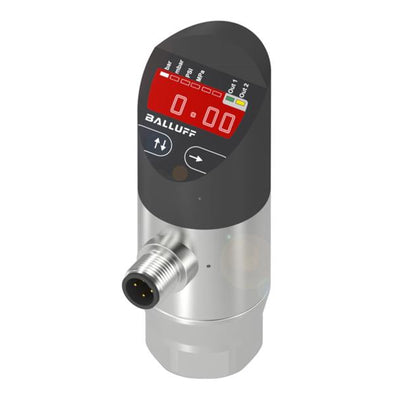

BALLUFF • RKD335281

BSP B400-EV002-A00S1B-S4
PRESSURE SENSOR
0-400 BAR
ANALOG OUTPUT 010 V
18...36 VDC
IO-LINK 1.1
PNP NORMALLY OPEN/NORMALLY CLOSED (NO/NC)
G 1/4"
(DIN 3852)
IP67
(BSP008Z)
