Industrial Automation Products

LEUZE • RKD447921

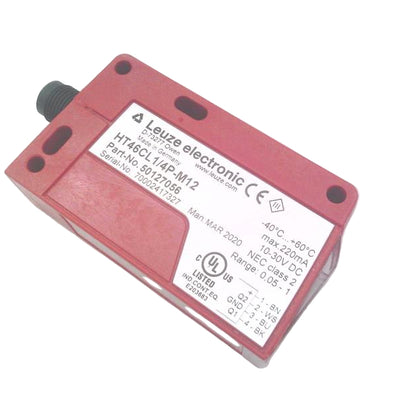

HT46CL1/4P-M12
(50127056)
DIFFUSE SENSOR
WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT: 0.05 ... 1 M
LIGHT SOURCE: LASER
RED
PROTECTION CLASS: 1
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
PNP
LIGHT

LEUZE • RKD397866

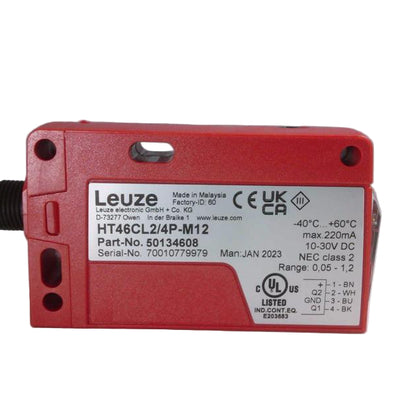

HT46CL2/4P-M12
(50134608)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT: 0.05 ... 1.2 M
LIGHT SOURCE: LASER
RED
PROTECTION CLASS: 2
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
PNP
LIGH

LEUZE • RKD447923

HT49C.UC/TS-TB
DIFFUSE SENSOR
WITH BACKGROUND SUPPRESSION
0.005-3 M RANGE
RED LED
20-250 VAC/DC SUPPLY
SWITCHING OUTPUT 1: RELAY / NC
SWITCHING OUTPUT 2: RELAY / NO
25 HZ SWITCHING FREQUENCY
LIGHT/DARK REVERSIBLE
(50127193)
SUCCESSOR TO: FRK 78/7-800

LEUZE • RKD326749

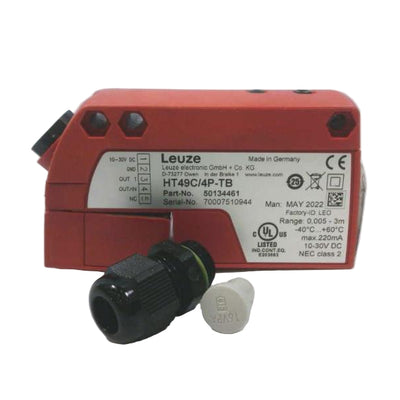

HT49C/4P-TB
(50134461)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT: 0.005 ... 3 M
LIGHT SOURCE: LED
RED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
PNP
LIGHT SWITCHING
SWITCHING O

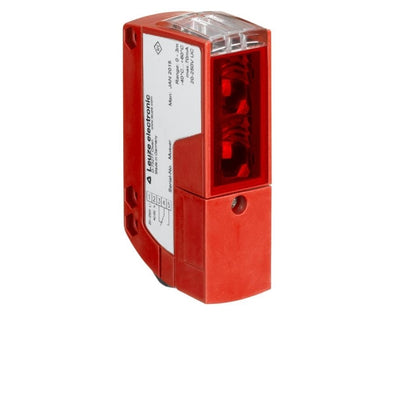

LEUZE • RKD331113

HT49CI.UC/TS
(50127434)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT
WHITE 90%: 0.005 ... 3 M
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 20 ... 250 V
AC/DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: RELAY
NC
LIGHT/DARK REV

LEUZE • RKD671737

HT49CI.UC/TS-TB
(50127433)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT
WHITE 90%: 0.005 ... 3 M
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 20 ... 250 V
AC/DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: RELAY
NC
LIGHT/DARK REV

LEUZE • RKD331116

HT5.1/2
(50129399)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT: 0.005 ... 0.4 M
LIGHT SOURCE: LED
RED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
NPN
LIGHT SWITCHING
SWITCHING

LEUZE • RKD447925

HT5.1/4X-200-M12
(50137565)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
OPERATING RANGE LIMIT: 0.005 ... 0.4 M
LIGHT SOURCE: LED
RED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
PNP
LIGHT SWITCHING
SWITCHING

LEUZE • RKD450494

HT5.1/P
50129402
DIFFUSE SENSOR W/ BACKGROUND SUPPRESSION
0.01-0.4 M OPERATING RANGE
15-400 MM ADJUSTMENT RANGE
10-30 VDC
15 MA
RED LED
TRANSISTOR
PNP
DARK SWITCHING
3 WIRE
-40 TO +60 DEGREE C
IP67
(50129402)

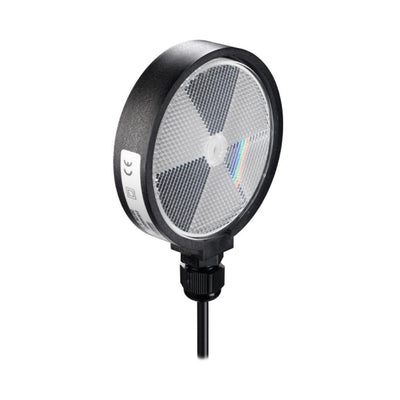

LEUZE • RKD447927

HTK 82
(50000068)
REFLECTOR
SUPPLY VOLTAGE: 230 V
AC
CONNECTION: CABLE
5
000 MM
2 -WIRE
DESIGN: ROUND
REFLECTION SURFACE DIAMETER: 78 MM
MATERIAL: PLASTIC
BASE MATERIAL: PLASTIC
CHEMICAL DESIGNATION OF THE MATERIAL: PMMA8N
FASTENING: THROUGH-HOLE MO

LEUZE • RKD450496

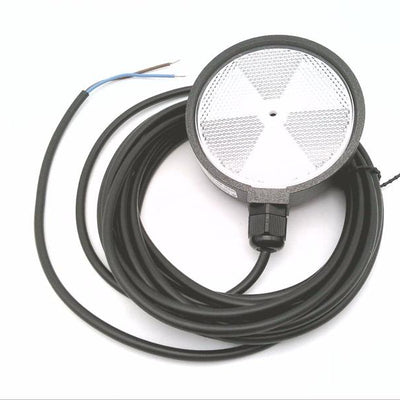

HTK 82-24V
(50000071)
REFLECTOR
SUPPLY VOLTAGE: 24 V
AC/DC
CONNECTION: CABLE
5
000 MM
2 -WIRE
DESIGN: ROUND
REFLECTION SURFACE DIAMETER: 78 MM
MATERIAL: PLASTIC
BASE MATERIAL: PLASTIC
CHEMICAL DESIGNATION OF THE MATERIAL: PMMA8N
FASTENING: THROUGH-HOLE

LEUZE • RKD326752

HTU218-1500/4T-M12
(50149541)
ULTRASONIC SENSOR
200 SERIES
2X M18 MOUNTING NUT
0.15-1.5M RANGE
200 KHZ FREQ
18-30VDC
50149541

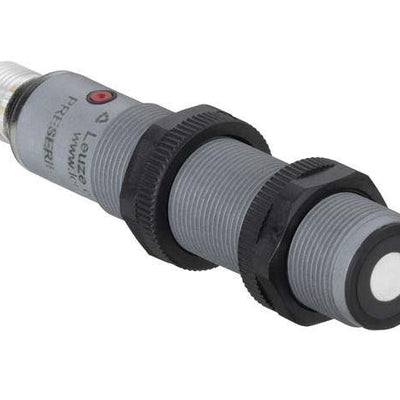

LEUZE • RKD326754

HTU318-1600.W3/4PK-M12
(50136104)
ULTRASONIC DISTANCE SENSOR
318 SERIES
SCANNING PRINCIPLE
WITH BACKGROUND SUPPRESSION
150-1600 SCANNING RANGE
DESIGN W/90 DEGREE ANGLED HEAD
TEACH BUTTON
PNP OUTPUT
NO CONTACT PRESET
NC CONTACT PRESET
SYNCHRONIZATION/MULTI

LEUZE • RKD326756

HTU318-300/4T-M12
ULTRASONIC SENSOR
TEACH INPUT
0.04-0.3 M
FRONT BEAM
PNP
NO
SUPPLY VOLTAGE: 10 -30 VDC
50136070

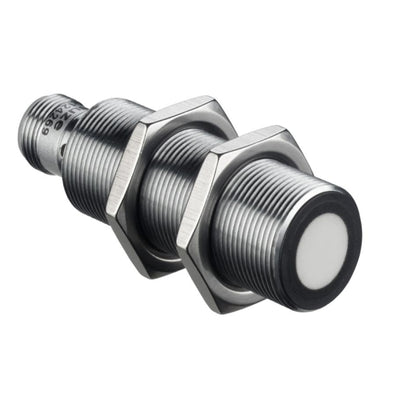

LEUZE • RKD576694

HTU418B-1000/4TX-M12
50124270
ULTRASONIC SENSOR
SPECIAL DESIGN: TEACH INPUT
OPERATING RANGE: 0.15 ... 1 M
OPENING ANGLE: 16
DIRECTION OF BEAM: FRONT
SUPPLY VOLTAGE: 15 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE
PNP
(50124270)
REPLACES 50038639

LEUZE • RKD326758

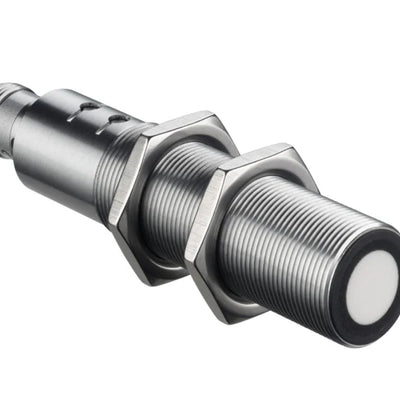

HTU418B-400.X3/LT4-M12
(50124267)
ULTRASONIC DISTANCE SENSOR
418 SERIES
SCANNING PRINCIPLE
WITH BACKGROUND SUPPRESSION
25-400 MM SCANNING RANGE
ADVANCED DESIGN
TEACH BUTTON
IO-LINK COMM OR PUSH-PULL
TEACH INPUT
PNP OUTPUT
NO CONTACT PRESET
M12 CONNECTOR
5-PIN
5012

LEUZE • RKD447931

HTU418B-400/4TX-M12
(50124269)
ULTRASONIC DISTANCE SENSOR
418 SERIES
SCANNING PRINCIPLE
WITH BACKGROUND SUPPRESSION
25-400 MM SCANNING RANGE
PNP OUTPUT
NO CONTACT PRESET
TEACH INPUT
CONNECTION NOT ASSIGNED
M12 CONNECTOR
5-PIN
50124269

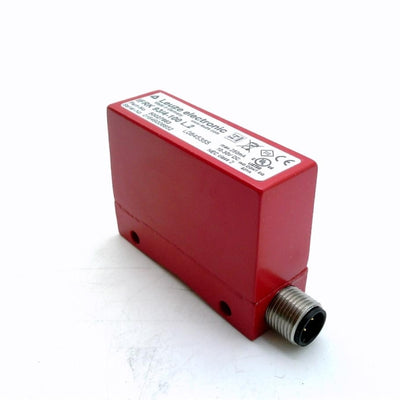

LEUZE • RKD576696

IFRK 93/4-100 L.2
(50027863)
DIFFUSE SENSOR WITH BACKGROUND SUPPRESSION
SPECIAL DESIGN: V-OPTICS
OPERATING RANGE LIMIT: 0.03 ... 0.1 M
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 18 ... 35 V
DC
DIGITAL SWITCHING OUTPUTS: 2 PIECE(S)
SWITCHING OUTPUT 1: TRANSISTOR
P

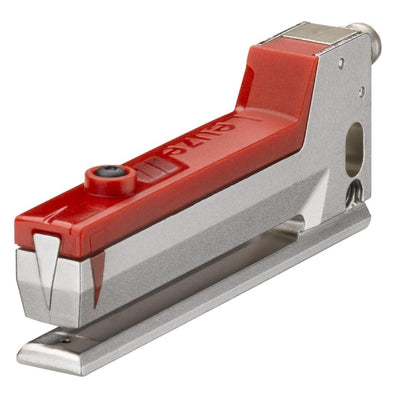

LEUZE • RKD636171

IGS 63B/6.3
(50128013)
FORKED PHOTOELECTRIC SENSOR
LABEL WIDTH: 2 MM
LABEL GAP: 2 MM
MEDIUM: NOT TRANSPARENT
SPECIAL DESIGN: WARNING OUTPUT
TEACH INPUT
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHI

LEUZE • RKD576699

IGS 63B/6.3
200-S12
(50128014)FORKED PHOTOELECTRIC SENSOR
LABEL WIDTH: 2 MM
LABEL GAP: 2 MM
MEDIUM: NOT TRANSPARENT
SPECIAL DESIGN: WARNING OUTPUT
TEACH INPUT
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHING

LEUZE • RKD397868

IGS 63B/6D.3
200-S12
(50128015)
FORKED PHOTOELECTRIC SENSOR
LABEL WIDTH: 2 MM
LABEL GAP: 2 MM
MEDIUM: NOT TRANSPARENT
SPECIAL DESIGN: WARNING OUTPUT
TEACH INPUT
LIGHT SOURCE: LED
INFRARED
SUPPLY VOLTAGE: 10 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHI

LEUZE • RKD450498

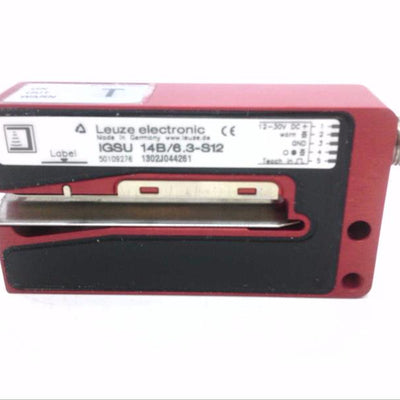

IGSU 14B/6.3-S12
DISCONTINUED BY MANUFACTURER
ULTRASONIC
FORKED SENSOR

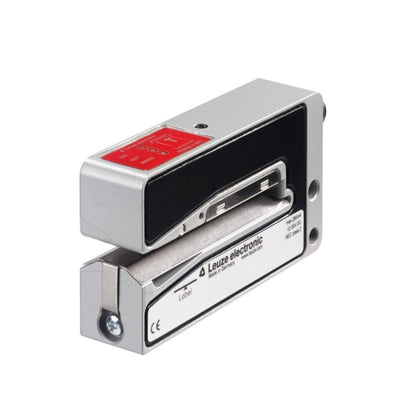

LEUZE • RKD671740

IGSU 14D/6.3-S12
DISCONTINUED BY MANUFACTURER
(50126784) ULTRASONIC FORKED SENSOR
LABEL WIDTH: 10 MM
LABEL GAP: 2 MM
MEDIUM: TRANSPARENT AND NOT TRANSPARENT
SPECIAL DESIGN: WARNING OUTPUT
TEACH INPUT
SUPPLY VOLTAGE: 12 ... 30 V

LEUZE • RKD450504

IGSU 14D/6.3SD-S12
(50126787) ULTRASONIC FORKED SENSOR
PRINCIPLE OF PHYSICS: ULTRASONICS
APPLICATION: SPLICE INSPECTIONS
MEDIUM: TRANSPARENT
SPECIAL DESIGN: WARNING OUTPUT
TEACH INPUT
SUPPLY VOLTAGE: 12 ... 30 V
DC
DIGITAL SWITCHING OUTPUTS: 1 PIECE(S)
SWITCHING OUT
