Industrial Automation Products

BECKHOFF • RKD3647435

BK4010
INTERBUS BUS COUPLER
FOR UP TO 64 DIGITAL BUS TERMINALS
24 VAC/DC
85 MA
500 KBAUD
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD5466

BK4020
BUS COUPLER
64 BUS TERMINALS(255 WITH K-BUS-EXTENSION)
ONE END TERMINAL
RING STRUCTURE
UP TO 256 STATIONS IN A RING
4096 I/O POINTS
500 KBAUD TRANSFER RATE
24 V DC POWER SUPPLY
IP20 PROTECTION RATING

BECKHOFF • RKD5469

BK4500
INTERBUS BUS COUPLER
24 VDC (-15/+20%)
WITH FIRBE OPTIC CONNECTION
70 MA INPUT CURRENT
64 BUS TERMINALS

BECKHOFF • RKD3584811

BK5000
STANDARD BUS COUPLER FOR CAN-CAL SYSTEM

BECKHOFF • RKD53401

BK5100
DISCONTINUED BY MANUFACTURER
CANOPEN BUS COUPLER
FOR UP TO 64 BUS TERMINALS
24 VDC/AC

BECKHOFF • RKD5472

BK5120
CANOPEN ECONOMY PLUS BUS COUPLER
64 BUS TERMINALS (255 WITH K-BUS EXTENSION)
16 TX/RX PDOS
OPEN STYLE CONNECTOR (5-PIN)
24 V DC
70 MA
500 V (POWER CONTACT/SUPPLY VOLTAGE BUS COUPLER)

BECKHOFF • RKD11546

BK5150
BUS COUPLER
24 VDC
64
64 I/O STATIONS
AUTO DETECTION TRANSFER RATE UP TO 1 MBAUD
5 PIN OPEN STYLE CONNECTOR

BECKHOFF • RKD3584814

BK5151
CANOPEN “COMPACT“ BUS COUPLER FOR UP TO 64 BUS TERMINALS (255 WITH K-BUS EXTENSION)
BUS CONNECTION: D-SUB PLUG
9-PIN INSTEAD OF OPEN STYLE CONNECTOR

BECKHOFF • PSGUS1208

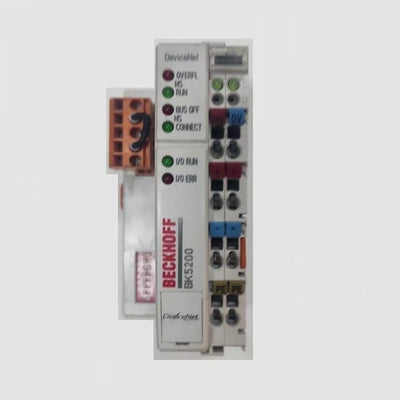

BK5200
DEVICENET BUS COUPLER
FOR UP TO 64 BUS TERMINALS
125 KBAUD
512 INPUTS/OUTPUTS
24 VDC

BECKHOFF • RKD53404

BK5210
DEVICENET BUS COUPLER
64 DIGITAL BUS TERMINALS
256 INPUTS / OUTPUTS
32 BYTES INPUTS / OUTPUTS
1 X OPEN PLUGGABLE CONNECTOR
5 PIN
24 VDC
70 MA
500 MA

BECKHOFF • RKD11549

BK5220
DEVICENET BUS COUPLER
ECONOMY PLUS
FOR UP TO 64 BUS TERMINALS
(255 WITH K-BUS EXTENSION)
125 KBAUD
256 INPUTS/OUTPUTS
24 VDC
-25 TO +60 DEGREE C
IP20

BECKHOFF • 16183 BX0018

BK5250
BUS COUPLER
DEVICENET COMPACT
FOR UP TO 64 BUS TERMINALS
(255 WITH K-BUS EXTENSION)
24 VDC
256 INPUTS/OUTPUTS

BECKHOFF • RKD3584820

BK7000
CONTROLNET BUS COUPLER
FOR UP TO 64 BUS TERMINALS
24 V DC VOLTAGE SUPPLY
500 MA MAX INPUT CURRENT

BECKHOFF • RKD53407

BK7150
COMPACT BUS COUPLER
FOR UP TO 64 BUS TERMINALS
(255 WITH K-BUS EXTENSION)
112 INPUTS/OUTPUTS DIGITAL
16 INPUTS/OUTPUTS ANALOG
24 VDC
10 AMP
0 TO +55 DEGREE C
IP20

BECKHOFF • RKD3584823

BK7200
DISCONTINUED BY MANUFACTURER
BUS COUPLER
VOLTAGE SUPPLY: 24 V DC
NODE RANGE 1-64
64 TERMINAL BLOCK MAX
0.5 A

BECKHOFF • RKD110058

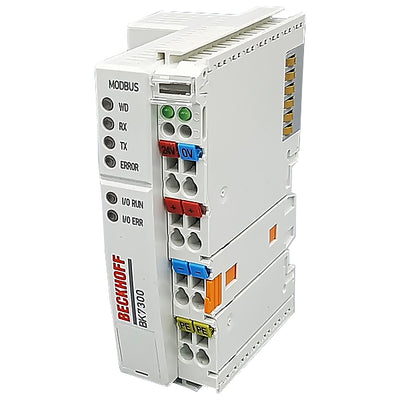

BK7300
MODBUS BUS COUPLER
UP TO 64 BUS TERMINALS
10 AMP
24 VDC
DIN RAIL MOUNT
LED INDICATION
D-SUB 9-PIN
RS485

BECKHOFF • RKD3519708

BK7500
DISCONTINUED BY MANUFACTURER
BUS COUPLER
SERCOS
MODULAR
10 AMP
24 VDC
254 I/O STATIONS
IP20
RECOMMENDED ALTERNATIVE: BK7520

BECKHOFF • RKD3584826

BK7520
BUS COUPLER
SERCOS II
INTERFACE ECONOMY PLUS
FOR UP TO 64 BUS TERMINALS
(255 WITH K-BUS EXTENSION)
2/4/8/16 MBAUD
254 INPUTS/OUTPUTS
24 VDC
10 AMP
IP20
DIN RAIL MOUNTING

BECKHOFF • RKD3584829

BK8000
BUS COUPLER
FOR UP TO 64 BUS TERMINALS
RS485 INTERFACE
24 VDC
70 MA
512 DIGITAL INPUTS/OUTPUTS
256 ANALOG INPUTS/OUTPUTS
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD22289

BK8100
BUS COUPLER
RS485/RS232
FOR UP TO 64 BUS TERMINALS
24 VDC
70 MA
0 TO +55 DEGREE C
IP20

BECKHOFF • RKD22292

BK9000
DISCONTINUED BY MANUFACTURER
ETHERNET TCP/IP BUS COUPLER
FOR UP TO 64 BUS TERMINALS
ETHERNET PROTOCOLS TWINCAT ADS
MODBUS TCP
REAL-TIME ETHERNET
24 VDC
DIGITAL PERIPHERAL SIGNALS: 512 INPUTS/OUTPUTS
ANALOG PERIPHERAL SIGNALS: 128 INPUTS/OUTPUTS

BECKHOFF • RKD11552

BK9050
ETHERNET TCP/IP COMPACT BUS COUPLER
FOR UP TO 64 BUS TERMINALS
(255 WIT K-BUS-EXTENSION)

BECKHOFF • RKD3647444

BK9053
COMPACT BUS COUPLER
FOR UP TO 64 BUS TERMINALS (255 WITH K-BUS EXTENSION)
100 MBIT/S DATA TRANSFER RATES
1 X RJ45
24 VDC
70 MA
0 TO +55 DEGREES C
IP20

BECKHOFF • RKD110064

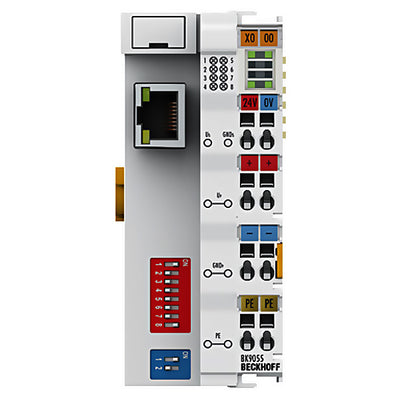

BK9055
ETHERNET/IP
BUS COUPLER
COMPACT
W/ SIGNAL LED'
S
10 AMP
24 VDC
70 MA
DOUBLE SLOT AND KEY CONNECTION
-25 TO +85 DEGREES C
DIN RAIL MOUNT
IP20
