Industrial Automation Products

PILZ • RKD2605196

PNOZ 3 5S/1O 1W 110VAC
DISCONTINUED BY MANUFACTURER
EMERGENCY STOP RELAY
SAFETY GATE MONITORS
PNOZ 3
ORDER NR.: 474833
110 VAC
50/60 HZ
9 VA
5 SAFETY CONTACTS (N/O)
1 AUXILIARY CONTACT (N/C)
1 FLEETING AUXILIARY CONTACT (N/O)

PILZ • RKD2547391

PNOZ 3 5S/1O 1W 24VDC
DISCONTINUED BY MANUFACTURER
EMERGENCY STOP RELAY
SAFETY GATE MONITORS
PNOZ3
ORDER NR.: 474894
24 VDC 4.5W
AC15: 230V 5A DC13: 24V 7A
AC1: 240V 8A/400V 5A
5 SAFETY CONTACTS (N/O)
1 AUXILIARY CONTACT (N/C)
1 FLEETING AUXILIARY CONTACTS (N/O)

PILZ • RKD2605205

PNOZ 8 24VDC 3N/O 1N/C 2SO
SAFETY RELAY
1 / 2 CHANNEL
3 NO / 1 NO
90 MM WIDTH
24 VDC
(# 774760)

PILZ • RKD2915525

PNOZ 9/2S
DISCONTINUED BY MANUFACTURER
SAFETY RELAY
24 VDC
3 VA
50/60 HZ
2 NORMALLY OPEN

PILZ • RKD2915533

PNOZ E1P 24VDC 2N/O
SAFETY RELAY
24 VDC
2 N/O
0.5/2.0 AMP
130 W
(774130)

PILZ • RKD2609723

PNOZ E1P C 24VDC 2SO
DISCONTINUED BY MANUFACTURER
SAFETY RELAY
(STANDALONE) INPUTS: 1-/2-CHANNEL WIRING WITH/WITHOUT DETECTION OF SHORTS ACROSS CONTACTS
OUTPUTS: 2 SAFETY OUTPUTS
+1 AUXILIARY OUTPUT IN
24VDC
WIDTH: 22.5 MM
PLUG-IN SPRING -LOADED TERMINALS

PILZ • RKD2625382

PNOZ E1VP 10/24VDC 1SO 1SO T
SAFETY RELAY
1/2 CHANNEL WIRING
24 VDC
2 SAFETY OUTPUTS
1 AUXILIARY OUTPUT
0.5-2 AMP
2 W
SELECTABLE TIMES
SCREW TYPE TERMINALS
DIN RAIL MOUNT
-10 TO + 55 DEGREES C
(774131)

PILZ • RKD2512928

PNOZ E1VP 300/24VDC 1SO 1SO T
SAFETY RELAY
INPUTS: 1-/2-CHANNEL
OUTPUTS: 2 SAFETY OUTPUTS + 1 AUXILIARY OUTPUT
24 VDC
SCREW TYPE TERMINALS
MONITORING E-STOP
DIN RAIL MOUNT

PILZ • RKD2681085

PNOZ E3.1P 24VDC 2N/O
DISCONTINUED BY MANUFACTURER
SAFETY RELAY
PNOZ SERIES
GATE MONITOR
24 V DC
1-/2 CHANNEL WIRING
DUAL SAFETY OUTPUTS
MONITORING E-STOP
LED INDICATORS
SCREW TERMINALS
DIN RAIL MOUNT

PILZ • RKD2512933

PNOZ E3.1P C 24VDC 2SO
24V
5MA.

PILZ • RKD2514426

PNOZ E5.11P 24VDC 2SO
SAFETY RELAY
INPUT: 1/2-CHANNEL WIRING WITHOUT DETECTION OF SHORTS ACROSS CONTACTS
OUTPUTS: 2 SAFETY OUTPUTS +2 AUXILIARY OUTPUTS OF SC TYPE
DELAYED
AUTOMATIC/MONITORED START
UB = 24 V DC
WIDTH: 22.5 MM
PLUG-IN TERMINALS OF SCREW TYPE
(774190)

PILZ • RKD2547405

PNOZ E5.13P C 24VDC 2SO
SAFETY RELAY
INPUTS: 1-/2-CHANNEL WIRING
OUTPUTS: 2 SAFETY OUTPUTS + 1 AUXILIARY OUTPUT
DELAYED INTERNAL AND OPERATION
AUTOMATIC/MONITORED START
UB 24 V DC
WIDTH: 22.5 MM
PLUG-IN SPRING-LOADED TERMINAL
(784191)

PILZ • RKD2609736

PNOZ E6.1P 24VDC 4N/O 2SO
SAFETY RELAY
24VDC
10A MAX
1/2-CHANNEL WIRING WITH/WITHOUT DETECTION OF SHORTS ACROSS CONTACTS
PN 774192

PILZ • RKD2915543

PNOZ E7P 24VDC 2 SO
SAFETY RELAY
STANDALONE
24 VDC
SCREW TERMINALS
PLUG-IN
2 ST SAFETY OUTPUTS
2 TEST PULSE OUTPUTS
22.5 MM WIDTH
(774197)

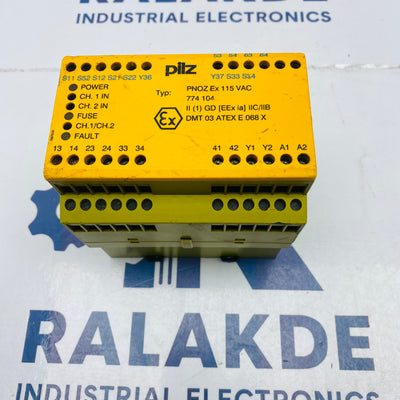

PILZ • RKD2547408

PNOZ EX 115VAC 3N/O 1N/C
DISCONTINUED BY MANUFACTURER
SAFETY/PROTECTION RELAY
2 AMP
115 VAC
50-60 HZ
8.0 VA
SCREW TERMINAL
WIDTH: 112.5 MM
(774104)

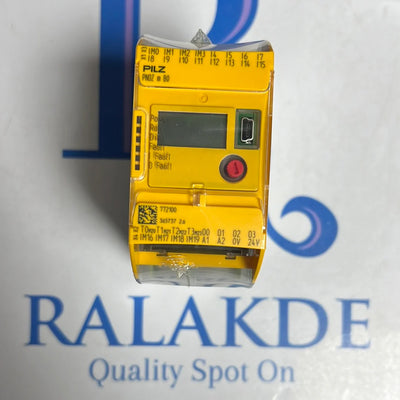

PILZ • 30908 bx1314

PNOZ M B0
CONFIGURABLE CTRL
12 I/P
4 O/P
24VDC
NO. OF ANALOGUE INPUTS:-
NO. OF ANALOGUE OUTPUTS:-
NO. OF DIGITAL INPUTS:12
NO. OF DIGITAL OUTPUTS:4
PRODUCT RANGE:PNOZMULTI 2 SERIES
SVHC:NO SVHC (15-JAN-2019) ROHS COMPLIANT: YES
772100

PILZ • RKD2915561

PNOZ M EF 16DI
INPUT MODULE
CONTROL SYSTEM
CONFIGURABLE
5 MA
24 VDC
16 INPUTS
SCREW TERMINALS
DIN RAIL MOUNTING

PILZ • RKD2514440

PNOZ M EF MULTI LINK
DISCONTINUED BY MANUFACTURER
EXPANSION MODULE
SAFE CONNECTION
24 V DC
2.5 W
PLUG IN
DIN RAIL MOUNT

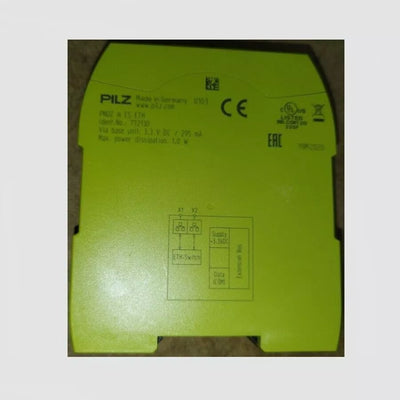

PILZ •

PNOZ M ES ETH
COMMUNICATION MODULE
CONFIGURABLE
EXPANSION
SAFE
SMALL
3.3 VDC SUPPLY
2 ETHERNET / MODBUS
TCP INTERFACES
FOR USE WITH PNOZ MULTI2
(772130)

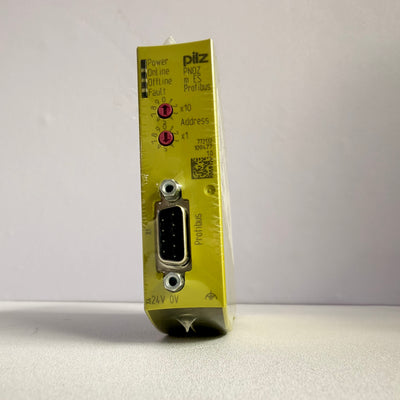

PILZ • RKD2547427

PNOZ M ES PROFIBUS
PROFIBUS MODULE
35MA
24VDC
1.2W
ETHERNET/IP INTERFACE
SPRING-LOADED TERMINAL
SCREW TERMINAL
DIN RAIL MOUNT
IP54
(772132)

PILZ • RKD2915567

PNOZ M ES PROFINET
EXPANSION MODULE
PNOZ M ES SERIES
24 VDC
COMMUNICATION MODULE
DIN-RAIL
FOR USE W/ PNOZMULTI 2
(772138)

PILZ • RKD2609738

PNOZ M0P HT
DISCONTINUED BY MANUFACTURER
EXPANSION MODULE
BASE UNIT
24 VDC
8-28 W
6 AMP
773112

PILZ • RKD2514431

PNOZ M1P BASE UNIT
SAFETY MODULE
PNOZ MULTI BASE UNIT
20 SAFE DIGITAL INPUTS
4 SAFE SEMICONDUCTOR OUTPUTS
2 SAFE RELAY OUTPUTS
24 VDC SUPPLY
MAX 8 EXPANSION MODULES
RS-232 INTERFACE
SCREW / SPRING-LOADED TERMINALS
(773100)

PILZ • RKD2547413

PNOZ M1P BASE UNIT COATED VERSION
BASE UNIT CONTROLLER
3-6 AMP
24 VDC
CONFIGURABLE
SERIAL INERFACE: RS232
20 DIGITAL INPUTS
4 SAFE SEMICONDUCTOR OUTPUTS
SEMICONDUCTOR OUTPUTS
2 SAFE RELAY OUTPUTS
FOR ENHANCED ENVIRONMENTAL REQUIREMENTS
773105
