WAGO • RKD3177707

282-698/281-413
TERMINAL BLOCK
24-10AWG
NO. OF POSITIONS:2POSITIONS
WIRE SIZE AWG MIN:24AWG
WIRE SIZE AWG MAX:10AWG
CONDUCTOR AREA CSA:6MM²

WIRE CONNECTION METHOD:CLAMP
RATED CURRENT:30A
RATED VOLTAGE:400V
FUSE SIZE HELD:-
PRODUCT RANGE:- ROHS COMPLIANT: YES

WAGO • RKD3160176

282-698/281-429
TERMINAL BLOCK
24-10AWG
NO. OF POSITIONS:2POSITIONS
WIRE SIZE AWG MIN:24AWG
WIRE SIZE AWG MAX:10AWG
CONDUCTOR AREA CSA:6MM²

WIRE CONNECTION METHOD:CLAMP
RATED CURRENT:30A
RATED VOLTAGE:400V
FUSE SIZE HELD:-
PRODUCT RANGE:- ROHS COMPLIANT: YES

WAGO • RKD3286588

282-698/281-434
TERMINAL BLOCK
FUSE
2 POSITION
24-10AWG
MINI
NO. OF POSITIONS:2POSITIONS
WIRE SIZE AWG MIN:24AWG
WIRE SIZE AWG MAX:10AWG
CONDUCTOR AREA CSA:6MM²

WIRE CONNECTION METHOD:CLAMP
RATED CURRENT:30A
RATED VOLTAGE:400V ROHS COMPLIANT: YES

WAGO • RKD3339133

282-699
3-CONDUCTOR THROUGH TERMINAL BLOCK
6 MM²

WITH TEST OPTION
SAME PROFILE AS 3-CONDUCTOR DISCONNECT TERMINAL BLOCK
CENTER MARKING
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP®

6
00 MM²

GRAY

WAGO • RKD3177709

282-866
3-CONDUCTOR THROUGH TERMINAL BLOCK
6 MM²

WITH TOUCH-PROOF TEST SOCKET
E.G.
VOLTAGE TRANSFORMER CIRCUITS
CENTER MARKING
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP®

6
00 MM²

GRAY

WAGO • RKD3339135

282-868
3-CONDUCTOR DISCONNECT TERMINAL BLOCK
E.G.
VOLTAGE TRANSFORMER CIRCUITS
WITH TOUCH-PROOF TEST SOCKET
FOR 4 MM Ø
TEST PLUGS
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
6 MM²

CAGE CLAMP®

6
00 MM²

GREEN-YELLOW

WAGO • RKD3339137

282-870
3-CONDUCTOR DISCONNECT/TEST TERMINAL BLOCK
E.G.
CURRENT TRANSFORMER CIRCUITS
WITH TOUCH-PROOF TEST SOCKETS
FOR 4 MM TEST PLUGS
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
6 MM
CAGE CLAMP
6
00 MM
GRAY

WAGO • RKD2895602

282-882
LOCKING COVER
MECHANICALLY LOCKS MULTIPLE LINKS
2-POLE
TRANSPARENT

WAGO • RKD3212061

282-884
LOCKING COVER
MECHANICALLY LOCKS MULTIPLE LINKS
4-POLE
TRANSPARENT

WAGO • RKD3214214

282-901
2-CONDUCTOR THROUGH TERMINAL BLOCK
6 MM
CENTER MARKING
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP
6
00 MM
GRAY

WAGO • RKD3212063

282-902
2-CONDUCTOR THROUGH TERMINAL BLOCK
6 MM²

CENTER MARKING
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP®

6
00 MM²

ORANGE

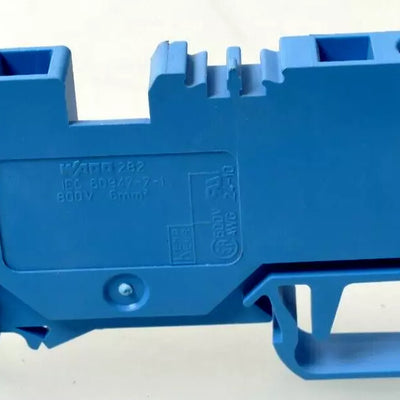

WAGO • DTGEU12278

282-904
2-CONDUCTOR THROUGH TERMINAL BLOCK
6 MM²

SUITABLE FOR EX I APPLICATIONS
CENTER MARKING
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP®

6
00 MM²

BLUE

WAGO • RKD3177711

282-907
TERMINAL BLOCK
DIN RAIL
2 POSITION
24-10AWG
NO. OF POSITIONS:2POSITIONS
WIRE SIZE AWG MIN:24AWG
WIRE SIZE AWG MAX:10AWG
CONDUCTOR AREA CSA:6MM²

WIRE CONNECTION METHOD:CLAMP
RATED CURRENT:41A
RATED VOLTAGE:800V
DEPTH:29MM ROHS COMPLIANT: YES

WAGO • RKD3177713

283-101
TERMINAL BLOCK
DIN RAIL
2 POSITION
24-6AWG
NO. OF POSITIONS:2POSITIONS
WIRE SIZE AWG MIN:24AWG
WIRE SIZE AWG MAX:6AWG
CONDUCTOR AREA CSA:16MM²

WIRE CONNECTION METHOD:CLAMP
RATED CURRENT:76A
RATED VOLTAGE:800V ROHS COMPLIANT: YES

WAGO • RKD3339139

283-104
2-CONDUCTOR THROUGH TERMINAL BLOCK
16 MM
LATERAL MARKER SLOTS
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP
16
00 MM
BLUE

WAGO • RKD3355559

283-107
2-CONDUCTOR GROUND TERMINAL BLOCK
16 MM2
LATERAL MARKER SLOTS
FOR DIN-RAIL 35 X 15 AND 35 X 7.5
CAGE CLAMP
GREEN-YELLOW

WAGO • RKD3339141

283-301
CONNECTOR ACCESSORY
GREY
END / INTERMEDIATE PLATE
RAIL MOUNTED TERMINAL BLOCKS

WAGO • RKD2895604

283-302
END AND INTERMEDIATE PLATE
ORANGE
PA66
FOR USE WITH:WAGO 283 SERIES SNAP-ON MOUNT TERMINAL BLOCKS
ACCESSORY TYPE:END &
INTERMEDIATE PLATE
PRODUCT RANGE:283 SERIES ROHS COMPLIANT: YES

WAGO • RKD2895606

283-316
END AND INTERMEDIATE PLATE
4 MM THICK
GRAY

WAGO • RKD3160178

283-317
END AND INTERMEDIATE PLATE
4 MM THICK
ORANGE

WAGO • RKD3355561

283-322
SEPARATOR PLATE
DIN RAIL TERMINAL BLOCK
ACCESSORY TYPE:SEPARATOR PLATE
FOR USE WITH:RAIL MOUNTED TERMINAL BLOCKS
PRODUCT RANGE:- ROHS COMPLIANT: YES

WAGO • RKD3339143

283-325
CONNECTOR ACCESSORY
16 MM
GREY
END / INTERMEDIATE PLATE
RAIL MOUNTED TERMINAL BLOCKS

WAGO • RKD3286590

283-327
SEPARATOR PLATE
2 X 80 X 35MM
OVERSIZED
ORANGE
POLYAMIDE PA66

WAGO • RKD3286592

283-328
END AND INTERMEDIATE PLATE
2.5 MM THICK
ORANGE
