Industrial Automation Products

HARTING • RKD501422

09 30 006 2256
INDUSTRIAL CONNECTOR HOOD
HAN B SERIES
PG16 CABLE ENTRY
SIZE 6B
SIDE ENTRY
SINGLE LOCKING LEVER
COLOUR: DUST GREY (RAL 7037)
SEAL: NBR MATERIAL
-40 TO +125 DEGREE C
IP65

HARTING • RKD307497

09 30 006 5423
PROTECTION COVER
METAL
6B
ACCESSORY TYPE:PROTECTION COVER
FOR USE WITH:HAN 6B CONNECTORS
CONNECTOR BODY MATERIAL:METAL BODY
PRODUCT RANGE:-
CONNECTOR SHELL SIZE:6B
ENCLOSURE MATERIAL:METAL ROHS COMPLIANT: NA

HARTING • RKD439737

09 30 006 5427
HAN B PROTECT COVER DIE CAST FOR HOOD CO
ROHS COMPLIANT: NA

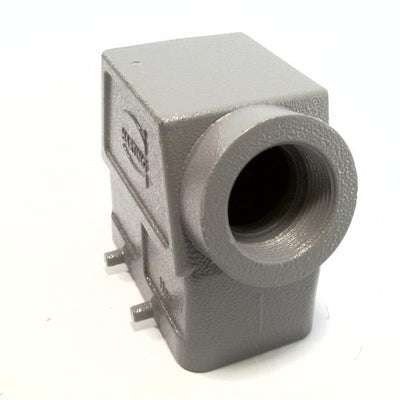

HARTING • RKD501424

09 30 010 0522
SIDE ENTRY HOOD
SIZE 10B
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:90
CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 10B INSER

HARTING • RKD545069

09 30 010 0523
HOOD
10B
SIDE ENTRY
ALUMINIUM
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:90°

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HARTING HAN B SERIES SIZE 10B INSERTS AND DOUBLE LEVER HOUSINGS
LOCKING TYPE:2 LEVER ROHS COMPLIANT: YES

HARTING • RKD661152

09 30 010 1296
HOOD HOUSING
HAN B
SIZE: 10 B
SINGLE LOCKING LEVER
2X PG 16 CABLE ENTRY
THERMO-PLASTIC COVER
-40 TO +125 DEGREES C
IP65
(HAN B BASE SURFACE LC 1 LEVER THERMOPLAS)

HARTING • RKD545071

09 30 016 0318
BULKHEAD HOUSING
SIZE 16B
METAL
PRODUCT RANGE:HAN B SERIES
CONNECTOR MOUNTING:BULKHEAD MOUNT
RECTANGULAR SHELL SIZE:16B
FOR USE WITH:HAN 16B HOO

HARTING • RKD307499

09 30 016 0440
HOOD
TOP ENTRY
16B
PG21
1 LEVER
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:180°

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HARTING HAN B SERIES HEAVY DUTY CONNECTORS
LOCKING TYPE:1 LEVER
RECTANGULAR SHELL SIZE:16BROHS COMPLIANT: YES

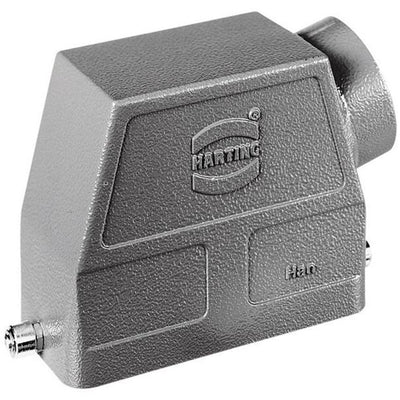

HARTING • RKD312051

09 30 016 0540
SIDE ENTRY HOOD
SIZE 16B
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:90¦

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 16B INSERTS &
BASES
LOCKING TYPE:1 LEVER
RECTANGULAR SHELL SIZE:16B
EXTERNAL DEPTH:93.5 ROHS COMPLIANT: YES

HARTING • RKD545073

09 30 016 0541
HOOD
HAN B SERIES
SIZE: 16B
CABLE ENTRY: 1XPG29
HIGH CONSTRUCTION
SINGLE LOCKER LEVER
SIDE ENTRY
POWDER COATED
RAL 7037 (DUST GREY)
IP65

HARTING • RKD501430

09 30 016 0581
HEAVY DUTY METAL HOOD
SIZE 16 B
1X PG 29 CABLE ENTRY
SIDE ENTRY
CENTRAL LOCKING LEVER (ON HOOD)
-40 TO +125 DEGREE C
IP65

HARTING • RKD312053

09 30 016 1420
TOP ENTRY HOOD
SIZE 16B
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:180
CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 16B INSER

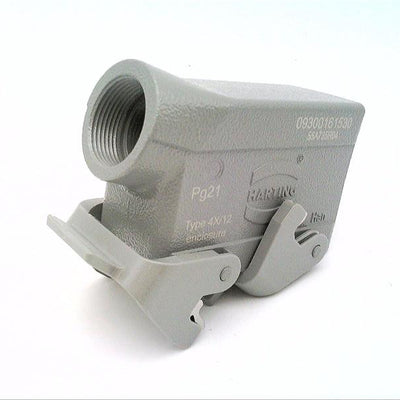

HARTING • RKD312055

09 30 016 1530
HOOD
SIDE ENTRY
16B
PG21
1 LEVER
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:75ª

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HARTING HAN SERIES HEAVY DUTY INSERTS &
MODULES
LOCKING TYPE:1 LEVER ROHS COMPLIANT: NA

HARTING • RKD661156

09 30 016 5422
PROTECTION COVER
METAL
16B
2 LEVER
ACCESSORY TYPE:PROTECTION COVER
FOR USE WITH:HAN 16B DUAL LEVER HOUSINGS
CONNECTOR BODY MATERIAL:METAL BODY

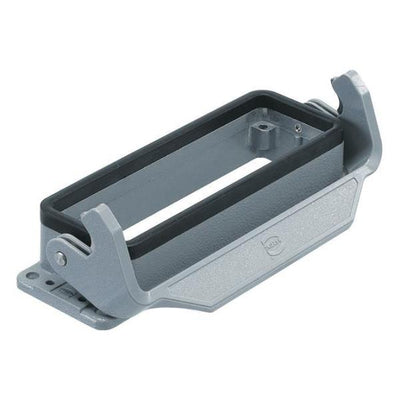

HARTING • RKD545075

09 30 024 0307
CONNECTOR HOUSING
HAN SIZE 24 B
LOW DESIGN
LONGITUDINAL TEMPLE LOCK
IP 65
HAN 24 B-AGG-LB

HARTING • RKD312057

09 30 024 0318
BULKHEAD HOUSING
SIZE 24B
METAL
PRODUCT RANGE:HAN B SERIES
CONNECTOR MOUNTING:BULKHEAD MOUNT
RECTANGULAR SHELL SIZE:24B
FOR USE WITH:HAN 24B HOO

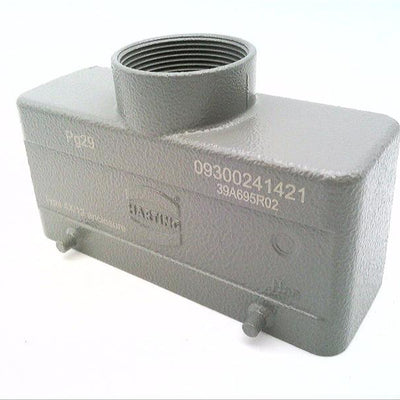

HARTING • RKD545077

09 30 024 1421
TOP ENTRY HOOD
HAN B
SIZE 24 B
LC 4 PEGS
PG 29 CABLE ENTRY
LOW CONTRUCTION
DOUBLE LOCKING LEVER
IP 65

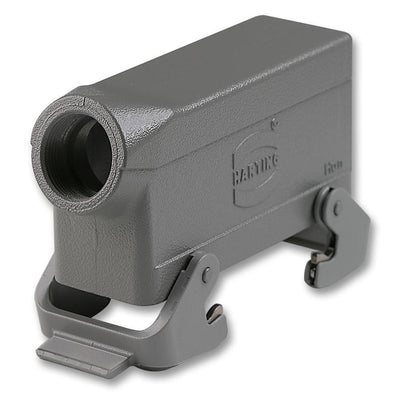

HARTING • RKD501432

09 30 024 1530
HOOD
SIZE 24B
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:90
CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 24B INSERTS &
BASES
LOCKING TYPE:2 LEVER
RECTANGULAR SHELL SIZE:24B
ACCESSORY TYPE:HOOD
ROHS COMPLIANT: YES

HARTING • RKD552031

09 30 024 1540
SIDE ENTRY HOOD
SIZE 24B
METAL
PRODUCT RANGE:HAN B SERIES
CABLE EXIT ANGLE:90¦

CONNECTOR BODY MATERIAL:ALUMINIUM BODY
FOR USE WITH:HAN 24B INSERTS &
BASES
LOCKING TYPE:1 LEVER
RECTANGULAR SHELL SIZE:24B
EXTERNAL DEPTH:120 ROHS COMPLIANT: NA

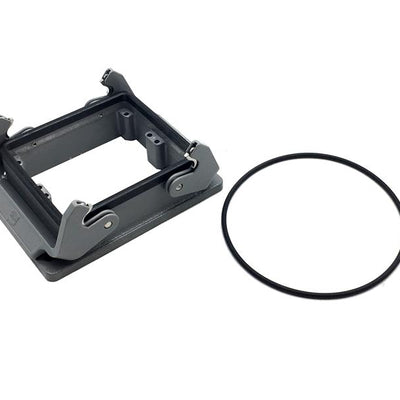

HARTING • RKD552033

09 30 032 0301
HEAVY DUTY CONNECTOR
SIZE 32 B
DOUBLE LOCKING LEVER
BULKHEAD MOUNTED
POLYCARBONATE/ STAINLESS STEEL MATERIAL
-40 TO +125 DEGREE C
IP65

HARTING • RKD661158

09 30 048 0301
HEAVY DUTY CONNECTOR BASE
HAN B SERIES
WITH THERMO-PLASTIC COVER
O-RING SEAL
LOW PROFILE
BULKHEAD MOUNT
-40 TO +125 DEGREE C
IP65

HARTING • RKD439739

09 32 000 6105
RECTANGULAR POWER CONTACT
HAN C SERIES
SILVER PLATED CONTACTS
COPPER
PIN
CRIMP
14 AWG
ROHS COMPLIANT: YES

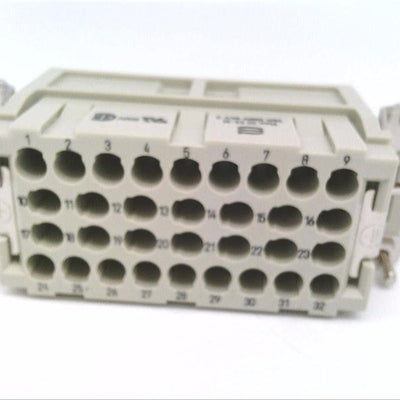

HARTING • RKD312061

09 32 032 3001
HEAVY DUTY CONNECTOR INSERT
32+PE
LESS CONTACTS
HAN EE SERIES
32
4
PLUG
16B
ROHS COMPLIANT: YES

HARTING • RKD661162

09 33 000 6116
CONTACT
PIN
16AWG
CRIMP
PRODUCT RANGE:HAN E SERIES
CONTACT GENDER:PIN
WIRE SIZE AWG MAX:16AWG
CONTACT TERMINATION TYPE:CRIMP
CURRENT RATING:16
