Industrial Automation Products

INVERTEK •

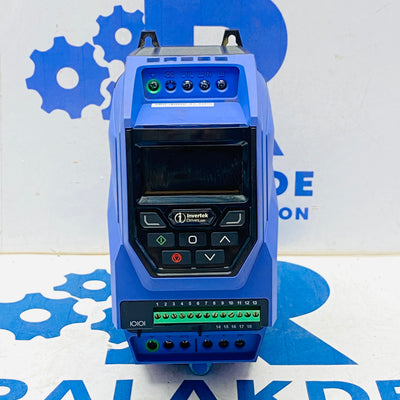

ODP-2-24220-3KF42-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
FRAME SIZE 4
ODP-2
OUTPUT: 30A
POWER RATING 2.2KW / 3HP
INPUT/OUTPUT: 380-480V 3F
IP20
TFT KEYPAD
EMC FILTER C1/2/3
DIMENSION 16.5 X 6.8 X9.5"

INVERTEK • RKD2004904

ODP-2-24400-3KF42-SN
DISCONTINUED BY MANUFACTURER
AC VARIABLE SPEED DRIVE
OPTIDRIVE P2
HIGH PERFORMANCE
PANEL MOUNT
WITH STO
400 V
3 PHASE INPUT
3 PHASE OUTPUT 4 KW
IP20

INVERTEK • RKD2237685

ODP-2-24400-3KF4X-TN
DISCONTINUED BY MANUFACTURER
AC INVERTER DRIVE
11.2 AMP
3 PHASE
380-480 VAC
50/60 HZ
WALL MOUNT40 DEGREE MAX
2 ANALOGUE INPUTS
IP66

INVERTEK • RKD2226714

ODP-2-26010-3H04B-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
PERFORMANCE
FRAME SIZE 2
ODP-2
2.1 AMPS
0.75 KW
1HP
500-600V 3F
IP66
NEMA4X
KEYPAD+POT
FSR
DISCONNECT
EMC FILTER N

INVERTEK • RKD2104071

ODP-2-26010-3H04Y-TN
DRIVE
2 FRAME SIZE
2.1 AMP
0.75 POWER RATING KW
1 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP66/NEMA4X INDOOR
OLED KEYPAD+POT
FSR
DISCONNECT
NO EMC FILTER
OPTIDRIVE™ P2
PERFORMANCE
10.1X7.4X9.4 IN.

INVERTEK • RKD2170387

ODP-2-26050-3H04B-MN
DRIVE
2 FRAME SIZE
6.5 AMP
4 POWER RATING KW
5 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP20
LED KEYPAD

INVERTEK • RKD1959259

ODP-2-34075-3KF42-SN
OPTIDRIVE
P2
HIGH
PERFORMANCE 0.75KW
-
11KW
IP20
PANEL
MOUNT 380-480V
THREE
PHASE
INPUT
THREE
PHASE
OUTPUT

INVERTEK • RKD1959262

ODP-2-34110-3KF42-SN
OPTIDRIVE
P2
HIGH
PERFORMANCE 0.75KW
-
11KW
IP20
PANEL
MOUNT 380-480V
THREE
PHASE
INPUT
THREE
PHASE
OUTPUT

INVERTEK • RKD2237688

ODP-2-36150-3H042-SN
DISCONTINUED BY MANUFACTURER
DRIVE
3 FRAME SIZE
17 AMP
11 POWER RATING KW
15 HP
500~600 VOLT 3F INPUT VOLTAGE
500~600 VOLT 3F OUTPUT VOLTAGE
IP20
LED KEYPAD
NO EMC FILTER
OPTIDRIVE P2
PERFORMANCE
10.3X5.2X8.1 IN.

INVERTEK • RKD2237691

ODP-2-36200-3H04A-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE™ P2
PERFORMANCE
FRAME SIZE 3
ODP-2
OUTPUT CURRENT 22 AMPS
POWER RATING 15 KW / 20HP
INPUT VOLTAGE 500-600V 3F
OUTPUT VOLTAGE 500-600V 3F
IP66/NEMA4X INDOOR/OUTDOOR
TFT KEYPAD
EMC FILTER NONE
DIMENSION 12.2X8

INVERTEK • RKD1763401

ODP-2-42100-3HF42-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
FRAME SIZE 4
ODP-2
OUTPUT: 30A
POWER RATING 7.5KW / 10HP
INPUT/OUTPUT: 200-240V 3F
IP20
TFT KEYPAD
EMC FILTER C1/2/3
DIMENSION 16.5 X 6.8 X9.5"

REPLACES HF4302-7A5

INVERTEK • RKD2237694

ODP-2-42150-3HF42-MN
DRIVE
VARIABLE FREQ
EMC FILTER
TFT DISPLAY
15HP
46A
200-240V
3PH
REPLACEMENT FOR SUMITOMO HF4302

INVERTEK • RKD1763404

ODP-2-42150-3HF4B-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE™ P2
PERFORMANCE
FRAME SIZE 4
ODP-2
OUTPUT CURRENT 46 AMPS
POWER RATING 11 KW / 15HP
INPUT VOLTAGE 200-240V 3F
OUTPUT VOLTAGE 200-240V 3F
IP66/NEMA4X INDOOR/OUTDOOR
TFT KEYPAD+POT
FSR
DISCONNECT
EMC FILTER C1/

INVERTEK • RKD2237697

ODP-2-44150-3KF42-MN
INVERTER DRIVE
OPTIDRIVE P2
3 PHASE
380-480 VAC INPUT
50/60 HZ INPUT
37 AMP INPUT
0-500 VAC OUTPUT
0-500 HZ OUTPUT
30 AMP OUTPUT
15 KW
TFT DISPLAY
REPLACES (ODP-2-44150-3KF42-TN)

INVERTEK • RKD2104074

ODP-2-44150-3KF42-TN
DISCONTINUED BY MANUFACTURER
INVERTER DRIVE
OPTIDRIVE P2
3 PHASE
380-480 VAC INPUT
50/60 HZ INPUT
37 AMP INPUT
0-500 VAC OUTPUT
0-500 HZ OUTPUT
30 AMP OUTPUT
15 KW
OLED TEXT DISPLAY
REPLACED BY (ODP-2-44150-3KF42-MN)

INVERTEK • RKD2004907

ODP-2-44200-3HF4N-TN
DRIVE
4 FRAME SIZE
30 AMP
15 POWER RATING KW
20 HP
380~480 VOLT 3F INPUT VOLTAGE
380~480 VOLT 3F OUTPUT VOLTAGE
IP55/NEMA12
OLED KEYPAD
EMC FILTER
OPTIDRIVE™ P2
PERFORMANCE
17.7X6.7X9.9 IN.

INVERTEK • RKD2106114

ODP-2-44220-3KF4N-SN
DISCONTINUED BY MANUFACTURER
OPTIDRIVE
NON-SWITCHED INVERTER
INTERNAL EMC FILTER AND BRAKE TRANSISTOR
3 PHASE INPUT/OUTPUT
415V
22KW
OLED

INVERTEK • RKD2170390

ODP-2-44250-3HF4N-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
PERFORMANCE
FRAME SIZE 4
ODP-2
OUTPUT CURRENT 39 AMPS
POWER RATING 18.5 KW / 25HP
INPUT VOLTAGE 380-480V 3F
OUTPUT VOLTAGE 380-480V 3F
IP55/NEMA12
TFT KEYPAD
EMC FILTER C1/2/3
DIMENSION 17.7X6.7X9.9 INCH

INVERTEK • RKD2226717

ODP-2-46400-3H042-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE™ P2
PERFORMANCE
FRAME SIZE 4
ODP-2
OUTPUT CURRENT 43 AMPS
POWER RATING 30 KW / 40HP
INPUT VOLTAGE 500-600V 3F
OUTPUT VOLTAGE 500-600V 3F
IP20
TFT KEYPAD
EMC FILTER NONE
DIMENSION 16.5X6.8X9.5 INCHES

INVERTEK • RKD1959265

ODP-2-54050-3HF42-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2 PERFORMANCE
FRAME SIZE 5
ODP-2
OUTPUT CURRENT 72 AMPS
POWER RATING 37 KW / 50HP
INPUT VOLTAGE 380-480V 3F
OUTPUT VOLTAGE 380-480V 3F
IP20
TFT KEYPAD
EMC FILTER C1/2/3

INVERTEK • RKD2104077

ODP-2-54050-3HF4N-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
PERFORMANCE
FRAME SIZE 5
ODP-2
OUTPUT CURRENT 72 AMPS
POWER RATING 37 KW / 50HP
INPUT VOLTAGE 380-480V 3F
OUTPUT VOLTAGE 380-480V 3F
IP55/NEMA12
TFT KEYPAD
EMC FILTER C1/2/3
REPLACES ODP-2-54050-3HF4N-TN

INVERTEK • RKD2226720

ODP-2-64055-3KF42-MN
SUPPLY VOLTAGE 380-480 V
INPUT PHASES 3
SUPPLY CURRENT CONTINUOUS 102.2 A
SUPPLY FUSE OR MCB (TYPE B) 125 A
MOTOR OUTPUT RATING 55 KW (75 HP)
OUTPUT VOLTAGE 0 SUPPLY VOLTAGE
OUTPUT CURRENT 110 A
V

INVERTEK • RKD2226723

ODP-2-64060-3HF4N-MN
VARIABLE FREQUENCY DRIVE
OPTIDRIVE P2
PERFORMANCE
FRAME SIZE 6
ODP-2
OUTPUT CURRENT 90 AMPS
POWER RATING 45 KW / 60HP
INPUT VOLTAGE 380-480V 3F
OUTPUT VOLTAGE 380-480V 3F
IP55/NEMA12
TFT KEYPAD
EMC FILTER C3
DIMENSION 34.1X13X13.1 INCHES

INVERTEK • RKD2237700

ODP-2-64075-3HF42-MN
DRIVE
6A FRAME SIZE
110 AMP
55 POWER RATING KW
75 HP
380~480 VOLT 3F INPUT VOLTAGE
380~480 VOLT 3F OUTPUT VOLTAGE
IP20
TFT KEYPAD
EMC FILTER
OPTIDRIVE™ P2
PERFORMANCE
24.1X11.3X12.6 IN.
