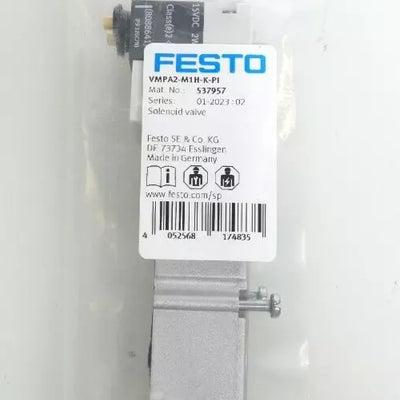

FESTO • DTGEU10552

VMPA2-M1H-K-PI
SOLENOID VALVE
2 X 3/2 WAY/CLOSED
MONOSTABLE
20 MM VALVE SIZE
3-10 BAR
500-550 L/MIN
24 VDC

FESTO • RKD1822208

VMPA2-M1H-K-PI -SA
SOLENOID VALVE
VMPA2 SERIES
2X3/2-WAY
MONOSTABLE
CLOSED
24 VDC
3-10 BAR
IP54
(555893)

FESTO • RKD1801690

VMPA2-M1H-K-S-G1/8-PI
SOLENOID VALVE
VMPA SERIES
2X3/2
CLOSED
MONOSTABLE VALVE FUNCTION
20 MM VALVE SIZE
500 L/MIN STANDARD NOMINAL FLOW RATE
3-10 BAR OPERATING PRESSURE
3-8 BAR PILOT PRESSURE
M5 PILOT AIR PORTS
G1/8 PNEUMATIC CONNECTIONS
537977

FESTO • RKD1822211

VMPA2-M1H-KS-PI
SOLENOID AIR VALVE
24VDC
0.9-8 BAR
IP65
FLOW DIRECTION: REVERSIBLE

FESTO • RKD1822214

VMPA2-M1H-M-G1/8-PI
SOLENOID VALVE
VMPA SERIES
5/2
MONOSTABLE VALVE FUNCTION
20 MM VALVE SIZE
700 L/MIN STANDARD NOMINAL FLOW RATE
G1/8 PNEUMATIC WORKING PORT
3-8 BAR OPERATING PRESSURE
3-8 BAR PILOT PRESSURE
G1/8 PNEUMATIC CONNECTIONS
537963

FESTO • RKD1538516

VMPA2-M1H-M-PI
AIR SOLENOID VALVE
SERIES VMPA
5/2
MONOSTABLE
ELECTRICAL ACTUATION
670 L/MIN NOMINAL FLOW RATE
-0.9-10 BAR OPERATING PRESSURE
PNEUMATIC SPRING RESET
24 VDC
IP65
(537952)

FESTO • RKD1760992

VMPA2-M1H-MS-PI
SOLENOID VALVE
VMPA SERIES
5/2
MONOSTABLE VALVE FUNCTION
ELECTRICAL ACTUATION
20 MM VALVE SIZE
670-840 L/MIN STANDARD NOMINAL FLOW RATE
-0.9-8 BAR OPERATING PRESSURE
3-8 BAR PILOT PRESSURE
0.65 NM MAX. TIGHTENING TORQUE
571333

FESTO • RKD1634085

VMPA2-M1H-N-PI
SOLENOID VALVE
3-10BAR OPERATING PRESSURE
20MM VALVE SIZE

FESTO • RKD1538519

VMPA2-M1H-X-PI
SOLENOID VALVE
24 VSC
VALVE FUNCTION: 3/2-WAY / CLOSED / MONOSTABLE
TYPE OF ACTUATION: ELECTRIC
VALVE SIZE: 20 MM
470 L/MIN
0.9 BAR...10 BAR
IP65
537961

FESTO • RKD1822217

VMPA2-MPM-EMM-2
ELECTRONIC MODULE
FOR VALVE TERMINAL MPA-S
WITH MODULAR MULTI-PIN PLUG CONNECTION
FOR 2 SOLENOID COILS
2VALVE POSITION
100MA UP TO 30MS

FESTO • RKD1801693

VMPA2-MPM-EMM-4
ELECTRICAL MODULE
(2) VALVE POSITIONS MAX.
(4) SOLENOID COILS MAX.
100 MA TO 30 MS PICK-UP CURRENT PER SOLENOID COIL
20 MA AFTER 30 MS CURRENT WITH CURRENT REDUCTION
537986

FESTO • RKD266284

VMPA2-RP
COVER PLATE
BLANKING PLATE
FOR MPA-S SERIES VALVE MANIFOLDS

FESTO • RKD1760997

VMPAC-AP-14-1
MPAC
CLEAN DESIGN VT TYPE 35
SUB-BASE

FESTO • RKD1760999

VMPAC-AP-14-2
SUB-BASE
VMPA SERIES
26.8 MM WIDTH DIMENSION
1 VALVE POSITION MAX.
-0.9-8 BAR OPERATING PRESSURE
3-8 BAR PILOT PRESSURE
G1/4 PNEUMATIC CONNECTIONS
576573

FESTO • RKD1538524

VMPAC-VC-MO-14-1
MPAC
CLEAN DESIGN VT TYPE 35
COVERING

FESTO • RKD1702992

VMPAC-ZAE-14
TIE ROD
VMPA SERIES
1.7 NM MAX. TIGHTENING TORQUE
STAINLESS STEEL BRACKET MATERIAL
8025281

FESTO • RKD1538526

VMPAC-ZAH-66
SLEEVE
VMPA SERIES
1.7 NM MAX. TIGHTENING TORQUE
STAINLESS STEEL BRACKET MATERIAL
8025285

FESTO • RKD1810454

VMPAL-AP-10
SUB-BASE
NO DUCT SEPARATION TO THE RIGHT OF SUB-BASE 1-40
INDIVIDUAL
WITHOUT ELECTRICAL MANIFOLD MODULE
WITHOUT CARTRIDGE
3-8 BAR PILOT PRESSURE
-0.9-10 BAR OPERATING PRESSURE
HIGH CORROSION STRESS (3)
REVERSIBLE

FESTO • RKD1810456

VMPAL-AP-10-T1
SUB-BASE
"
T"
DUCT SEPARATION TO THE
RIGHT OF SUB-BASE 1-40
INDIVIDUAL
WITHOUT ELECTRICAL MANIFOLD MODULE
WITHOUT CARTRIDGE
DUCT 1 SEPARATED
3...8 BAR PILOT PRESSURE
HIGH CORROSION STRESS (3)

FESTO • RKD1810458

VMPAL-AP-10-T135
ACCESSORY
SUB-BASE
WIDTH=10
7 MM
LENGTH=107
3 MM

FESTO • RKD1761011

VMPAL-AP-14
PNEUMATIC SUB BASE ACCESSORY
1 VALVE SPACES
0.9-10 BAR OPERATING PRESSURE
CONTROL PRESSURE: 3-8 BAR
2 VALVE COILS

FESTO • RKD1538539

VMPAL-AP-14-T1
SUB-BASE
VMPAL SERIES
14 MM VALVE SIZE
1 VALVE POSITION MAX.
REVERSIBLE FLOW DIRECTION
-0.9-10 BAR OPERATING PRESSURE
560975

FESTO • RKD1810460

VMPAL-AP-14-T135
SUB-BASE
14 MM VALVE SIZE
REVERSIBLE FLOW DIRECTION
OPERATING PRESSURE: -0.9 TO 10 BAR
AMBIENT TEMPERATURE: -5 TO +50 DEGREES C
(560979)

FESTO • RKD1703002

VMPAL-AP-20
SUB-BASE
SERIES VMPAL
20 MM VALVE SIZE
1 VALVE POSITION MAX.
-0.9-10 BAR OPERATING PRESSURE
PNEUMATIC CONNECTIONS FOR 18 MM CARTRIDGE
(560974)
