Industrial Automation Products

FESTO • RKD1791347

VPPM-6L-L-1-G18-0L10H-A4N
PRESSURE REGULATOR
PROPORTIONAL
1400 L/MIN
3-WAY
PILOT OPERATED
6 MM SUPPLY
4.5 MM EXHAUST

FESTO • RKD1634145

VPPM-6L-L-1-G18-0L10H-A4N-S1
PROPORTIONAL PRESSURE REGULATOR
6 MM
ELECTRIC
3 WAY
0 TO 11 BAR
1400 L/MIN FLOW RATE
300 MA
M12 8 PIN CONNECTION
3X G1/8 PNEUMATIC PORTS
COMPRESSED AIR TO INERT GASES
0 TO +60 DEGREES C
IP65

FESTO • RKD1703074

VPPM-6L-L-1-G18-0L10H-A4P
PROPORTIONAL-PRESSURE REGULATOR
6 MM
0 TO 10 VDC
0 TO 60 DEG C
FEMALE PORT

FESTO • RKD1822297

VPPM-6L-L-1-G18-0L10H-A4P-S1
PROPORTIONAL-PRESSURE REGULATOR
PILOT-CONTROLLED
MECHANICAL SPRING
3-WAY
NPN
7 W
300 MA
0-8 BAR
MOUNTING POSITION: ANY

FESTO • RKD1822300

VPPM-6L-L-1-G18-0L10H-A4P-S1C1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.1-10 BAR PRESSURE REGULATION RANGE
1400 L/MIN STANDARD NOMINAL FLOW RATE
558336

FESTO • RKD1810542

VPPM-6L-L-1-G18-0L10H-LK-S1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.1-10 BAR PRESSURE REGULATION RANGE
1400 L/MIN STANDARD NOMINAL FLOW RATE
8024260

FESTO • RKD1634150

VPPM-6L-L-1-G18-0L10H-V1N
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.1-10 BAR PRESSURE REGULATION RANGE
1400 L/MIN STANDARD NOMINAL FLOW RATE
542235

FESTO • RKD1761082

VPPM-6L-L-1-G18-0L10H-V1P
PROPORTIONAL PRESSURE REGULATOR
0-11 BAR
21.6-26.4 VDC
300 MA
1400 L/MIN FLOW RATE
PNP
3 X G1/8 PORTS
M12 8 PIN CONNECTOR
6 MM SUPPLY SIZE
4.5 MM EXHAUST SIZE
COMPRESSED AIR
0 TO +50 DEGREE C
IP65
(554044)

FESTO • RKD1761085

VPPM-6L-L-1-G18-0L10H-V1P-S1
PROPORTIONAL PRESSURE REGULATOR
PILOT ACTUATED
SPRING RESET
3-WAY
LED DISPLAY
0.1-10 BAR REGULATION RANGE
1400 L/MIN FLOW RATE
21.6-26.4 VDC
PNP SWITCH OUTPUT
G1/8 PNEUMATIC CONNECTION
(554040)

FESTO • RKD1703077

VPPM-6L-L-1-G18-0L10H-V1P-S1C1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.1-10 BAR PRESSURE REGULATION RANGE
1400 L/MIN STANDARD NOMINAL FLOW RATE
558335

FESTO • RKD1761088

VPPM-6L-L-1-G18-0L2H-A4N
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.02-2 BAR PRESSURE REGULATION RANGE
380 L/MIN STANDARD NOMINAL FLOW RATE
542236

FESTO • RKD1634153

VPPM-6L-L-1-G18-0L2H-A4N-S1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.02-2 BAR PRESSURE REGULATION RANGE
380 L/MIN STANDARD NOMINAL FLOW RATE
542230

FESTO • RKD1703080

VPPM-6L-L-1-G18-0L2H-A4P-S1C1
MODULAR PRESSURE REGULATOR
6MM WIDTH
IN-LINE VALVE
LOW DYNAMIC RESPONSE
3/2-WAY VALVE
NORMALLY CLOSED
G1/8 THREAD
0-2 BAR
CURRENT TYPE 4-20MA
PNP SWITCHING
OVERALL ACCURACY 1%
WITH LCD / PRESSURE UNIT / VARIABLE

FESTO • RKD1791350

VPPM-6L-L-1-G18-0L2H-LK-S1
PRESSURE REGULATOR
6 MM NOMINAL WIDTH
4.5 MM EXHAUST NOMINAL WIDTH
ELECTRICAL ACTUATION
SOFT SEALING
2-WAY
LED DISPLAY
0.002-0.2 MPA

FESTO • RKD1634156

VPPM-6L-L-1-G18-0L6H-A4N
PRESSURE REGULATOR
PROPORTIONAL
0 TO 6/8 BAR
24 V
ANALOG AND DIGITAL OUTPUTS

FESTO • RKD1822303

VPPM-6L-L-1-G18-0L6H-A4N-S1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.06-6 BAR PRESSURE REGULATION RANGE
900 L/MIN STANDARD NOMINAL FLOW RATE
542231

FESTO • DTGEU11354

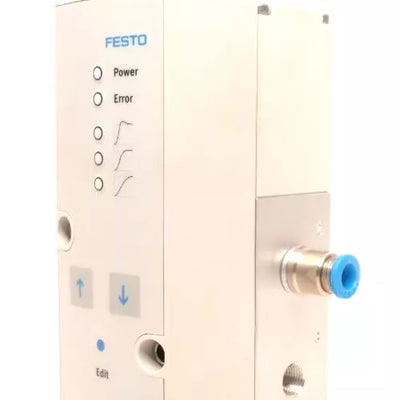

VPPM-6L-L-1-G18-0L6H-A4P
PRESSURE REGULATOR
PROPORTIONAL
6MM NOMINAL DIAMETER
MODULAR
IN-LINE VALVE
FREELY MOUNTABLE
LOW DYNAMIC RESPONSE
G1/8 THREAD
0-6BAR PRESSURE VALUE OF REGULATION RANGE
4-20MA
POSITIVE SWITCHING

FESTO • RKD1801746

VPPM-6L-L-1-G18-0L6H-A4P-C1
PROPORTIONAL PRESSURE CONTROL VALVE
SERIES VPPM
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
0.06-6 BAR REGULATION RANGE
900 L/MIN NOMINAL FLOW RATE
21.6-26.4 VDC
300 MA
8-PIN
M12
PLUG
G1/8 PNEUMATIC CONNECTIONS
(558338)

FESTO • RKD1791353

VPPM-6L-L-1-G18-0L6H-A4P-S1
PROPORTIONAL-PRESSURE REGULATOR
3 WAY
G1/8
0-6 BAR REG RANGE
PNP
1% ACC
LED STANDARD OPERATOR UNIT

FESTO • RKD1801749

VPPM-6L-L-1-G18-0L6H-A4P-S1C1
PROPORTIONAL PRESSURE REGULATOR
6MM NOMINAL DIAMETER
MODULAR
IN-LINE VALVE
FREELY MOUNTABLE
LOW DYNAMIC RESPONSE
G1/8 THREAD
0-6 BAR PRESSURE VALUE OF REGULATION RANGE
4-20 MA
POSITIVE SWITCHING
1% ACCURACY
WITH LCD
PRESSURE UNIT VARIABLE

FESTO • RKD1801752

VPPM-6L-L-1-G18-0L6H-LK-S1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.06-6 BAR PRESSURE REGULATION RANGE
900 L/MIN STANDARD NOMINAL FLOW RATE
8024259

FESTO • RKD1810545

VPPM-6L-L-1-G18-0L6H-V1N
PROPORTIONAL-PRESSURE REGULATOR
21.6-26.4 VDC
7 W
300 MA
NPN
0.6-6 BAR
900 L/MIN FLOW RATE
3X G1/8 CONNECTION PORTS
3-WAY PROPORTIONAL PRESSURE REGULATOR
ELECTRIC ACTUATION
COMPRESSED AIR/INERT GASES
0 TO +50 DEGREE C
IP65
542234

FESTO • RKD1703083

VPPM-6L-L-1-G18-0L6H-V1N-C1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.06-6 BAR PRESSURE REGULATION RANGE
900 L/MIN STANDARD NOMINAL FLOW RATE
558346

FESTO • RKD1634159

VPPM-6L-L-1-G18-0L6H-V1N-S1
PROPORTIONAL PRESSURE CONTROL VALVE
VPPM SERIES
6 MM NOMINAL WIDTH PRESSURIZATION
ELECTRICAL ACTUATION
MECHANICAL SPRING RESET
PILOT-CONTROLLED
0.06-6 BAR PRESSURE REGULATION RANGE
900 L/MIN STANDARD NOMINAL FLOW RATE
542228
