Industrial Automation Products

FESTO • RKD1801819

VSVA-B-P53U-ZD-A2-1T1L
SOLENOID VALVE
5/3 PRESSURE
24 VDC
1.6 W
450 L/MIN STANDARD NOMINAL FLOW RATE
-0.9 TO 10 BAR OPERATING
3 TO 10 BAR PILOT PRESSURE
G1/8 PORT
IP65
LED INDICATOR
DIE-CAST ALUMINIUM HOUSING
539186

FESTO • RKD1703139

VSVA-B-P53U-ZD-A2-2AT1L
DISCONTINUED BY MANUFACTURER
SOLENOID VALVE
5/3 PRESSURISED
FLOW 450 I/MIN
(539173)

FESTO • RKD1801822

VSVA-B-P53U-ZD-D1-1T1L
SOLENOID VALVE
5/3 PRESSURIZED
42 MM WIDTH
SUBBASE MOUNTING
3-10 BAR

FESTO • RKD1634234

VSVA-B-P53U-ZD-D2-1T1L
SOLENOID VALVE
5/3-WAY PRESSURISED
24 VDC
2800 L/MIN STANDARD NOMINAL FLOW RATE
-0.9 TO 10 BAR OPERATING PRESSURE
SUB-BASE SIZE 2 TO ISO 5599-2
G1/2
DIE-CAST ALUMINIUM
IP65
(560822)

FESTO • RKD1703141

VSVA-B-P53U-ZH-A1-1R5L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
5/3-WAY
MID-POSITION PRESSURISED
WITHOUT SPRING
EXTERNAL
NON-DETENTING MANUAL OVERRIDE
26 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL PLUG M12
LED

FESTO • RKD1822374

VSVA-B-T22C-AZD-A1-1T1L
AIR SOLENOID VALVE
2X2/2 CLOSED MONOSTABLE
24VDC
3-10BAR
0.3-1MPA

FESTO • RKD1791415

VSVA-B-T22C-AZD-D2-1T1L
VTSA WITH CPX CLASSIC
VT TYPE 44/45
SOLENOID VALVE

FESTO • RKD1634237

VSVA-B-T22CV-AZD-A2-1T1L
SOLENOID VALVE
2X2/2-WAY
MONOSTABLE
CLOSED
-0.9 TO 10 BAR OPERATING PRESSURE
3 TO 10 BAR PILOT PRESSURE
500 L/MIN STANDARD NOMINAL FLOW RATE
24 VDC
PISTON GATE VALVE
PNEUMATIC SPRING
DIE-CAST ALUMINIUM HOUSING
IP65
(561159)

FESTO • RKD1761155

VSVA-B-T32C-A-A2-P1
SOLENOID VALVE
VSVA SERIES
ISO 15407-1/2
SUB-BASE
2 SINGLE SOLENOID VALVES (1 HOUSING)
3/2-WAY
CLOSED
PNEUMATIC SPRING
INTERNAL AIR SUPPLY
W/O MANUAL OVERRIDE
ISO SIZE 2
W/O PILOT VALVE
W/O SIGNAL STATUS
W/O SENSOR

FESTO • RKD1822377

VSVA-B-T32C-AD-D1-1R5L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
2X3/2-WAY
NORMALLY CLOSED
PNEUMATIC SPRING
INTERNAL
NON-DETENTING
DETENTING MANUAL OVERRIDE
42 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL PLUG M12
LED

FESTO • RKD1822382

VSVA-B-T32C-AD-D2-1R5L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
2X3/2-WAY
NORMALLY CLOSED
PNEUMATIC SPRING
INTERNAL
NON-DETENTING
DETENTING MANUAL OVERRIDE
52 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL PLUG M12
LED

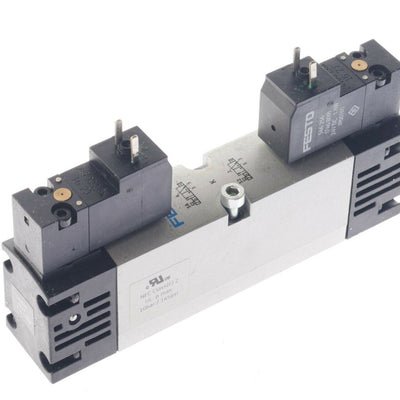

FESTO • NKEU3072

VSVA-B-T32C-AH-A1-1C1
SOLENOID VALVE
VSVA SERIES
ISO 15407-1/2
SUB-BASE
2 SINGLE SOLENOID VALVES (1 HOUSING)
3/2-WAY
CLOSED
PNEUMATIC SPRING
INTERNAL AIR SUPPLY
W/ MANUAL OVERRIDE
ISO SIZE 1
24 VDC
TYPE C
W/O SIGNAL STATUS
W/O SENSOR

FESTO • RKD1761161

VSVA-B-T32C-AH-A1-1R2L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
2X3/2-WAY
NORMALLY CLOSED
PNEUMATIC SPRING
INTERNAL
NON-DETENTING MANUAL OVERRIDE
26 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL CONNECTOR M8
LED

FESTO • RKD1761164

VSVA-B-T32C-AH-A1-1R5L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
2X3/2-WAY
NORMALLY CLOSED
PNEUMATIC SPRING
INTERNAL
NON-DETENTING MANUAL OVERRIDE
26 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL PLUG M12
LED

FESTO • RKD1810621

VSVA-B-T32C-AH-A2-1R5L
SOLENOID VALVE
STANDARDS-BASED VALVE
SUB-BASE
2X3/2-WAY
NORMALLY CLOSED
PNEUMATIC SPRING
INTERNAL
NON-DETENTING MANUAL OVERRIDE
18 MM PNEUMATIC CONNECTION
24 VDC
CENTRAL PLUG M12
LED

FESTO • RKD1801825

VSVA-B-T32C-AZD-A1-1T1L
SOLENOID VALVE
ISO15407-2
3/2
26MM
EXT PILOT
24VDC
2.5M
LED

FESTO • RKD1761167

VSVA-B-T32C-AZD-A1-2AT1L
DISCONTINUED BY MANUFACTURER
SOLENOID VALVE
VSVA SERIES
(2) 3/2-WAY
SINGLE SOLENOID
NORMALLY CLOSED
539137

FESTO • MDJDUK929

VSVA-B-T32C-AZD-A2-1T1L
SOLENOID VALVE
24 VDC
45-145 PSI
3-10 BAR
IP65
STANDARD NOMINAL FLOW RATE: 400 L/MIN
DIE-CAST ALUMINUM

FESTO • RKD1634240

VSVA-B-T32C-AZD-A2-2AT1L
DISCONTINUED BY MANUFACTURER
SOLENOID VALVE
AIR
400L/MIN
2X3/2 FUNCTION
CLOSED
MONOSTABLE

FESTO • RKD1538677

VSVA-B-T32C-AZD-D1-1R5L
VSVA
ISO 15407-1
CENTRAL PLUG
SOLENOID VALVE

FESTO • RKD1810626

VSVA-B-T32C-AZD-D1-1T1L
SOLENOID VALVE
2 X 3/2 CLOSED
MONOSTABLE
42 MM WIDTH
1200 L/MIN NOMINAL FLOW RATE
3-10 BAR

FESTO • RKD1810629

VSVA-B-T32C-AZD-D2-1T1L
SOLENOID VALVE
3-10 BAR
40-145 PSI
24 VDC
STANDARD NOMINAL FLOW RATE - 2400 L/MIN

FESTO • RKD1634246

VSVA-B-T32C-AZH-A1-1C1
SOLENOID VALVE
VSVA SERIES
ISO 15407-1/2
SUB-BASE
2 SINGLE SOLENOID VALVES (1 HOUSING)
3/2-WAY
CLOSED
PNEUMATIC SPRING
EXTERNAL AIR SUPPLY
W/ MANUAL OVERRIDE
ISO SIZE 1
24 VDC
TYPE C
W/O SIGNAL STATUS
W/O SENSOR

FESTO • RKD1822385

VSVA-B-T32C-AZH-A2-1R2L
SOLENOID VALVE
VSVA SERIES
ISO 15407-1/2
SUB-BASE
2 SINGLE SOLENOID VALVES (1 HOUSING)
3/2-WAY
CLOSED
PNEUMATIC SPRING
EXTERNAL AIR SUPPLY
W/ MANUAL OVERRIDE
ISO SIZE 2
24 VDC
CENTRAL PLUG (M8)
W/ LED
W/O SENSOR
