Industrial Automation Products

FESTO • RKD70015

CPE18-PRS-3/8-6
MANIFOLD BLOCK
GRID DIMENSION=26 MM
ASSEMBLY POSITION=ANY
MAX. NUMBER OF VALVE POSITIONS=6
MAX. NO. OF PRESSURE ZONES=2
OPERATING PRESSURE=-0
9 10 BAR

FESTO • RKD231884

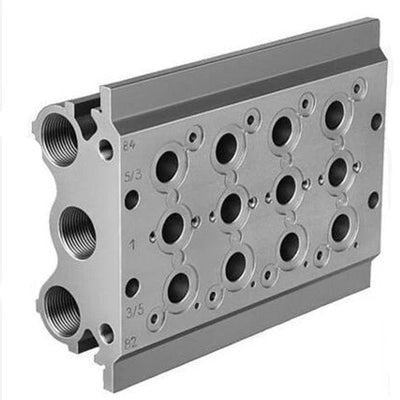

CPE18-PRS-3/8-7
MANIFOLD BLOCK FOR CPE VALVES
GRID DIMENSION 26 MM
ASSEMBLY POSITION ANY
MAX. NUMBER OF VALVE POSITIONS 7
MAX. NO. OF PRESSURE ZONES 2
OPERATING PRESSURE -13-145 PSI

FESTO • RKD70017

CPE18-PRS-3/8-8
MANIFOLD BLOCK
CPE18 SERIES
8 VALVE POSITIONS MAX.
2 PRESSURE ZONES MAX.
725 PSI BURST PRESSURE
-0.9-10 BAR OPERATING PRESSURE
INTERNAL THREAD MOUNTING TYPE
G3/8 PNEUMATIC CONNECTIONS
543845

FESTO • DTGEU7009

CPE18-PRS-EP
END PLATE
MODERATE CORROSION STRESS
WITH THROUGH HOLEWITH TOP-HAT RAIL
G1/2

FESTO • RKD231886

CPE18-PRSB
CPE10/14/18/24
COVER PLATE

FESTO • RKD135670

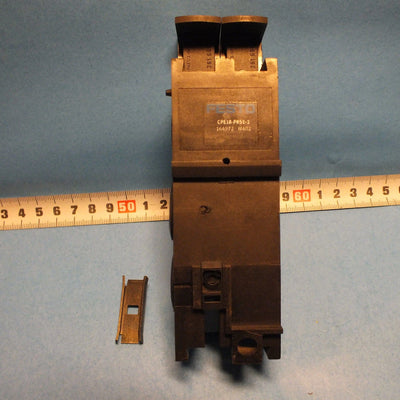

CPE18-PRSE-2
MANIFOLD BLOCK
2 VALVE POSTIONS
2 MODERATE CORROSION STRESS
G1/2 PNEUMATIC CONNECTION
COMPRESSED AIR TO ISO
LUBRICATED
THROUGH HOLE
H RAIL MOUNTING

FESTO • RKD280602

CPE18-PRSEO-2
MANIFOLD BLOCK
FOR CPE18 VALVES W/OPEN PRS DUCTS
2 STATIONS

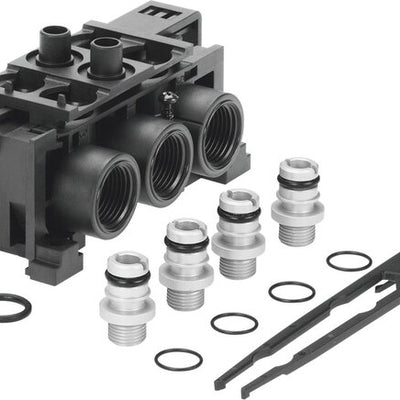

FESTO • RKD135677

CPE18-PRSG-2
MANIFOLD BLOCK
2 POSITION
3 MPA
COMPRESSED AIR AS PER ISO 8573-1:2010 [7:4:4]

FESTO • RKD135679

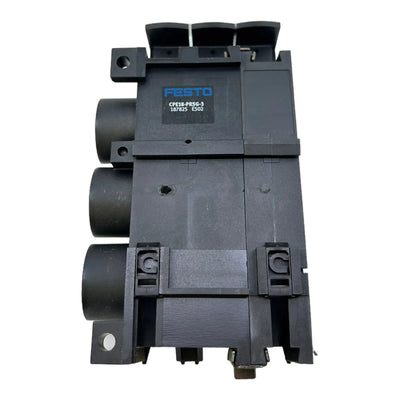

CPE18-PRSG-3
MANIFOLD BLOCK
CPE18 SERIES
3 VALVE POSITIONS MAX.
THROUGH-HOLE MOUNTING TYPE
G1/2 PNEUMATIC CONNECTION
187825

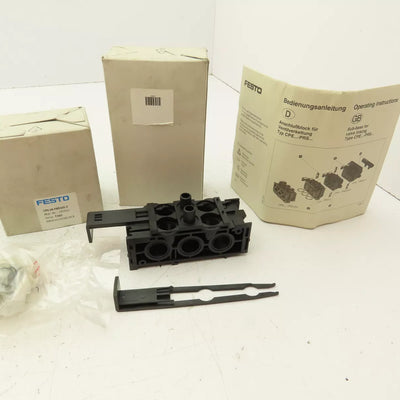

FESTO • DTGEU6994

CPE18-PRSGO-2
MANIFOLD BLOCK
FOR CPE18 VALVES
W/OPEN PRS DUCTS
2 STATIONS

FESTO • RKD135683

CPE18-RP
COVER PLATE
CPE18 SERIES
2 NM MAX. TIGHTENING TORQUE
SCREW-IN MOUNTING TYPE
PA HOUSING MATERIAL
NBR SEALS
544481

FESTO • RKD265361

CPE24-M1H-3GL-3/8
SOLENOID VALVE
CPE SERIES
3/2
CLOSED
MONOSTABLE
ELECTRICAL ACTUATION
2500 L/MIN NOMINAL FLOW RATE
2.5-10 BAR OPERATING PRESSURE
G3/8 PNEUMATIC CONNECTIONS
PNEUMATIC SPRING RESET
24 VDC
(163165)

FESTO • RKD149574

CPE24-M1H-3GL-QS-12
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
3/2-WAY
NORMALLY CLOSED
INTERNAL PILOT AIR
PUSH-IN CONNECTOR (12 MM)
(163181)

FESTO • RKD247579

CPE24-M1H-3GLS-3/8
SOLENOID VALVE
CPE SERIES
24 MM CONSTRUCTION WIDTH
24 VDC
2.5-10 BAR PILOT PRESSURE
PLUG PATTERN ZC
3/2-WAY
NORMALLY CLOSED
EXTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
IP65
(163169)

FESTO • RKD149577

CPE24-M1H-3OL-3/8
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
3/2-WAY
NORMALLY OPEN
INTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
(163164)

FESTO • RKD280604

CPE24-M1H-3OLS-3/8
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
3/2-WAY
NORMALLY OPEN
EXTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
(163168)

FESTO • RKD247582

CPE24-M1H-5/3E-3/8
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/3-WAY
MID-POSITION EXHAUSTED
INTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
(170267)

FESTO • RKD265364

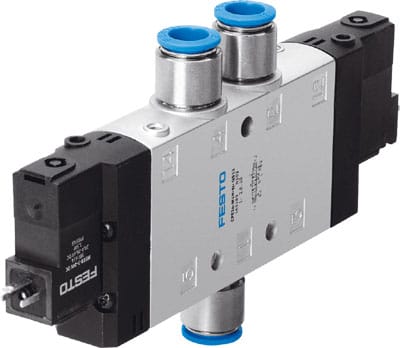

CPE24-M1H-5/3E-QS-10
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/3-WAY
MID-POSITION EXHAUSTED
INTERNAL PILOT AIR
PUSH-IN CONNECTOR (10 MM)
(170273)

FESTO • RKD280607

CPE24-M1H-5/3E-QS-12
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/3-WAY
MID-POSITION EXHAUSTED
INTERNAL PILOT AIR
PUSH-IN CONNECTOR (12 MM)
(170279)

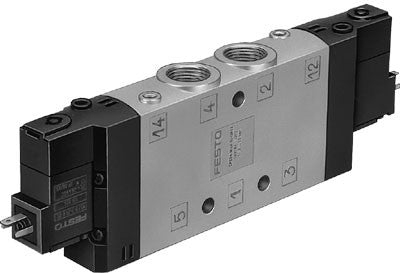

FESTO • RKD247587

CPE24-M1H-5/3G-3/8
SOLENOID VALVE
CPE SERIES
24 VDC
5/3 CLOSED
G3/8
0.25 MPA....1 MPA
3000 L/MIN
CONSTRUCTION WIDTH: 24 MM
ELECTRIC ACTUATION
W/ FLOW CONTROL OPTION
IP65
(170265)

FESTO • RKD280610

CPE24-M1H-5/3G-QS-10
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/3-WAY
MID-POSITION CLOSED
INTERNAL PILOT AIR
PUSH-IN CONNECTOR (10 MM)
(170271)

FESTO • RKD135685

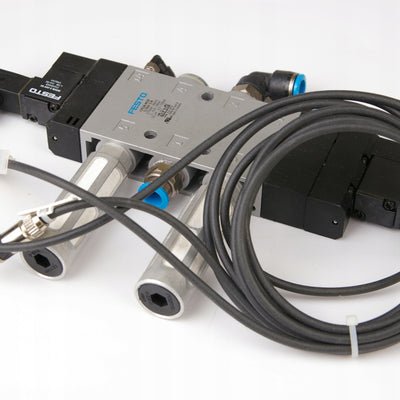

CPE24-M1H-5/3GS-3/8
SOLENOID VALVE
SERIES CPE
PNEUMATIC
5/3
CLOSED
ELECTRICAL ACTUATION
3000 L/MIN NOMINAL FLOW RATE
24V DC OPERATING VOLTAGE
-0.9-10 BAR OPERATING PRESSURE
MECHANICAL SPRING RESET
G3/8 PNEUMATIC CONNECTIONS
(170266)

FESTO • RKD135688

CPE24-M1H-5J-3/8
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/2-WAY
BISTABLE
INTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
(163167)

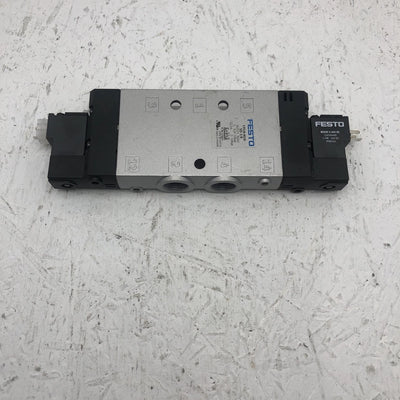

FESTO • RKD135691

CPE24-M1H-5JS-3/8
SOLENOID VALVE
CPE SERIES
24 MM
24 VDC
PLUG PATTERN ZC
5/2-WAY
BISTABLE
EXTERNAL PILOT AIR
G3/8 PNEUMATIC CONNECTION
(163171)
