BECKHOFF • RKD46914

EK1122
ETHERCAT JUNCTION MODULE
2-PORT
220 MA
2 X RJ45 BUS INTERFACE
-25 TO +60 DEGREES C
IP20
(052925)

BECKHOFF • RKD46937

EK1122-0008
BUS COUPLER
ETHERCAT 2-PORT JUNCTION
WITH M8 CONNECTOR
100 MBIT/S DATA TRANSFER RATE
POWER SUPPLY FROM E-BUS
220 MA E-BUS
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD46960

EK1300
ETHERCAT P COUPLER
24 VDC
3 AMP
2000 MA
2 X M8 SOCKET
SHIELDED
SCREW TYPE
P-CODED
0 TO +55 DEGREE C
IP20

BECKHOFF • RKD1353423

EK1310
ETHERCAT P EXTENSION
WITH FEED-IN
1 P-CODED M8 SOCKET
500 V ELECTRICAL ISOLATION

BECKHOFF • RKD622612

EK1322
ETHERCAT P JUNCTION
2-PORT
24 VDC
3 AMP
200 MA
2 X M8 SOCKET
SHIELDED
SCREW TYPE
P-CODED
WITH FEED IN
0 TO +55 DEGREE C
IP20

BECKHOFF • RKD1353446

EK1501
ETHERCAT COUPLER
WITH ID SWITCH
MULTIMODE FIBRE OPTIC
FOR E-BUS TERMINALS (ELXXXX)
24 VDC
10 AMP
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD622635

EK1501-0000
ETHERCAT COUPLER
WITH ID-SWITCH
MULTIMODE FIBER OPTIC
WITH INCREASED SURGE PROTECTION
FOR E-BUS-TERMINALS (ELXXXX)
24 VDC
4096 IDS
100 MBIT/S

BECKHOFF • 14792 bx0032

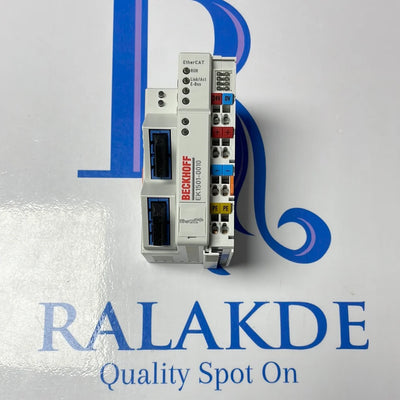

EK1501-0010
ETHERCAT COUPLER WITH ID SWITCH
SINGLE-MODE FIBER OPTIC FOR E-BUS TERMINALS (ELXXXX)
DISTANCE BETWEEN STATIONS UP TO 20 KM
COUPLER
ETHERCAT

BECKHOFF • RKD2564300

EK1521
FIBER-OPTIC JUNCTION
ETHERCAT
SINGLE PORT
100 MBIT/S DATA TRANSFER RATE
350 MA
DIN RAIL MOUNT
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD1511873

EK1521-0010
PLC
1-PORT
ETHERCAT SINGLEMODE
FIBER OPTIC
JUNCTION
DISTANCE BETWEEN STATIONS UP TO 20 KM

BECKHOFF • GREU0231

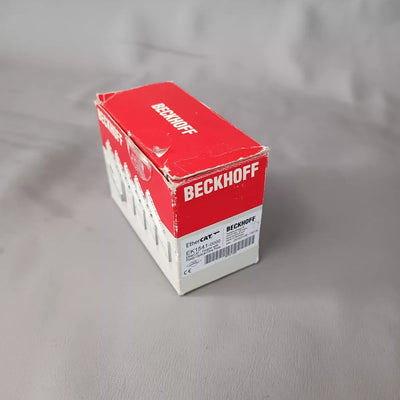

EK1541
ETHERCAT COUPLER
WITH ID SWITCH
PLASTIC OPTICAL FIBER
24 VDC
10 AMP
2000 MA
100 MBIT/S DATA TRANSFER RATES
-25 TO +60 DEGREE C
IP20
(098876)

BECKHOFF • RKD622681

EK1561
1-PORT ETHERCAT PLASTIC OPTICAL FIBRE JUNCTION
200 MA
100 MBAUD
1 X ZS1090-0008 POF PLUG

BECKHOFF • RKD622704

EK1814
ETHERCAT COUPLER
WITH INTEGRATED DIGITAL INPUTS/OUTPUTS
24 VDC.
1000 MA
100 MBIT/S DATA TRANSFER RATES
2 X RJ45
-25 TO +60 DEGREE C
IP20

BECKHOFF • DTGEU14119

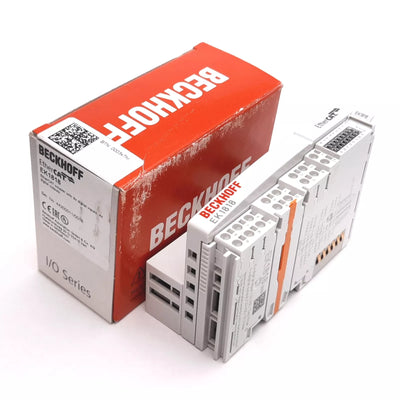

EK1818
ETHERCAT COUPLER
FOR E-BUS TERMINALS
(ELXXXX) WITH INTEGRATED I/OS
8 DIGITAL INPUT / 24 V DC / FILTER 3.0 MS / TYPE 3
4 DIGITAL OUTPUT / 24 V DC / 0.5 A / 1-WIRE SYSTEM
E-BUS POWER SUPPLY
CURRENT MAX 1 AMP

BECKHOFF • RKD488352

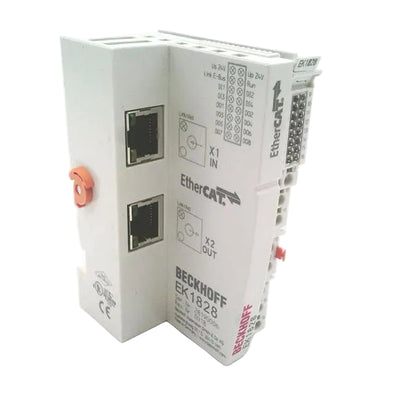

EK1828
ETHERCAT COUPLER
WITH INTEGRATED DIGITAL INPUTS/OUTPUTS
4 INPUTS
8 OUTPUTS
100 MBIT/S DATA TRANSFER RATES
2 X RJ45
24 VDC
1000 MA
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD46986

EK1828-0010
ETHERCAT COUPLER
8 CHANNEL
WITH INTEGRATED DIGITAL OUTPUTS
1-WIRE SYSTEM
24 VDC
0.5 AMP
100 MBIT/S DATA TRANSFER RATES
-25 TO +60 DEGREE C
IP20

BECKHOFF • SREU5351

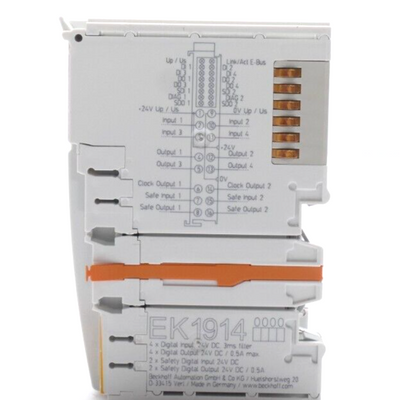

EK1914
ETHERCAT COUPLER
WITH INTEGRATED DIGITAL STANDARD AND SAFETY I/OS
2-WIRE
0.5 AMP
20 MA
ETHERCAT PROTOCOL
DIN RAIL MOUNTING
HORIZONTAL INSTALLATION
IP20

BECKHOFF • RKD47009

EK1960-0000
TWINSAFE COMPACT CONTROLLER
FOR ETHERCAT TERMINALS WITH INTEGRATED I/OS
1-WIRE
20 INPUTS
24 OUTPUTS
24 VDC
2 AMP
80 MA
HORIZONTAL INSTALLATION
IP20

BECKHOFF • RKD2564333

EK1960-2600
TWINSAFE COMPACT CONTROLLER FOR ETHERCAT TERMINALS (ELXXXX) WITH INTEGRATED I/OS:– SAFE DIGITAL INPUTS 24 V DC– SAFE DIGITAL OUTPUTS 24 V DC
2 A
1-WIRE SYSTEM– SAFE DIGITAL OUTPUTS
POTENTIAL-FREE MAKE CONTACTSSAFETY PROTOCOL: TWINSAFE/SAFETY OVER ETHER

BECKHOFF • RKD1353469

EK5100
CANOPEN BUS COUPLER
FOR ETHERCAT TERMINALS (ELXXXX)

BECKHOFF • 16180 BX0013

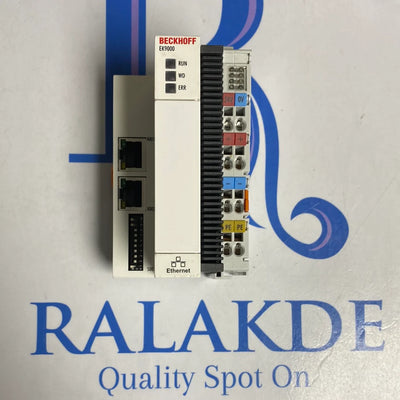

EK9000
MODBUS TCP/UDP BUS COUPLER
FOR ETHERCAT TERMINALS
100MBIT/S
4AMP MAX
24VDC
4.1HW

BECKHOFF • RKD47057

EK9160
IOT BUS COUPLER
FOR ETHERCAT TERMINALS (ELXXXX)
100 MBIT/S
2 X RJ45 (SWITCHED)
24 V DC (-15 %/+20 %)
150 MA + (TOTAL E-BUS CURRENT)/4
MAX. 24 V DC/MAX. 10 A
500 V

BECKHOFF • RKD1353492

EK9300
BUS COUPLER
PROFINET RT
FOR ETHERCAT TERMINALS
24 VDC
120 MA
100 MBIT/S DATA TRANSFER RATE
2 X RJ45 INTERFACE
-25 TO +60 DEGREE C
IP20

BECKHOFF • RKD1397466

EK9300-1005
BUS COUPLER
PROFINET RT
100 M/B
120 MA
2 X RJ45
4 AMP
24 VDC POWER SUPPLY
