FESTO PUN-14X2-SW

PUN14X2SW

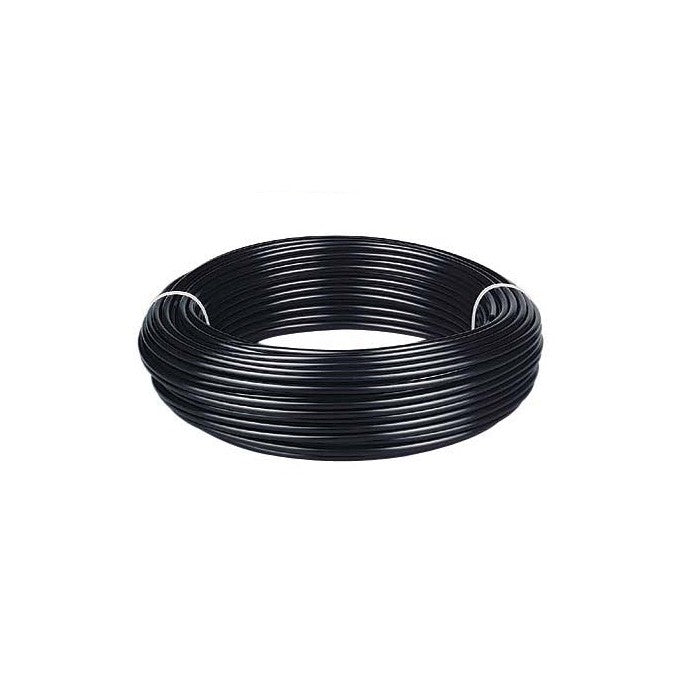

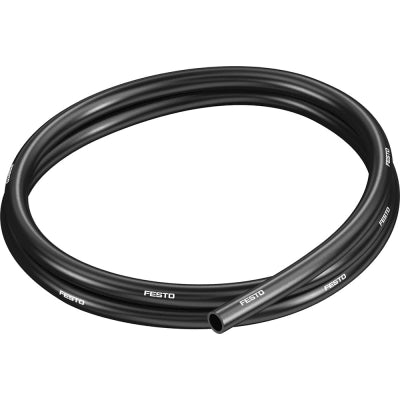

PLASTIC TUBING
MATERIAL OF TUBING: TPE-U
APPROX. 50 m
OUTSIDE DIAMETER: 14 mm
INSIDE DIAMETER: 9.8 mm
OPERATING PRESSURE TEMP. RANGE: -0.095 MPa ... 0.7 MPa / -0.95 bar ... 7 bar / -13.775 psi ... 101.5 psi
OPERATING PRESSURE TEMP. DEPENDENT: -0.095 MPa ... 1 MPa / -0.95 bar ... 10 bar / -13.775 psi ... 145 psi
SUITABLE FOR ENERGY CHAINS
PUSH-IN PNEUMATIC CONNECTION OUTER DIAMETER OF 14 mm
SHORE HARDNESS: D52 +/-3
COLOR: BLACK
