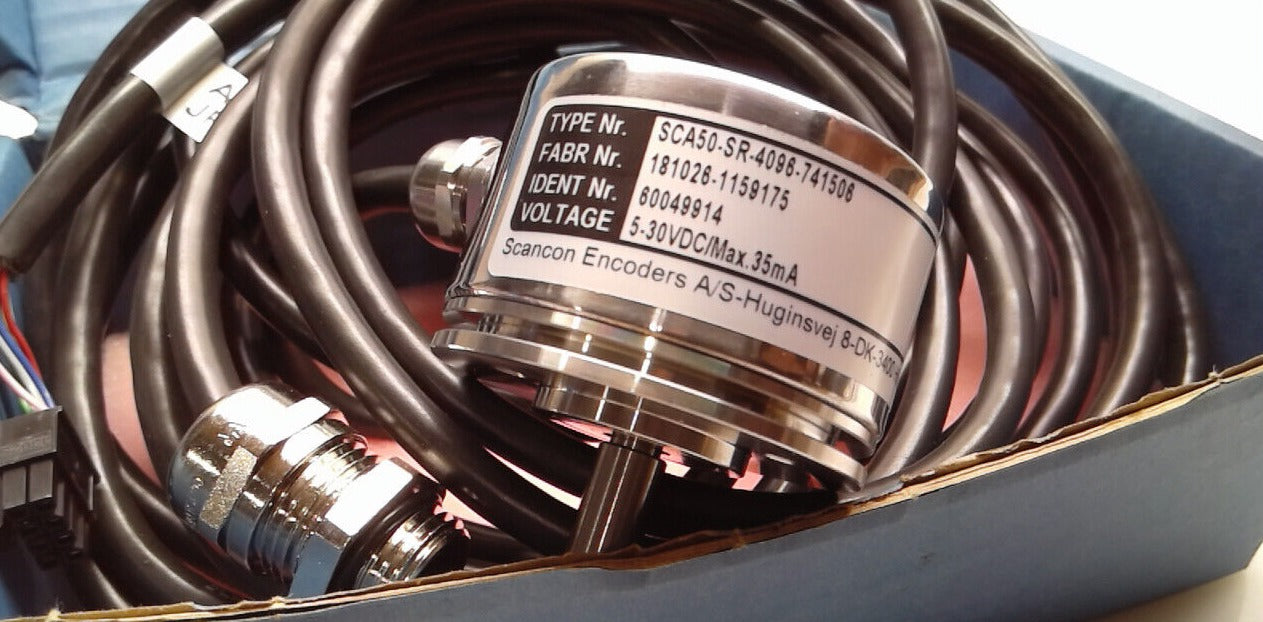

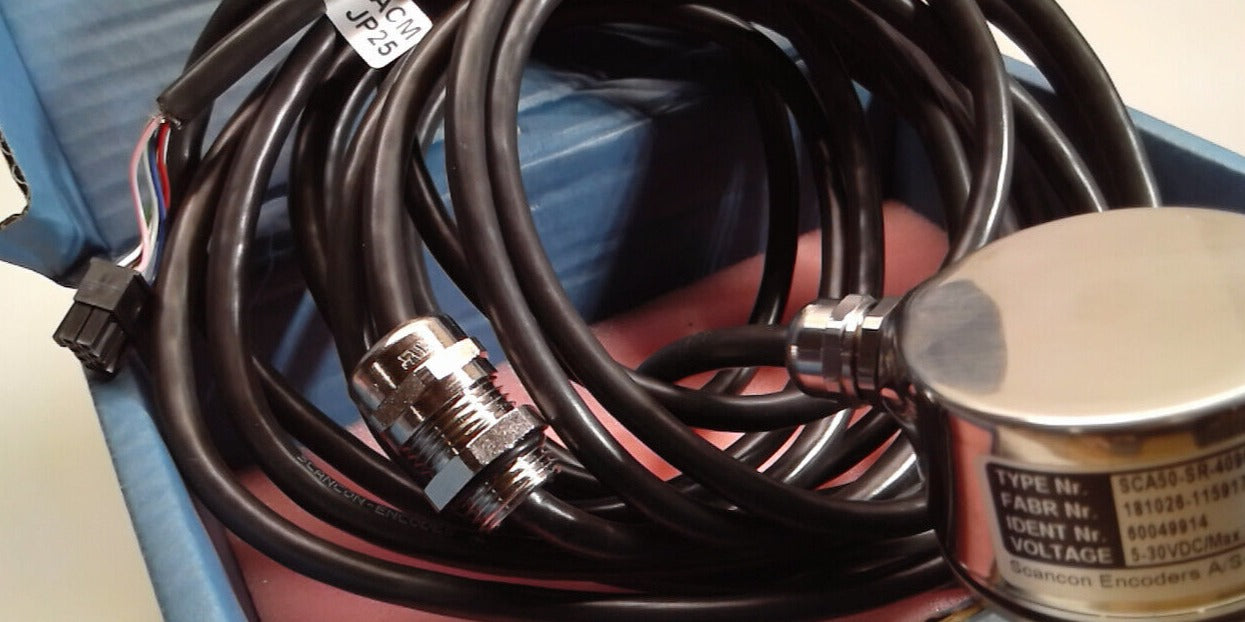

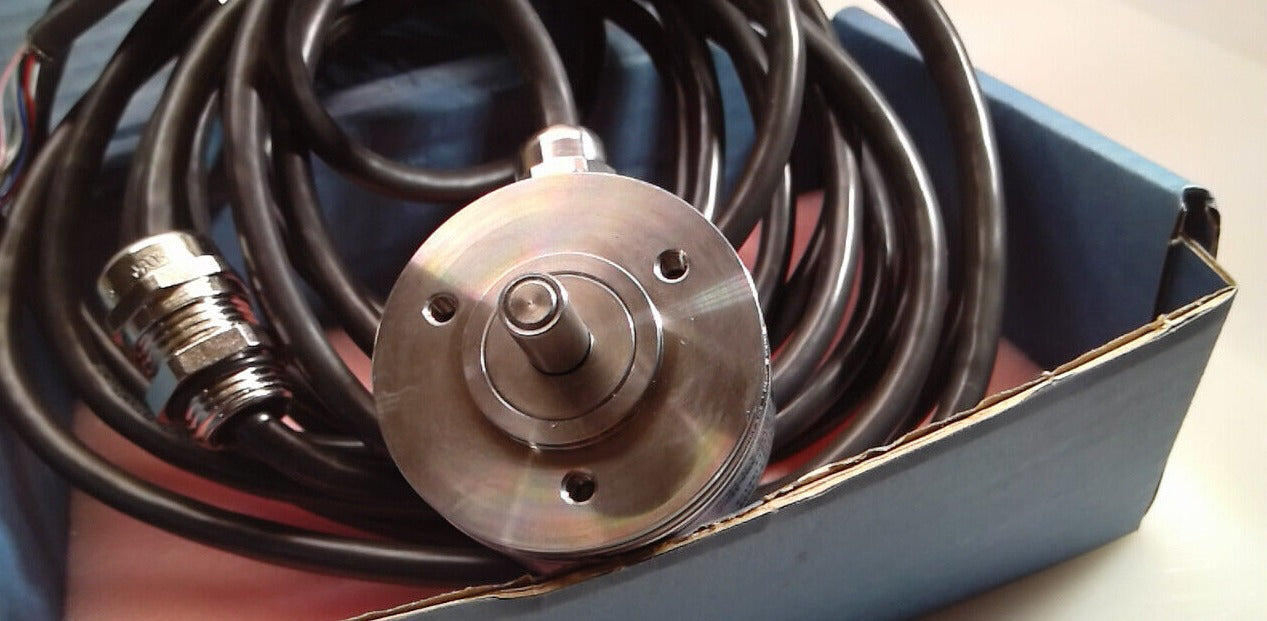

SCANCON ENCODER SCA50-SR-4096-741506

SCA50-SR-4096-741506

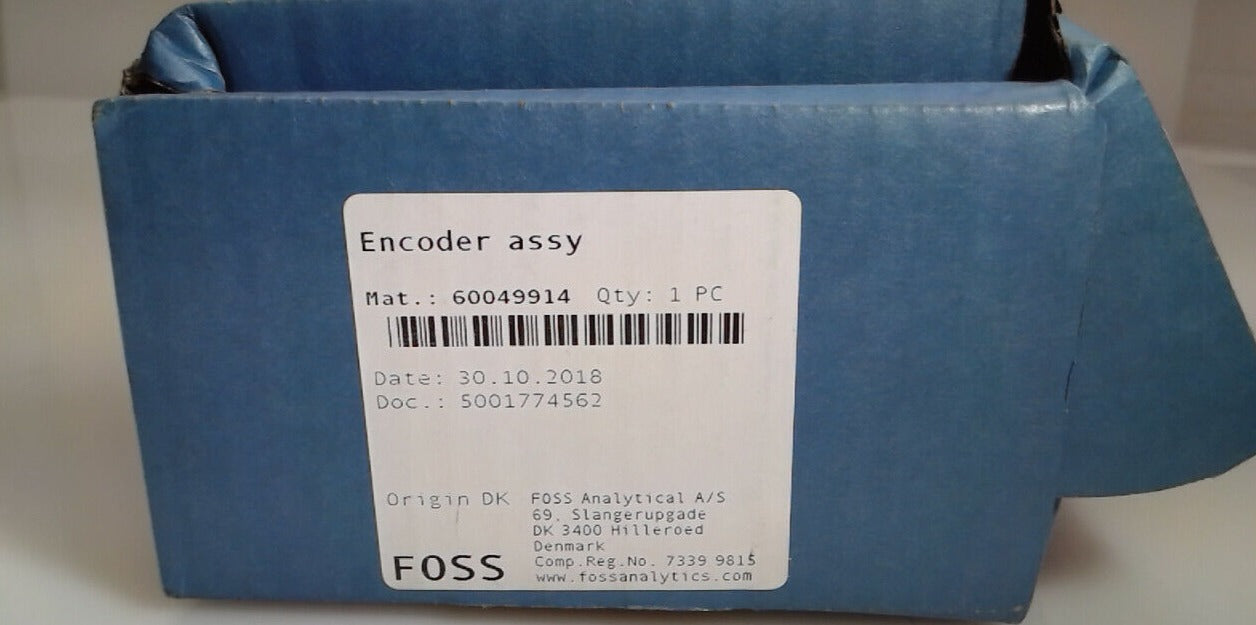

60049914
ENCODER
SUPPLY VOLTAGE; 4.5 Vdc min. - 30 Vdc max.
OUTPUT VOLTAGE; LOW; 500 mV max at 10 mA/HIGH; (V - 0,6) at -10mA (V - 1,3) at -25mA
OUTPUT CURRENT; 30 mA max. load per output channel
FREQUENCY RESPONSE; 300 kHz max
WEIGHT; ENCODER; ˜235 gr(8,29 oz)/CABLE; 60 gr/meter(2,12 oz/meter)
OPERATING TEMP/STORAGE TEMP.; -40° - +85°C
SHOCK; 100 G/11 ms
VIBRATION; 10-2000Hz/10 G
HUMIDITY; 98% RH without condensation
CABLE; 9-PIN M23 - 8 LEADS(0,14 mm, 26 AWG)TWISTED PAIRS; SHIELDED
