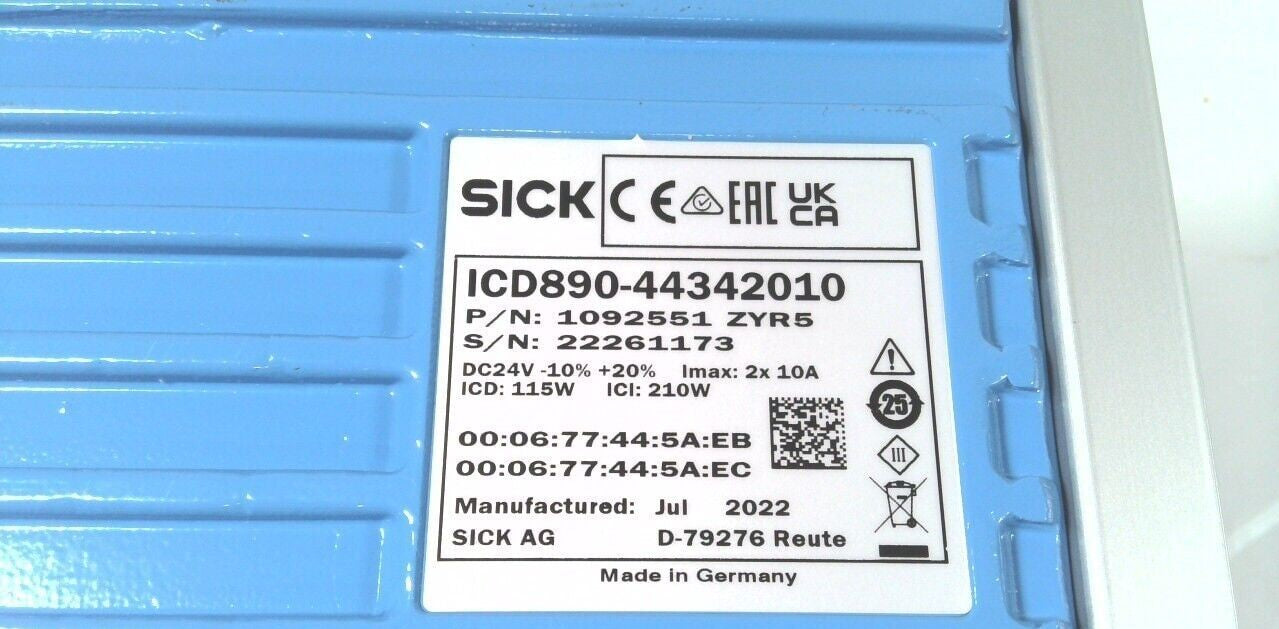

SICK ICD890-44342010

ICD89044342010
IMAGE-BASED CODE READERS
FUNCTION: LINE CAMERA w/ INTEGRATED 1D/2D CODE DECODER
OPTICAL FOCUS: DYNAMIC FOCUS CONTROL OR CONSTANT FOCUS
SENSOR: CMOS LINE SENSOR
SENSOR RESOLUTION: STANDARD
PROCESSOR: HIGH PERFORMANCE
LINE FREQUENCY: MAX. 50 kHz
SUPPLY VOLTAGE: 24 V DC, -10% +20%, CURRENT CONSUMPTION: 10 A

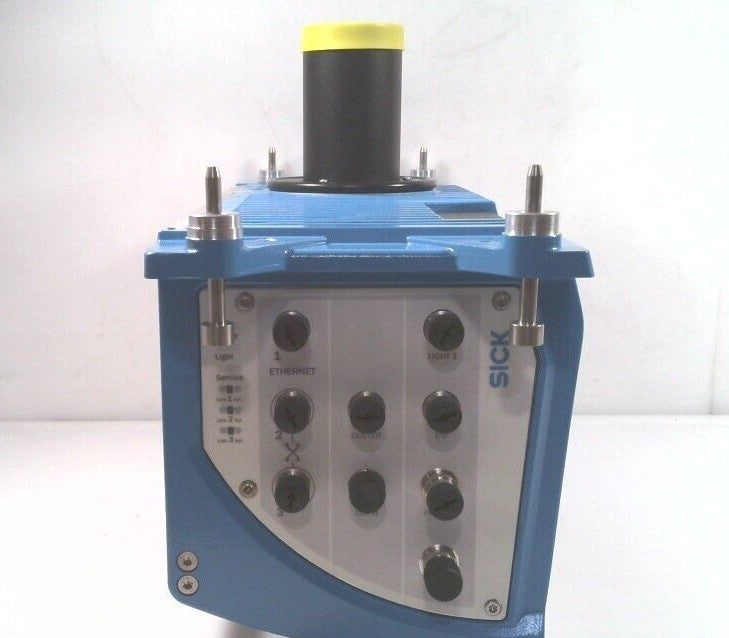

9x M12 CONNECTORS, 1x USB CONNECTOR

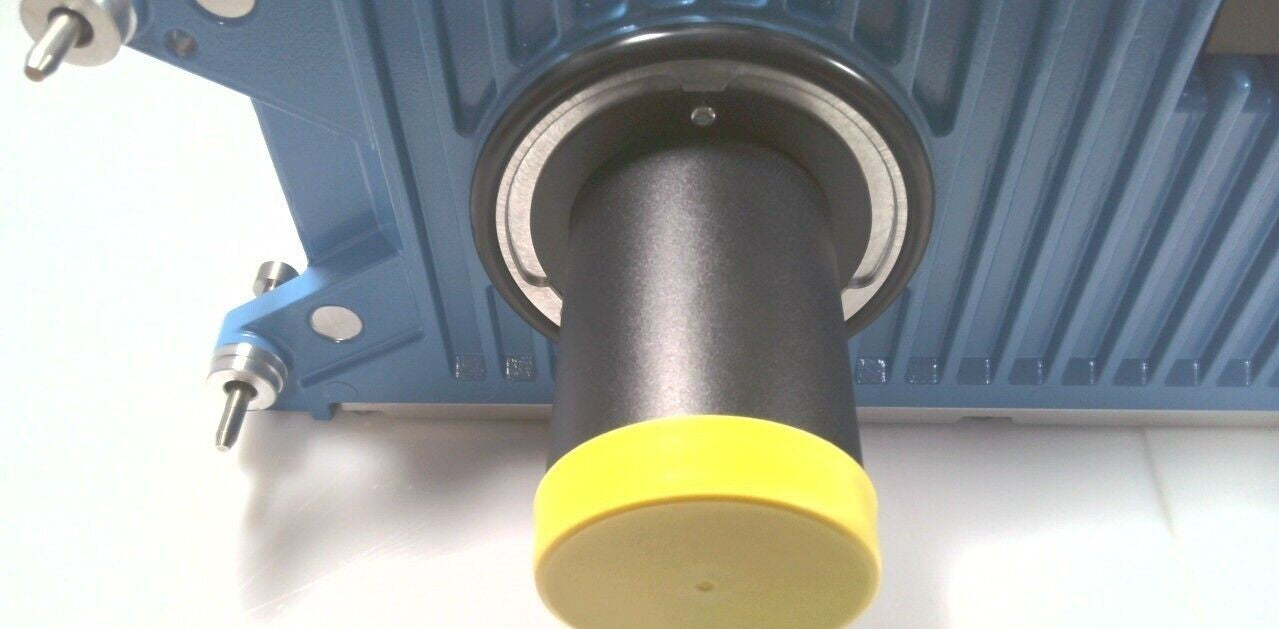

LENS: INTEGRATED, 95 mm
READING DISTANCE: 1,550 mm...3,600 mm¹
MATERIAL: ALUMINUM DIE CAST
DIMENSIONS: (L) 486.6 mm x (W) 300 mm x (H) 179 mm
