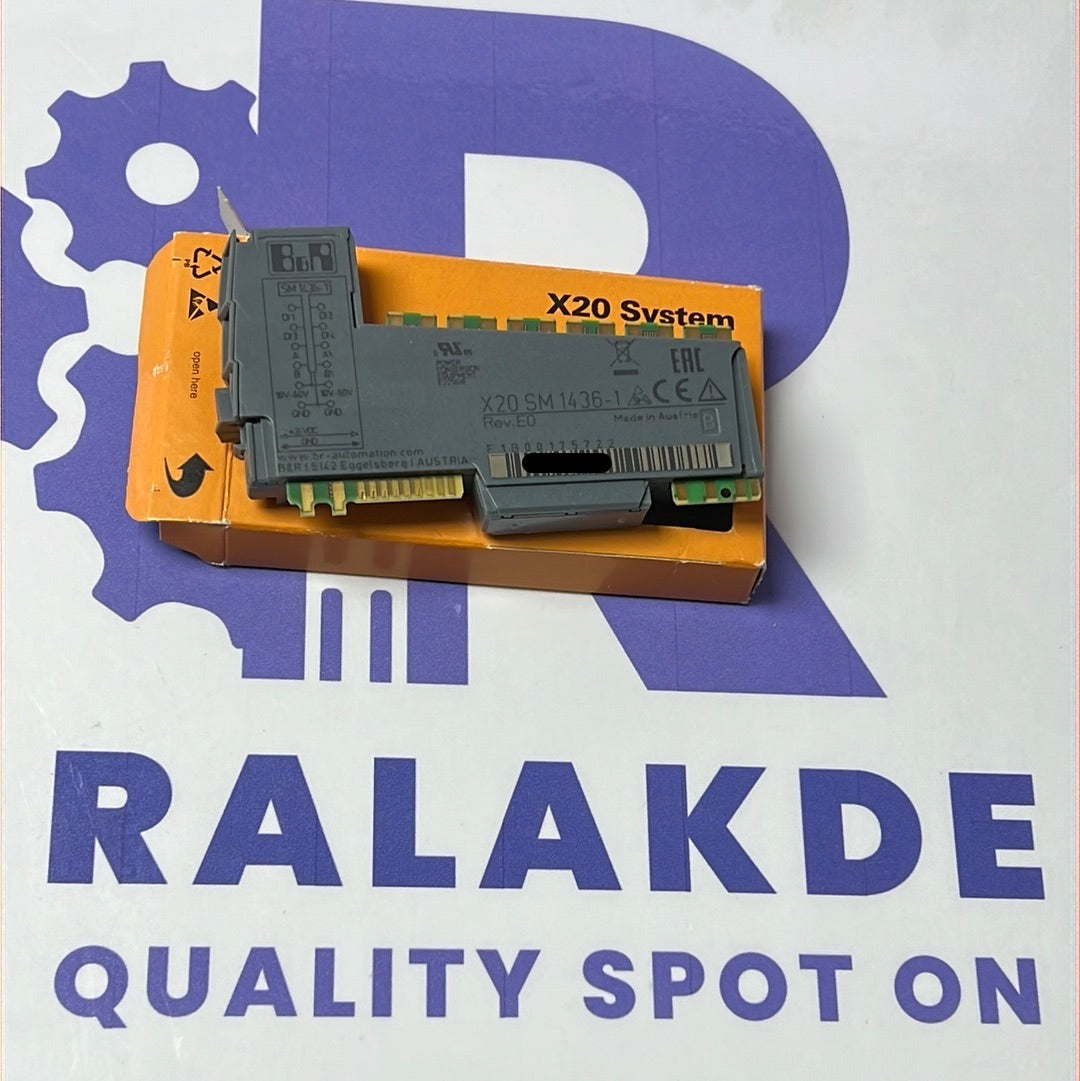

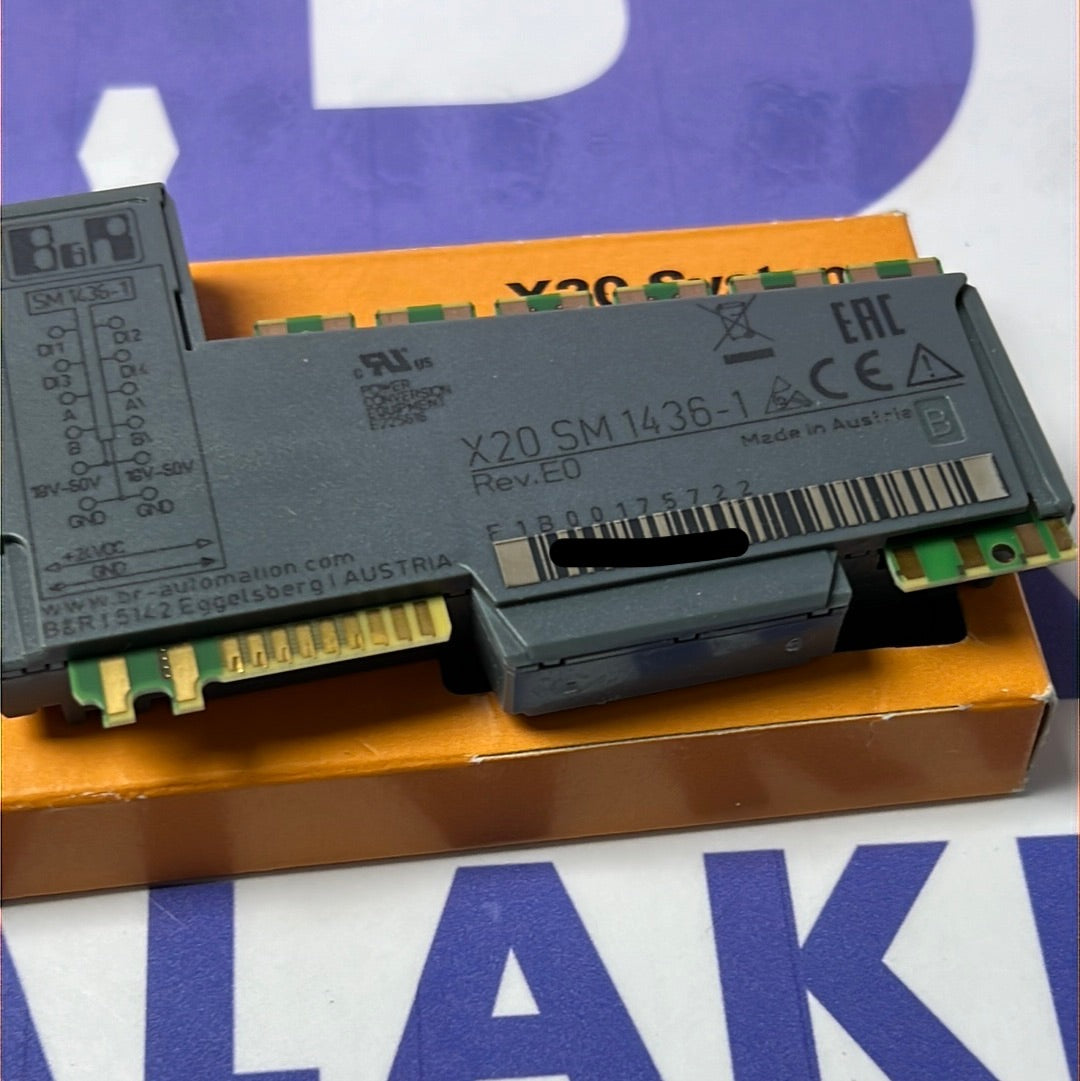

B&R X20SM1436-1

X20SM14361

X20 SM 14361

1 stepper motor, 24 to 48 VDC ±25%, 2.5 A (3.5 A peak)
Resolution of current values at 1%
Boost, nominal and holding current separately configurable
Sensorless, load-dependent current control
Integrated motor detection
256 micro-steps per step
Stall detection
Complete integration in Automation Studio and CNC applications
4 inputs, 24 VDC, adjustable for ABR incremental encoders
Open circuit detection for push-pull encoders
Input ramp limit at max. 10 A
Function model "Ramp" based on CANopen communication profile DS402
