Industrial Automation Products

B&R • GMUK11232

X20SC0402
4 safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
2 safe digital outputs, output type B with 0.2 A, source circuit
Integrated output protection

B&R • 15944

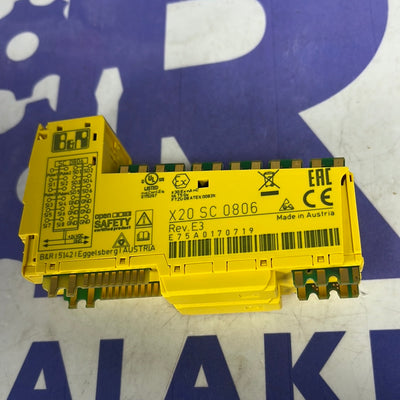

X20 SC 0806

8 safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
6 safe digital outputs, output type B with 0.2 A, source circuit
Integrated output protection
The module is equipped with 8 safe digital inputs and 6 safe digital outputs. It is designed for a nominal voltage of 24 VDC.

B&R • 16382

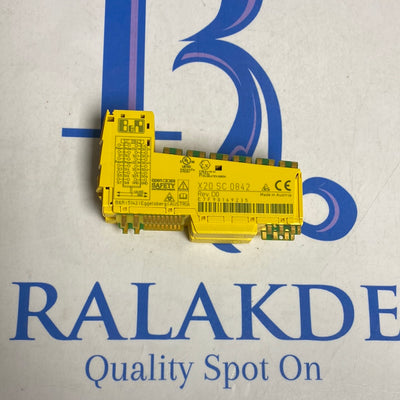

X20SC0842
DIGITAL MIXED MODULE
8 SAFE TYPE A DIGITAL INPUTS
4 PULSE OUTPUTS
24 VDC
4 SAFE TYPE A DIGITAL OUTPUTS
3 A
OSSD <500 S
2 SAFE TYPE B2 DIGITAL OUTPUTS
50 MA

B&R • 12783

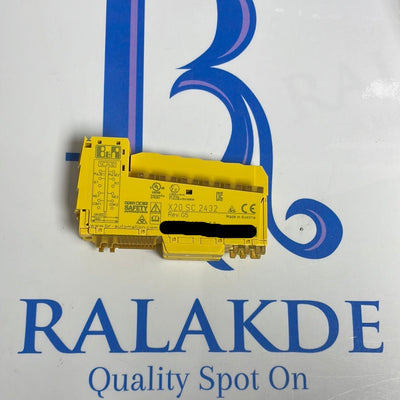

X0SC2432
DIGITAL MIXED MODULE
2 SAFE DIGITAL INPUTS
2 PULSE OUTPUTS
2 SAFE RELAY OUTPUTS
6 AMP
24 VDC
0.26 W
1.15 W

B&R • 14999

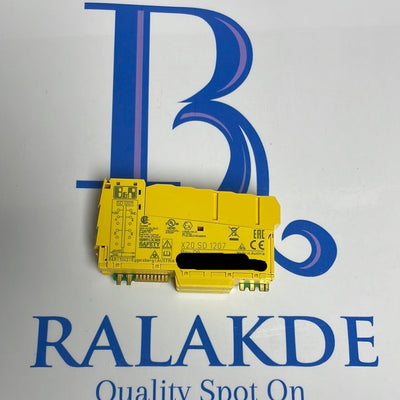

X20SD1207
POSITIONING MODULE
X20
SAFE COUNTER
4XL
24 V
10 K HZ

B&R • 14677

X20SI4100
INPUT MODULE
24 V DC
4 DIGITAL INPUTS
4 PULSE OUTPUTS
SINK CIRCUIT
SOFTWARE INPUT FILTER CONFIGURABLE FOR EACH CHANNEL

B&R • GMUK11231

X20SI4110
4 safe digital inputs
4 pulse outputs
Sink circuit
Software input filter configurable for each channel
Single-width module

B&R • 14885 BX0770

X20 SI 8110

X20 SL 8110

X20 SI8110

8 SAFE TYPE A DIGITAL INPUTS
4 PULSE OUTPUTS
24 VDC

B&R • 12802

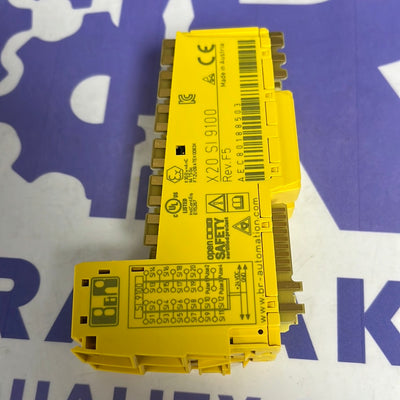

X20SI9100

X20 SI 91000

X20SL9100

X20 SL9100
INPUT MODULE
DIGITAL
20 SAFE INPUT
4 PULSE OUTPUT
SINK CIRCUIT
1.4W

B&R • 16329

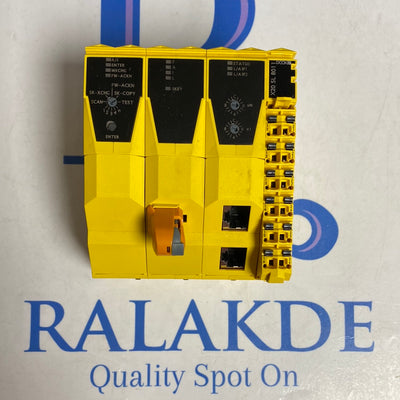

B&R X20 SL 8011

SafeLOGIC controllers handle all central tasks within a safety-related application.
Three different functional areas exist here.
The configuration management system monitors
the entire safety-related configuration of the application.
When replacements are needed, the parameter management system makes sure that newly installed modules are assigned the correct parameters that apply to the application. Lastly, SafeLOGIC handles the actual safety-related execution of the application program.

B&R • 14965

X20SL8101
SAFETY CONTROLLER
FAIL-SAFE / SAFETY PLC
CPU PROCESSOR MOBILE MODULE
WITH X2X LINK
ATEX COMPLIANT
131KBYTES
WITH 2 X RJ45 CONNECTORS
UP TO 280 SAFE NODES
24 VDC
DIN RAIL MOUNTING
RATED FOR 0...+60C AMBIENT

B&R • 20527

X20 SL 8110 B&R
openSAFETY manager for up to 280 SafeNODEs
Flexible programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (safe option)
Parameter and configuration management
SL8110

X20SL8110

B&R • 14906

B&R • GMUK11229

X20SLX402
openSAFETY manager for up to 10 SafeNODEs
Flexible programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (safe option)
Parameter and configuration management
4 safe digital inputs, sink circuit
4 pulse outputs
Software input filter configurable for each channel
2 safe digital outputs, output type B with 0.2 A, source circuit
Integrated output protection

B&R • GMUK11230

X20SLX811
openSAFETY manager for up to 10 SafeNODEs
Flexibly programmable using Automation Studio / SafeDESIGNER
Innovative management of safe machine options (SafeOPTION)
Parameter and configuration management
8 safe digital inputs
4 pulse outputs
Sink circuit
Software input filter configurable for each channel

B&R • 12793 BX0219

SAFETY CONTROLLER
I/O
24 VDC
20 DIGITAL INPUTS
4 PULSE OUTPUTS
LED INDICATORS
SAFELOGIC-X TECHNOLOGY
-40 TO +85 DEGREES C
IP20

B&R • SREU2916

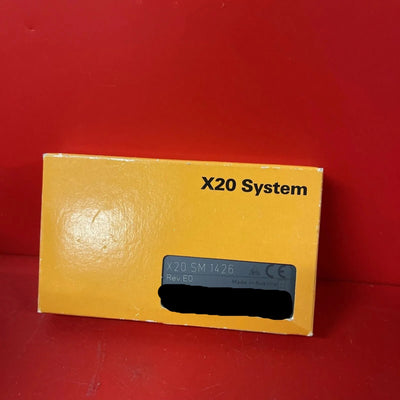

X20SM1426
STEPPER MOTOR MODULE
X20
1X 1A
24V
4X DI

B&R • 15542

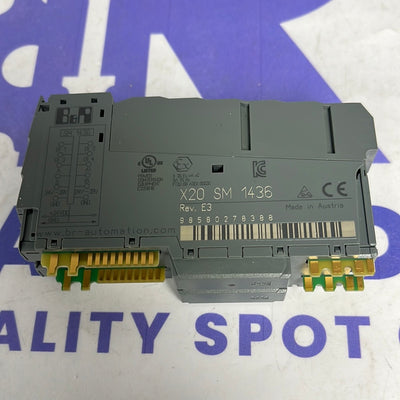

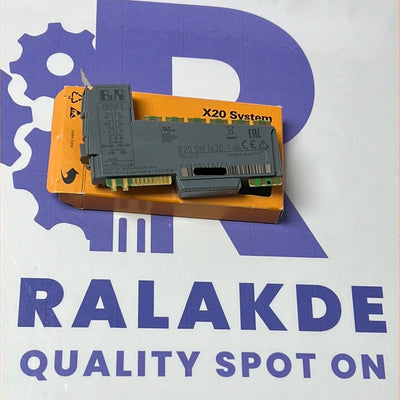

X20 SM 1436
STEPER MOTOR MODULE
3 AMP
24-39 V DC
38.5 KHZ/PWM
4 INPUTS
24 V DC
256 MICROSTEPS
CONFIGURABLE

B&R • 16701

X20SM14361

X20 SM 14361

1 stepper motor, 24 to 48 VDC ±25%, 2.5 A (3.5 A peak)
Resolution of current values at 1%
Boost, nominal and holding current separately configurable
Sensorless, load-dependent current control
Integrated motor detection
256 micro-steps per step
Stall detection
Complete integration in Automation Studio and CNC applications
4 inputs, 24 VDC, adjustable for ABR incremental encoders
Open circuit detection for push-pull encoders
Input ramp limit at max. 10 A
Function model "Ramp" based on CANopen communication profile DS402

B&R • GMUK10541

X20SM14441
1 stepper motor, 24 to 48 VDC ±25%, 5 A (10 A peak)
Resolution of current values at 1%
Boost, nominal and holding current separately configurable
Sensorless, load-dependent current control
Integrated motor detection
256 microsteps per step
Stall detection
Complete integration in Automation Studio and CNC applications
R+ and R- also configurable as digital inputs
Open circuit detection with 5 V differential ABR interface
Input ramp limit at max. 12.5 A
Function model "Ramp" based on CANopen communication profile DS402

B&R • 15685

X20SM14461
X20 STEPPER MOTOR
24-48VDC +25%
5A (10A PEAK)
256MICROSTEPS PER STEP
STALL DETECTION
4INPUTS
INPUT RAMP LIMIT AT MAX: 12.5A

B&R • 15924

2 SAFE DIGITAL OUTPUTS WITH 0.5A
SOURCE CIRCUIT
OUTPUT TYPE A
CURRENT MONITORING
OPEN CIRCUIT DETECTION
INTEGRATED OUTPUT PROTECTION

B&R • 15925

2 SAFE DIGITAL OUTPUTS WITH 2A
SOURCE CIRCUIT
OUTPUT TYPE A
CURRENT MONITORING
OPEN CIRCUIT DETECTION
INTEGRATED OUTPUT PROTECTION

B&R • 15778

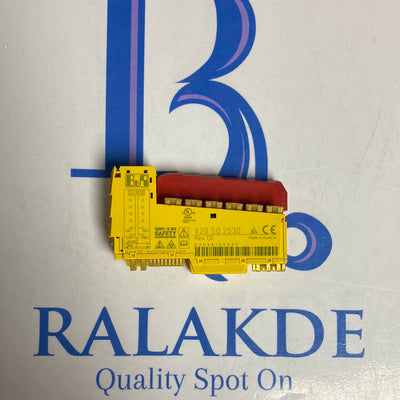

X20 SO 2530

X20 S0 2530
OUTPUT MODULE
6 AMP
24 VDC
2 SAFE RELAY OUTPUTS
NORMALLY OPEN CONTACT
SINGLE CHANNEL ISOLATED OUTPUTS
